Schneider BMH0701P02A1A AC Servo Motor
Neu
Auf Lager2 EinheitenVersandbereit
899,99$
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

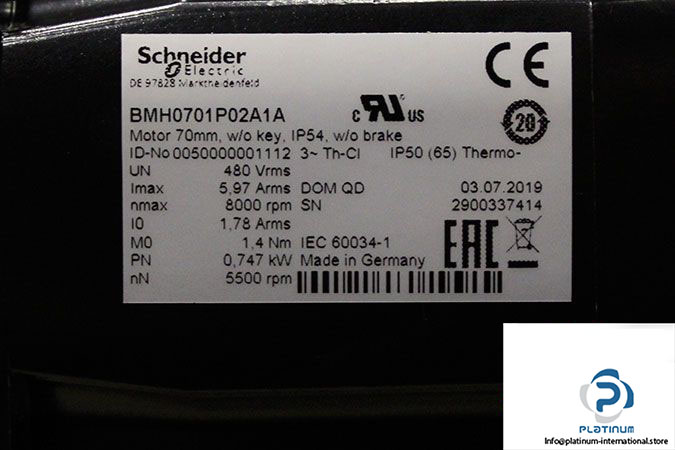

Manufacturer: Schneider Electric, Elau
Type: AC Servo Motors
Model: BMH0701P02A1A
Stall Torque [Nm]: 1.4
Stall Current [A]: 1.78
Max Current [A]: 5.97
Rated Voltage [V]: 480
Rated Power [kW]: 0.747
Rated Speed [rpm]: 5500
Max Speed [rpm]: 8000
Number of Poles: 10
Shaft End: Smooth shaft
Flange Size [mm]: 70
Shaft Diameter [mm]: 11
Shaft Length [mm]: 23
Protection Class [IP]: 54
Thermal Class: F
Weight [kg]: 1.6
