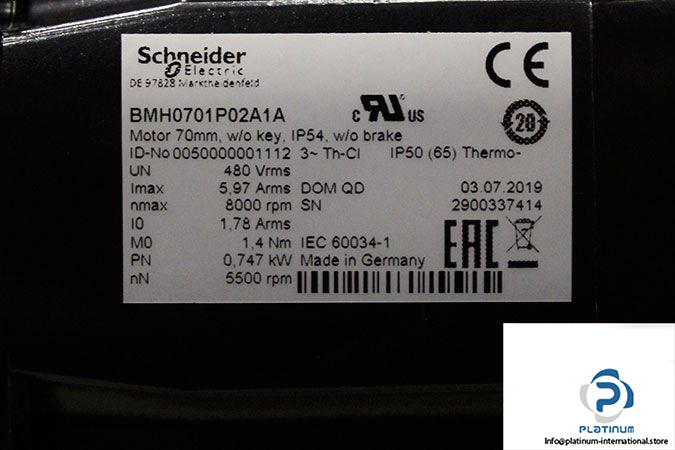

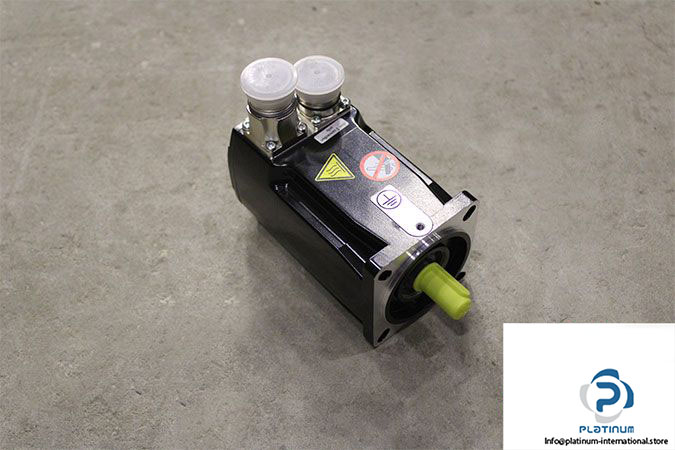

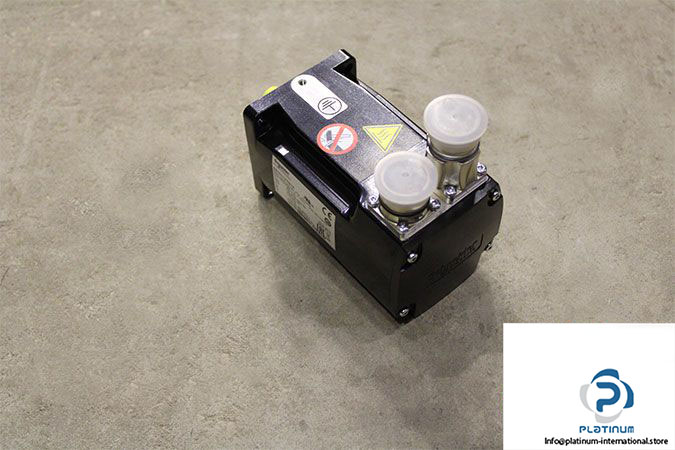

Schneider BMH0701P02A1A AC Servo Motor

Manufacturer: Schneider Electric, Elau

Type: AC Servo Motors

Model: BMH0701P02A1A

Stall Torque [Nm]: 1.4

Stall Current [A]: 1.78

Max Current [A]: 5.97

Rated Voltage [V]: 480

Rated Power [kW]: 0.747

Rated Speed [rpm]: 5500

Max Speed [rpm]: 8000

Number of Poles: 10

Shaft End: Smooth shaft

Flange Size [mm]: 70

Shaft Diameter [mm]: 11

Shaft Length [mm]: 23

Protection Class [IP]: 54

Thermal Class: F

Weight [kg]: 1.6
