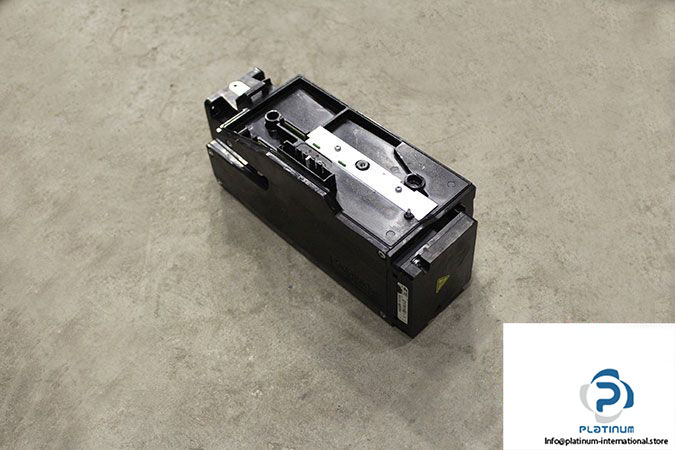

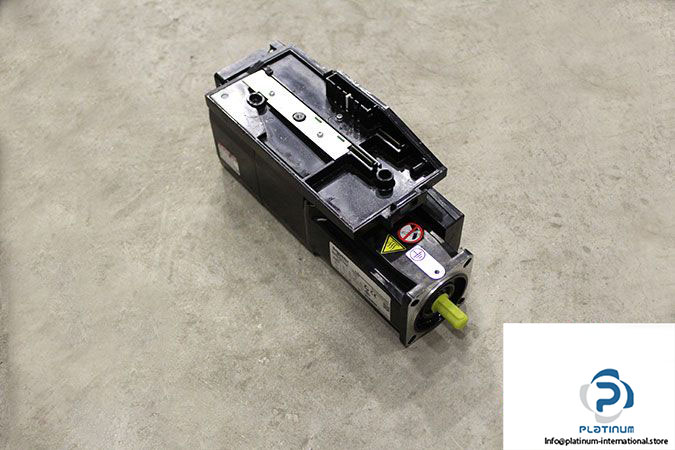

Schneider BMI0702T06A Servo Motor
Gebraucht
Auf Lager2 EinheitenVersandbereit
499,99$
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

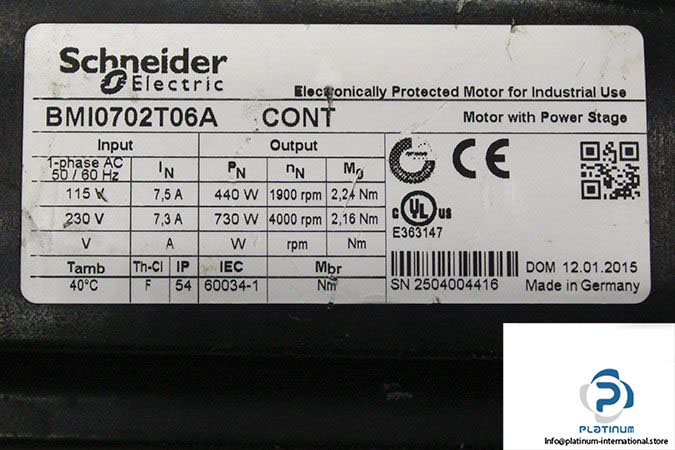

Manufacturer: Schneider Electric, Elau
Type: Servo Motors
Model: BMI0702T06A
Rated Voltage [V]: 115/230
Rated Current [A]: 7.5/7.3
Stall Torque [Nm]: 2.24/2.16
Rated Power [W]: 440/730
Rated Speed [rpm]: 1900/4000
Max Speed [rpm]: 8000
Ambient Temperature [°C]: 40
Frequency [Hz]: 50/60
Flange Size [mm]: 70
Shaft Diameter [mm]: 11
Shaft Length [mm]: 23
Protection Class [IP]: 54
Duty: S1 Cont.
Insulation Class: F
Weight [kg]: 4.09
