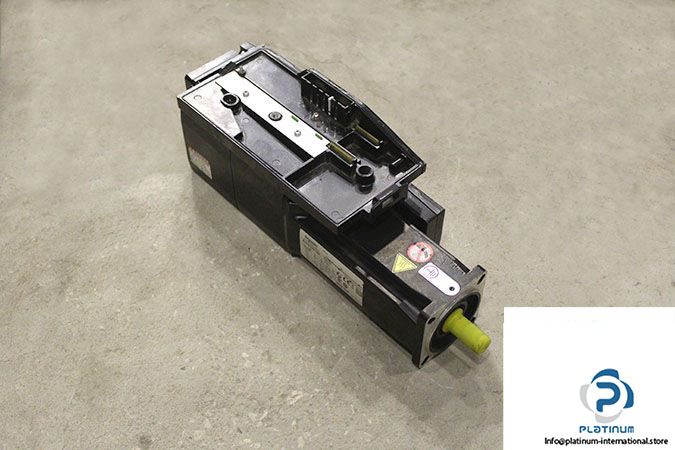

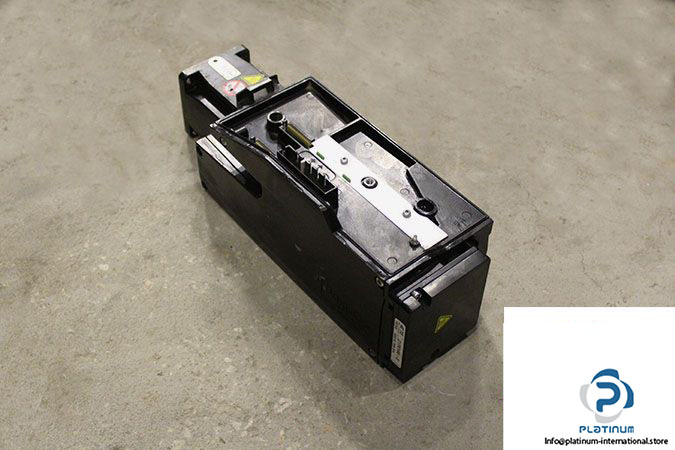

Schneider BMI0703P16A Servo Motor
Gebraucht
Auf Lager3 EinheitenVersandbereit
1 550,00$
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

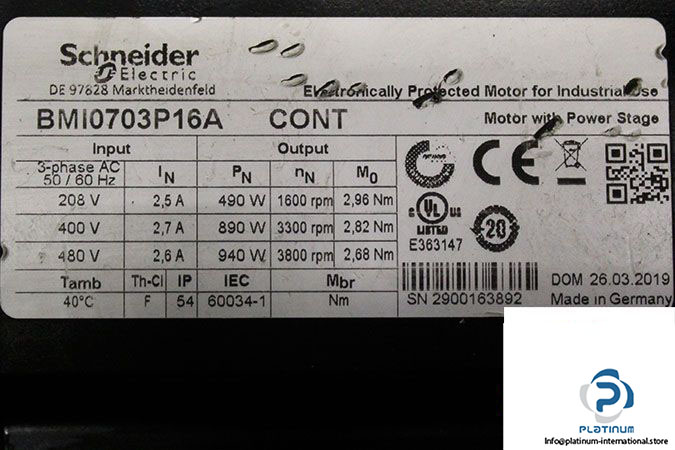

Manufacturer: Schneider Electric, Elau
Type: Servo Motor
Model: BMI0703P16A
Supply Voltage [V]: 208-400-480
Rated Current [A]: 2.5-2.7-2.6
Rated Power [W]: 490-890-940
Rated Speed [rpm]: 1600-3300-3800
Max. Speed [rpm]: 8000
Stall Torque [Nm]: 2.96-2.82-2.68
Ambient Temperature [°C]: 40
Frequency [Hz]: 50/60
Flange Size [mm]: 70
Shaft Diameter [mm]: 14
Shaft Length [mm]: 30
Protection Class [IP]: 54
Thermal Class: F
Weight [kg]: 4.885
