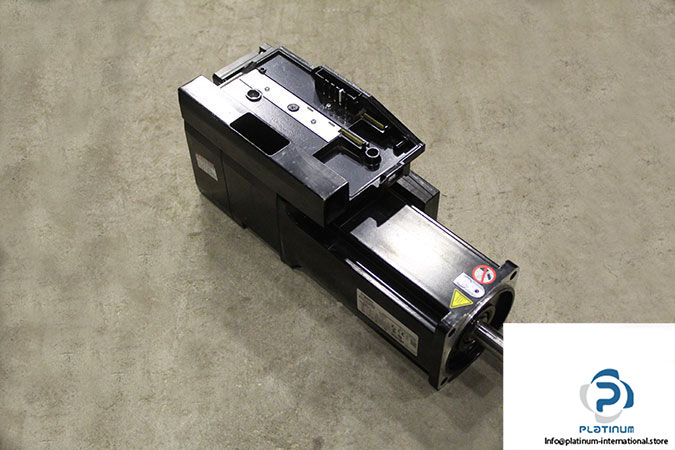

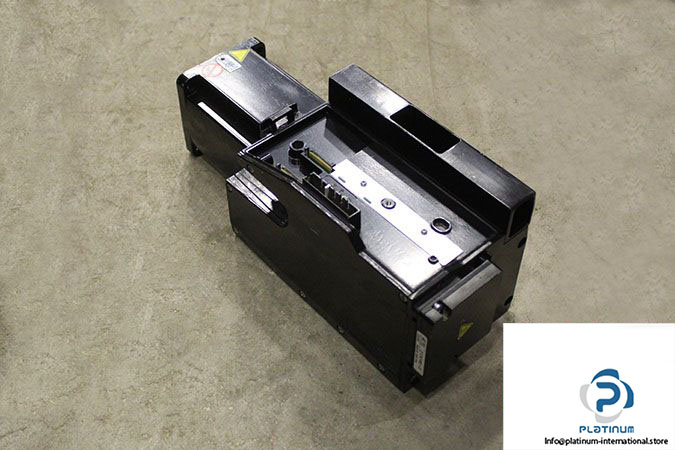

Schneider BMI1003P22F Servo Motor
Gebraucht
Auf Lager1 EinheitVersandbereit
1 288,88$
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
Manufacturer: Schneider Electric, Elau
Type: Servo Motors

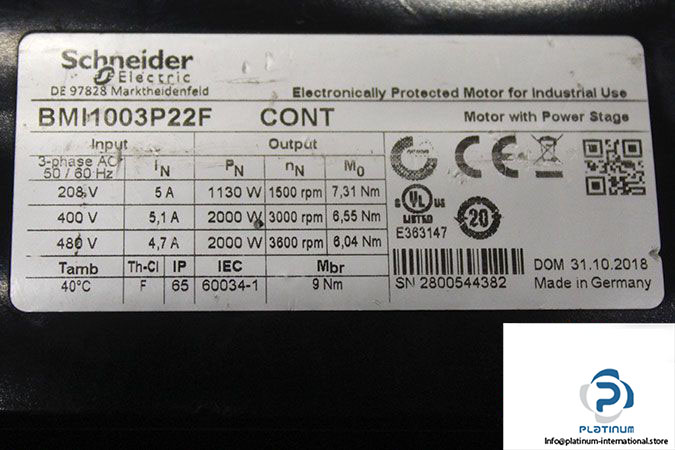

Model: BMI1003P22F
Rated Voltage [V]: 208/400/480
Rated Current [A]: 5/5.1/4.7
Stall Torque [Nm]: 7.31/6.55/6.04
Rated Power [W]: 1130/2000/2000
Rated Speed [rpm]: 1500/3000/3600
Max Speed [rpm]: 6000
Holding Torque [Nm]: 9
Ambient Temperature [°C]: 40
Frequency [Hz]: 50/60
Shaft Diameter [mm]: 19
Shaft Length [mm]: 40
Protection Class [IP]: 65
Duty: S1 Cont.
Insulation Class: F
Weight [kg]: 10.725
