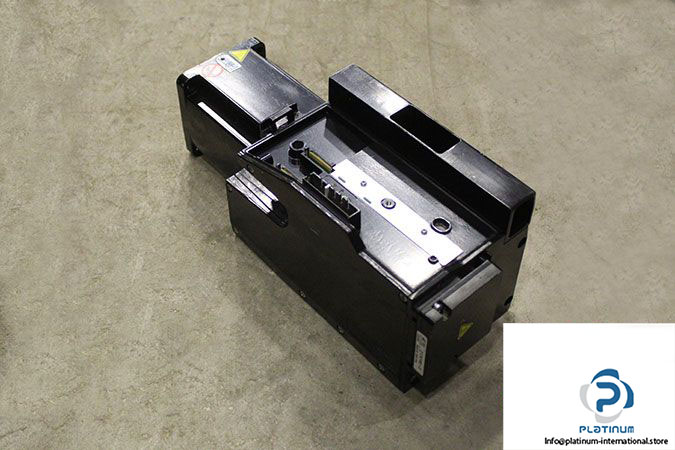

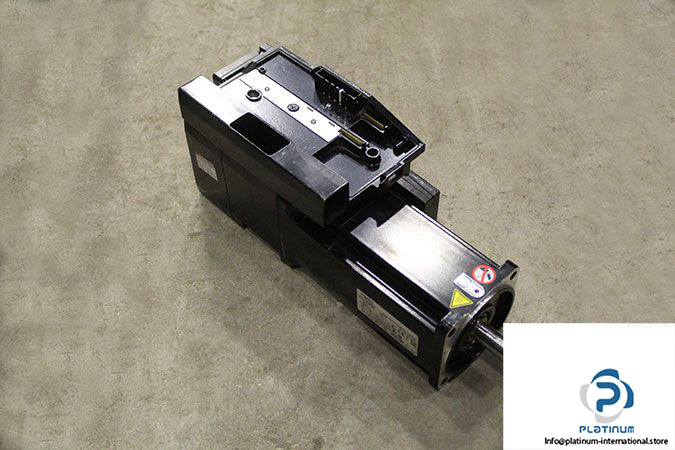

Schneider BMI1003P22F Servo Motor

Manufacturer: Schneider Electric, Elau

Type: Servo Motors

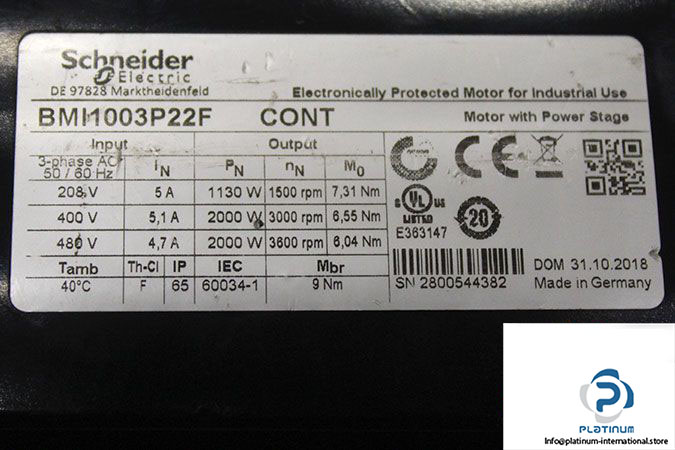

Model: BMI1003P22F

Rated Voltage [V]: 208/400/480

Rated Current [A]: 5/5.1/4.7

Stall Torque [Nm]: 7.31/6.55/6.04

Rated Power [W]: 1130/2000/2000

Rated Speed [rpm]: 1500/3000/3600

Max Speed [rpm]: 6000

Holding Torque [Nm]: 9

Ambient Temperature [°C]: 40

Frequency [Hz]: 50/60

Shaft Diameter [mm]: 19

Shaft Length [mm]: 40

Protection Class [IP]: 65

Duty: S1 Cont.

Insulation Class: F

Weight [kg]: 10.725
