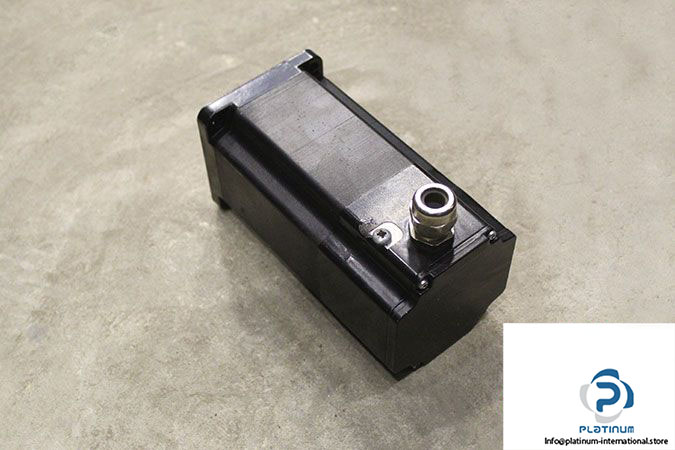

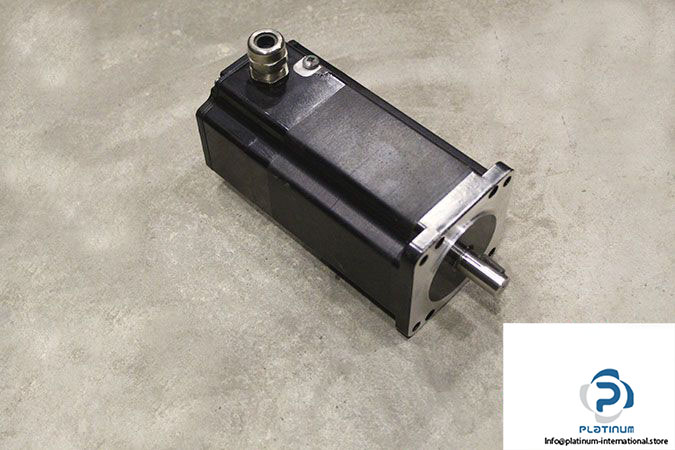

Schneider BRS39BW760ABA 3-PHASE Stepper Motor

Manufacturer: Schneider Electric, Berger Lahr

Type: 3-Phase Stepper Motors

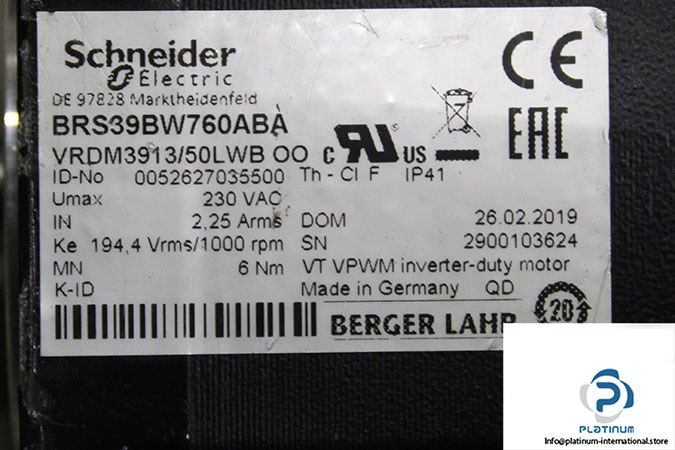

Model: BRS39BW760ABA

Part No.: VRDM3913/50LWB OO

Max. Voltage [V]: 230

Rated Current [A]: 2.25

Rated Torque [Nm]: 6

Constant Voltage [V/1000rpm]: 194.4

Max. Speed [rpm]: 3000

Stall Torque [Nm]: 5.78

Holding Torque [Nm]: 6.78

Rotor Inertia [kg.cm²]: 3.3

Mounting Support: Flange

Number of Poles: 6

Flange Size [mm]: 85

Shaft Diameter [mm]: 14

Shaft Length [mm]: 30

Insulation Class: F

Protection Class [IP]: 41

Weight [kg]: 4.24
