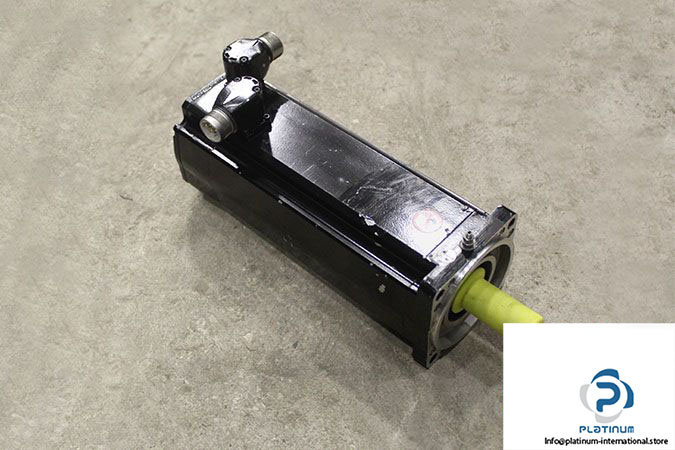

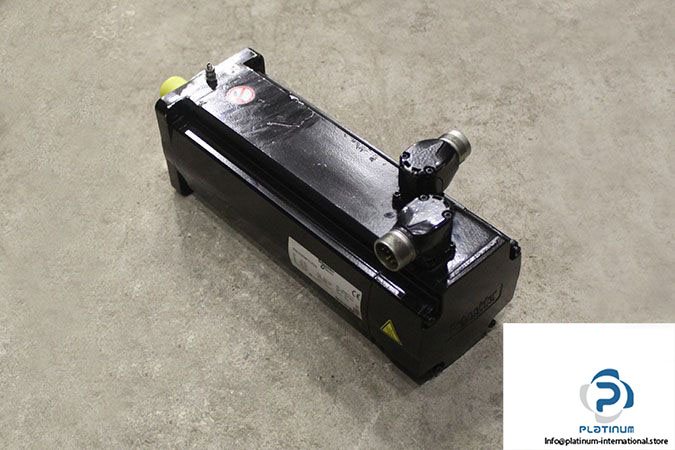

Schneider BSH1004P11A2A AC Servo Motor

Manufacturer: Schneider Electric, Elau

Type: AC Servo Motors

Model: BSH1004P11A2A

Stall Torque [Nm]: 10

Stall Current [A]: 6.2

Max Current [A]: 32.3

Rated Voltage [V]: 480

Rated Power [kW]: 2.48

Rated Speed [rpm]: 3000

Max Speed [rpm]: 6000

Number of Poles: 8

Flange Size [mm]: 100

Shaft Diameter [mm]: 24

Shaft Length [mm]: 50

Key Width [mm]: 40

Protection Class [IP]: 65

Thermal Class: F
