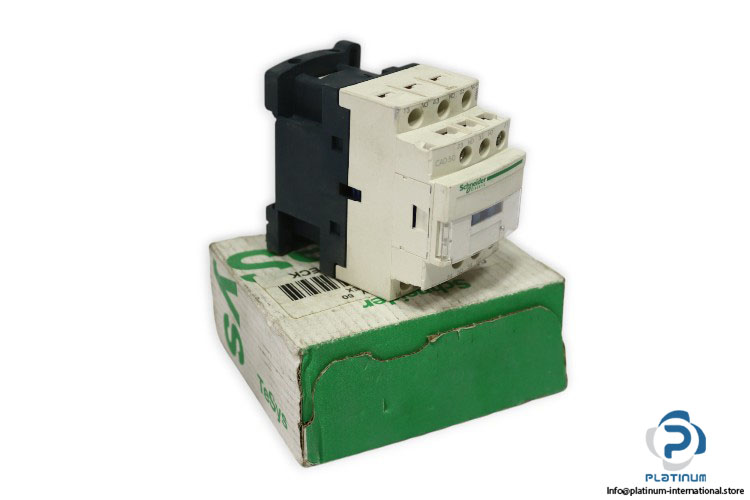

Schneider CAD50M7 Control Relay
Neu
Auf Lager1 EinheitVersandbereit
CONTROL RELAY
The Schneider CAD50M7 TeSys control relay offers 5 NO contacts, 220 V AC control voltage, and robust current capacity, ensuring reliable operation in industrial automation systems.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
SCHNEIDER CAD50M7 CONTROL RELAY
The Schneider CAD50M7 is a TeSys control relay engineered for reliable operation in industrial control systems. With 5 NO pole contact composition, high operational voltage, and robust thermal current capacity, it ensures safe and efficient performance in demanding environments.
Manufacturer: Schneider
Type: Control Relay
Model: CAD50M7
Part No.: 084246
Ref No.: 2F0945
Range: TeSys
| Pole Contact Composition | 5 NO |
| [Ue] Rated Operational Voltage | ‰¤ 690 V AC 25...400 Hz |
| Control Circuit Type | AC at 50/60 Hz |
| [Uc] Control Circuit Voltage | 220 V AC 50/60 Hz |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV (IEC 60947) |
| [Ith] Conventional Free Air Thermal Current | 10 A (at 60 °C) |
| Irms Rated Making Capacity | 140 A AC (IEC 60947-5-1), 250 A DC (IEC 60947-5-1) |
| [Icw] Rated Short-Time Withstand Current | 100 A - 1 s, 120 A - 500 ms, 140 A - 100 ms |
| Associated Fuse Rating | 10 A gG (IEC 60947-5-1) |
| [Ui] Rated Insulation Voltage | 600 V UL certified, 600 V CSA certified, 690 V (IEC 60947-5-1) |
| Mounting Support | Plate / Rail |
| Dimensions (H x W x D) | 77 x 45 x 84 mm |
