Schneider Electric ATV32HU40N4 Variable Speed Drive
Neu
Auf Lager1 EinheitVersandbereit
Variable Speed Drive
SCHNEIDER ELECTRIC Altivar 32 variable speed drive rated 4 kW / 5 HP, designed for precise three-phase motor control in industrial automation applications.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

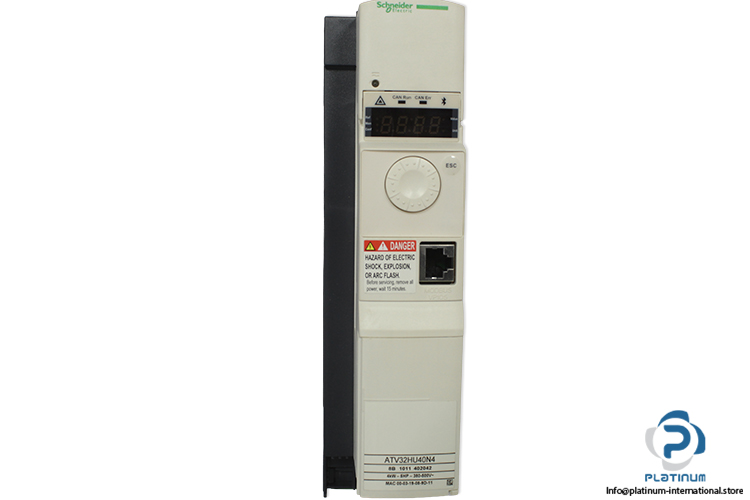

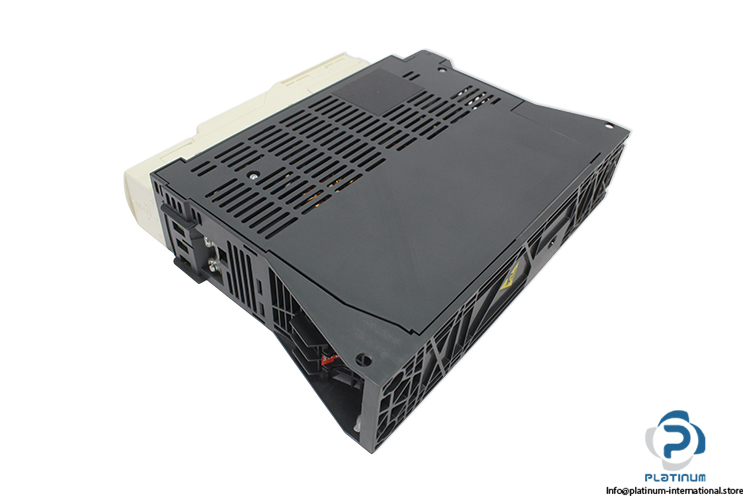

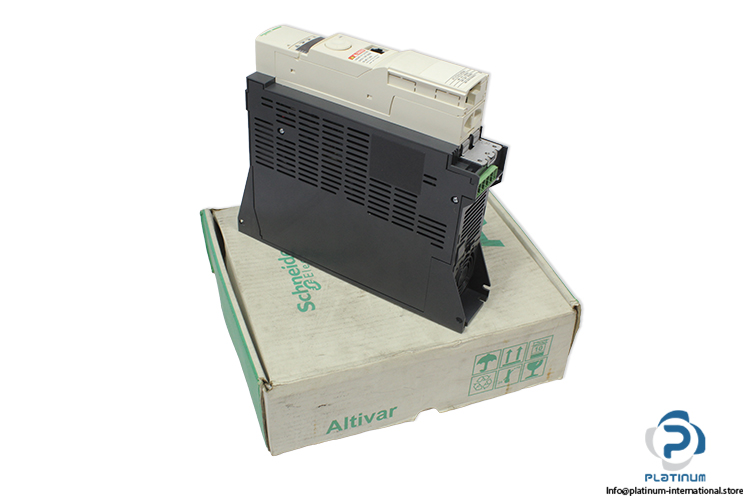

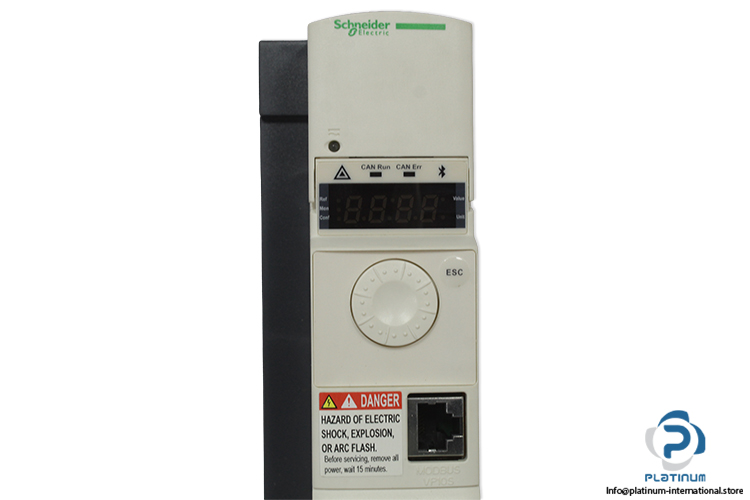

SCHNEIDER ELECTRIC ATV32HU40N4 Variable Speed Drive
The SCHNEIDER ELECTRIC ATV32HU40N4 variable speed drive from the Altivar 32 range is designed for precise motor control in industrial automation applications. It offers reliable performance, flexible input/output configuration, and efficient speed regulation for three-phase motors.
Manufacturer: SCHNEIDER ELECTRIC
Type: Variable Speed Drive
Model: ATV32HU40N4
Part No.: 029988
Range: Altivar 32
Component Name: ATV32
| Input Supply Voltage | 3-Phase 380 / 500 V AC |
| Input Rated Current | 13.7 A |
| Input Frequency | 50 / 60 Hz |
| Output Rated Voltage | 3-Phase 0 / 500 V AC |
| Output Rated Current | 9.5 A |
| Output Frequency | 0 / 599 Hz |
| Motor Power | 4 kW / 5 HP |
| Discrete Inputs | 7 |
| Discrete Outputs | 3 |
| Analogue Inputs | 3 |
| Analogue Outputs | 1 |
| Protection Class | IP20 |
| Ambient Temperature | -10 / 50 °C |
| Dimensions | 325 x 60 x 245 mm |
