Schneider Electric ATV71H075N4Z Variable Speed Drive
Gebraucht
Auf Lager1 EinheitVersandbereit
666,66$
Variable Speed Drive
Three-phase Schneider Electric variable speed drive from the Altivar 71 range, rated at 0.75 kW, offering wide frequency control and advanced I/O capabilities for industrial motor applications.(VSD)371AltivarATV71ControllerDriveElectricFrequencyIndustrialInvertermotorPhaseSchneiderSpeedVariable
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

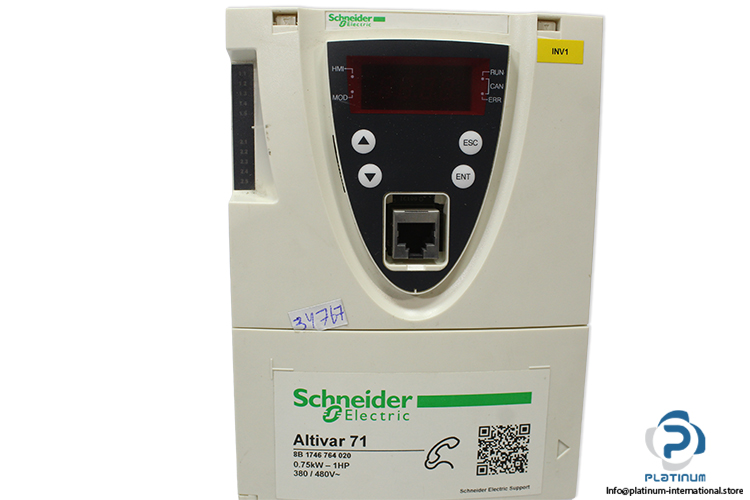

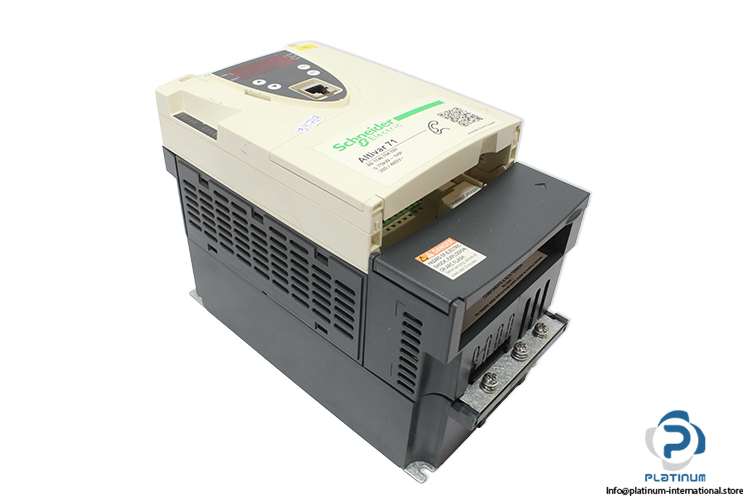

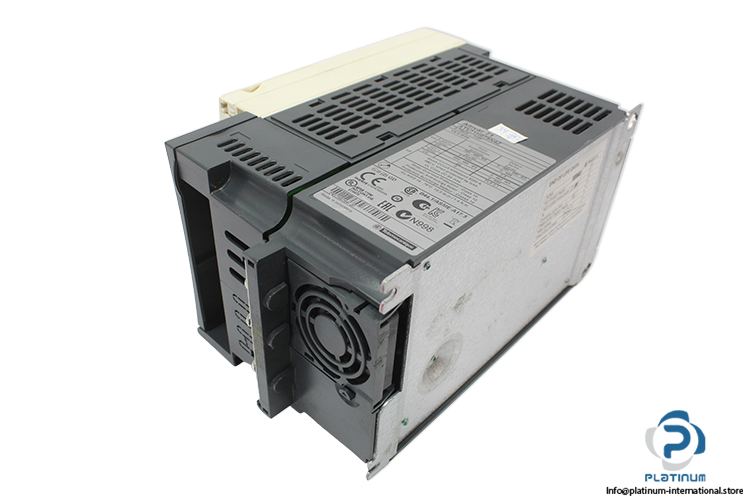

SCHNEIDER ELECTRIC ATV71H075N4Z Variable Speed Drive
The Schneider Electric ATV71H075N4Z variable speed drive from the Altivar 71 range is designed for precise motor control in demanding industrial applications. It provides flexible input and output performance, wide frequency range, and reliable operation for automation and motion control systems.
Manufacturer: SCHNEIDER ELECTRIC
Type: Variable Speed Drive
Model: ATV71H075N4Z

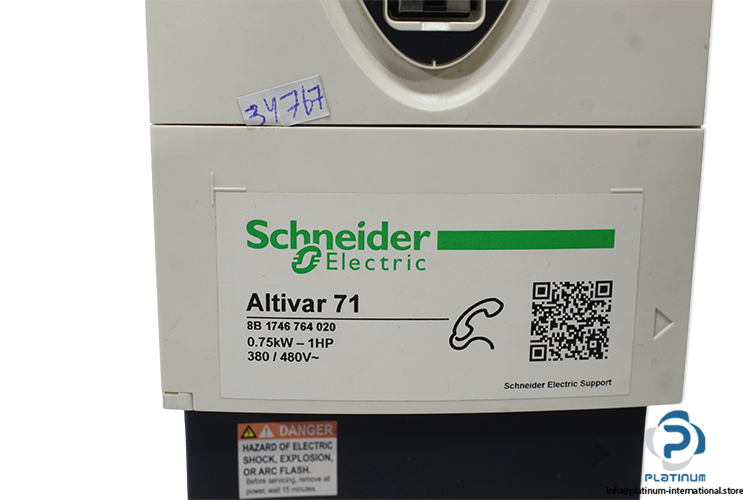

Reference No.: 8B 1746 764 020
Range: Altivar 71

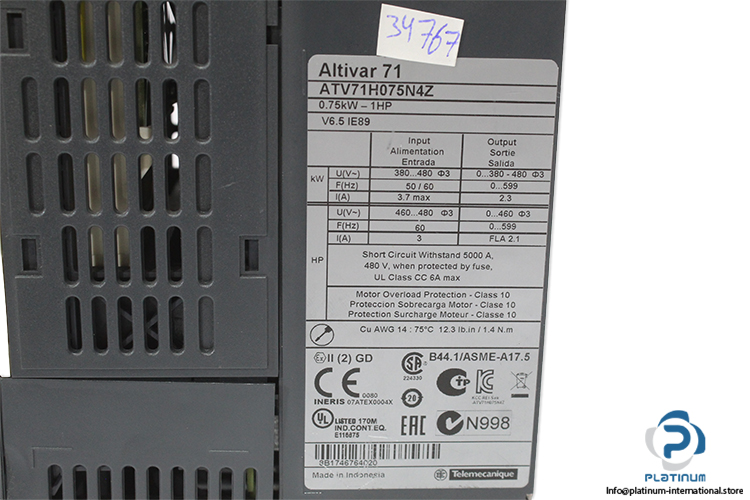

| Supply Voltage | 3-Phase 380 / 480 V AC |
| Rated Input Current | 3.7 A |
| Input Frequency | 50 / 60 Hz |
| Rated Output Voltage | 3-Phase 0 / 480 V AC |
| Rated Output Current | 2.3 A |
| Output Frequency | 0 / 1600 Hz |
| Motor Power | 0.75 kW / 1 HP |

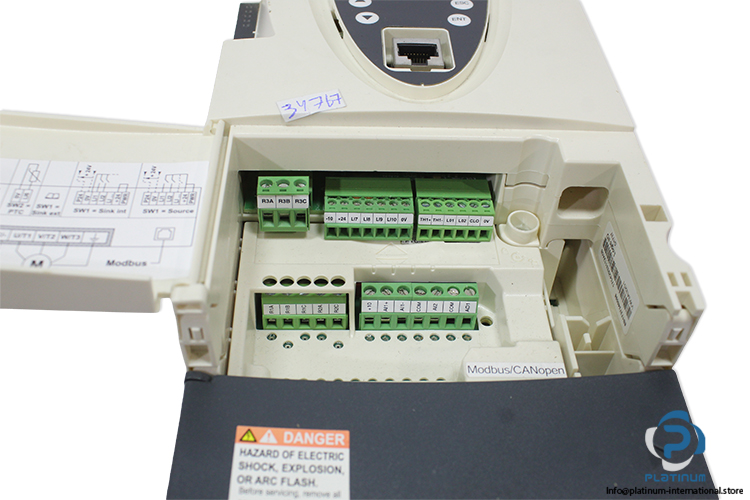

| Discrete Inputs | 7 |
| Discrete Outputs | 2 |
| Analogue Inputs | 2 |
| Analogue Outputs | 1 |
| Protection Class | IP20 |
| Ambient Temperature | -10 / 50 °C |
| Dimensions | 230 x 130 x 175 mm |
