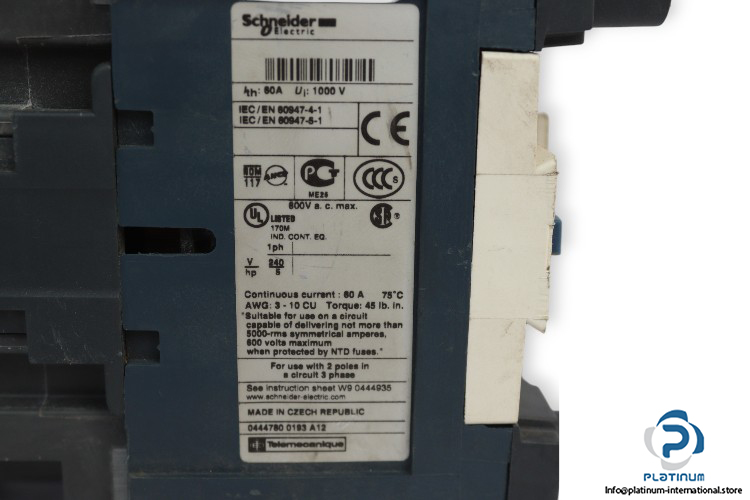

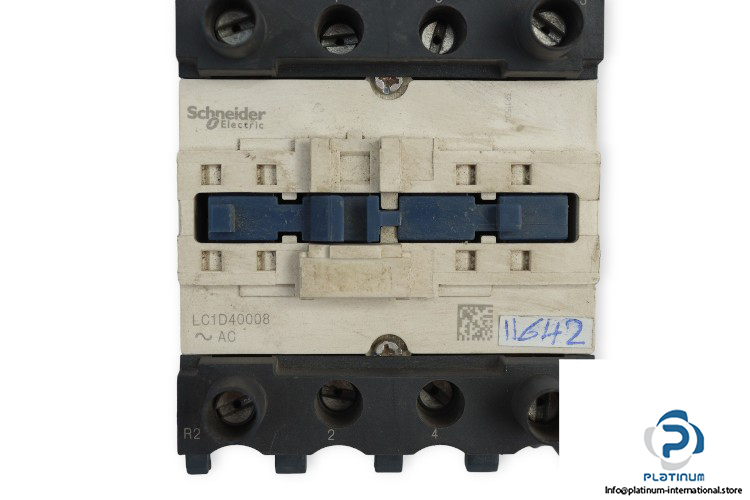

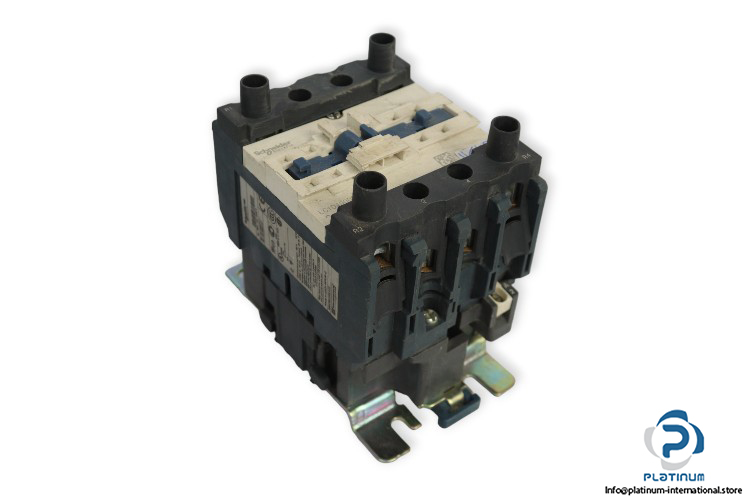

Schneider Electric LC1 D40008 Contactor

Manufacture: Schneider Electric
Type: Contactor
Model: LC1D40008

Suitable for Use: on Circuit Capable of Delivering not More Than 5000 rms Symmetrical Amperes, 600 V Max. ,With 2 poles in a circuit 3 phase
Rated insulation voltage Ui: 1000 V
Rated impulse with stand voltage Uimp: 6 Kv
Standard: IEC/EN 60947-4-1, IEC/EN 60947-5-1
Power: 5 HP (240 V)
Thermal Current Ith: 60 A
AWG: 3 … 10 CU
Torque: 45 Ib.in
Non inductive load maximum current: 60 A
No. of poles: 4
Operation temperature: -5 … 60°C
Dimensions: 77 x 133 x 96 mm
Attachment:

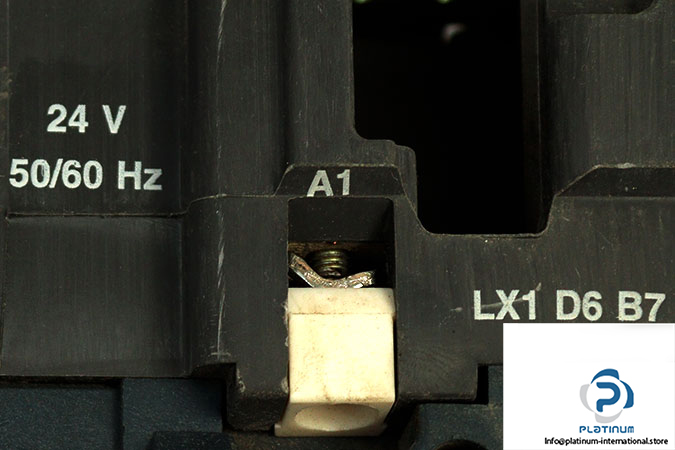

SCHNEIDER ELECTRIC LX1 D6 B7 CONTACTOR COIL
Manufacturer: Schneider Electric
Type: Contactor Coil
Model: LX1D6B7
Coil Voltage: 24 V AC
Frequency: 50 / 60 Hz
