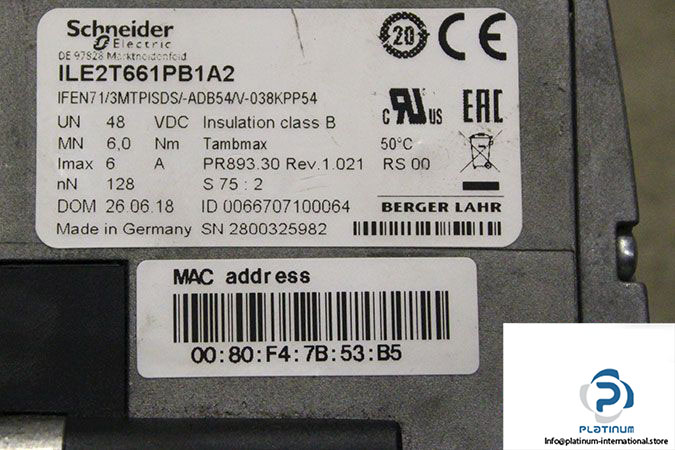

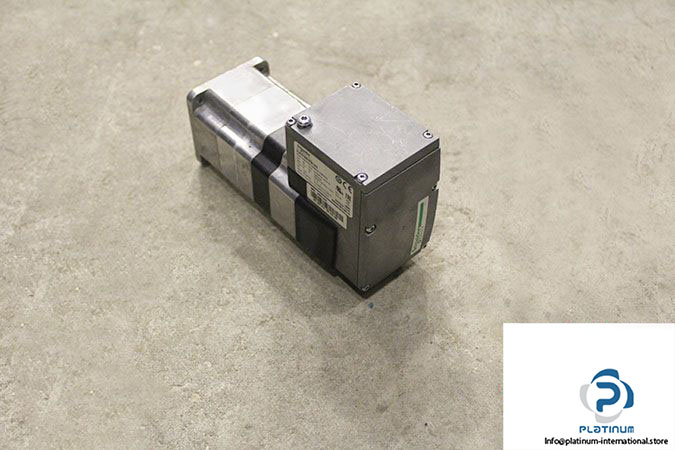

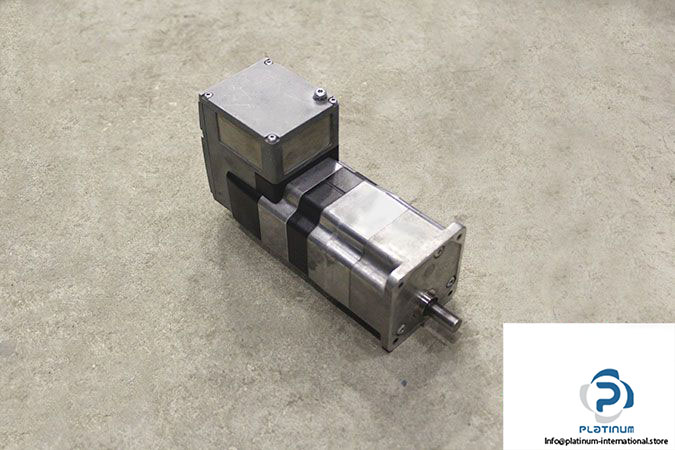

Schneider ILE2T661PB1A2 Brushless DC Motor

Manufacturer: Schneider Electric, Berger Lahr

Type: Brushless DC Motor

Model: ILE2T661PB1A2

Part No.: IFEN71/3MTPISDS/-ADB54/V-038KPP54

Reduction Ratio: 38

Peak Stall Torque [Nm]: 13.07

Continuous Stall Torque [Nm]: 8.3

Nominal Torque [Nm]: 6

Max Current [A]: 6

Supply Voltage [VDC]: 48

Nominal Speed [rpm]: 128

Number of Poles: 6

Mounting Support: Flange

Flange Size [mm]: 66

Shaft Diameter [mm]: 10

Shaft Length [mm]: 25

Key Width [mm]: 16

Ambient Temperature [°C]: 50

Thermal Class: B

Weight [kg]: 1.82
