Schneider LC1E0901N5 Contactor
CONTACTOR

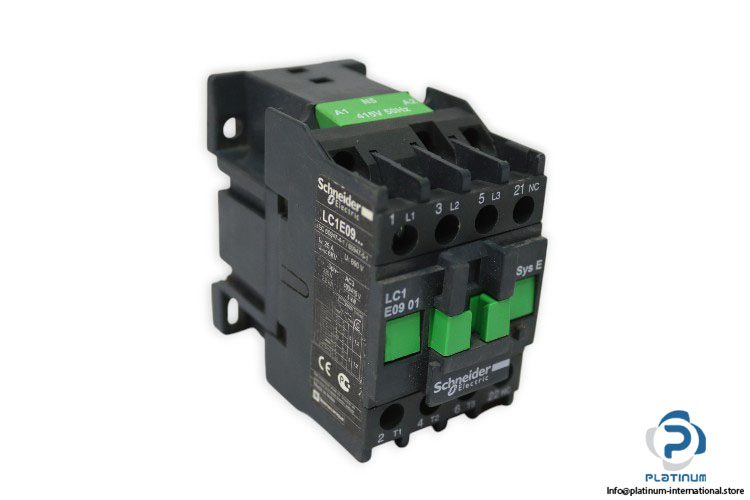

Schneider LC1E0901N5, 3‘pole contactor from the Easy TeSys range with 415 V AC control, up to 690 V AC operational voltage, AC‘1/AC‘3/AC‘3e ratings, and 3 NO main contacts plus 1 NC auxiliary.SCHNEIDER LC1E0901N5 CONTACTOR
The Schneider LC1E0901N5 is a compact 3‘pole contactor from the Easy TeSys range, built for reliable motor and power switching. It supports AC-1/AC-3/AC-3e duties, wide operational voltage up to 690 V AC, and a 415 V AC control circuit, making it suitable for industrial control panels with tight space requirements.
Manufacturer: SCHNEIDER
Type: Contactor
Model: LC1E0901N5

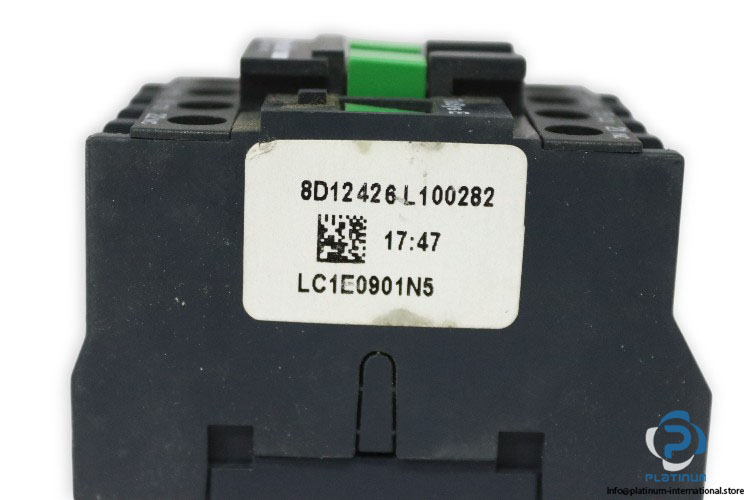

REF NO: 8D12426L100282
[Ie] Rated Operational Current:
9 A (at <55 °C) at ‰¤ 440 V AC, AC‘3 (power circuit)
9 A (at <55 °C) at ‰¤ 440 V AC, AC‘3e (power circuit)
25 A (at <55 °C) at ‰¤ 440 V AC, AC‘1 (power circuit)
Motor Power (kW):
2.2 kW at 220/230 V AC, 50/60 Hz
4 kW at 380/400 V AC, 50/60 Hz
4 kW at 415/440 V AC, 50/60 Hz
| Range | Easy TeSys |
| Device Short Name | LC1E |
| Poles Description | 3P |
| [Ue] Rated Operational Voltage | Power circuit ‰¤ 690 V AC, 50/60 Hz |

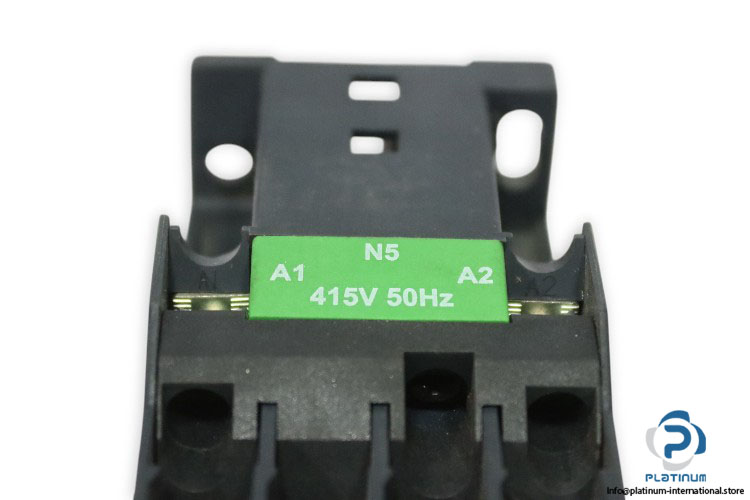

| [Uc] Control Circuit Voltage | 415 V AC, 50 Hz |

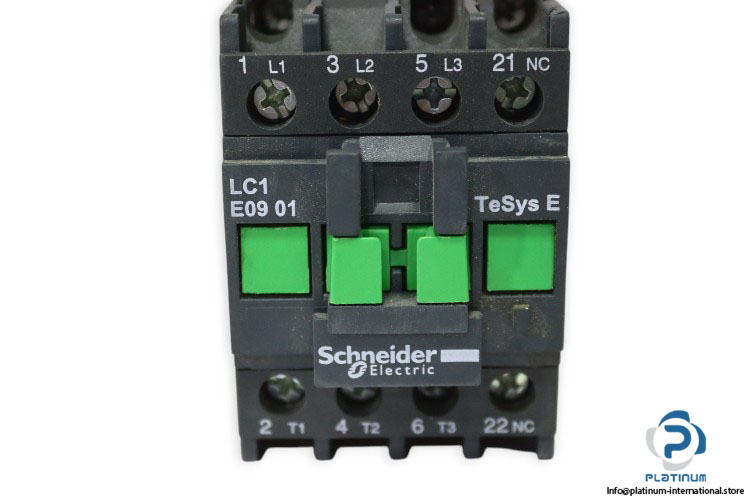

| Pole Contact Composition | 3 NO |
| [Ith] Conventional Free Air Thermal Current | 25 A (at 55 °C) for power circuit |

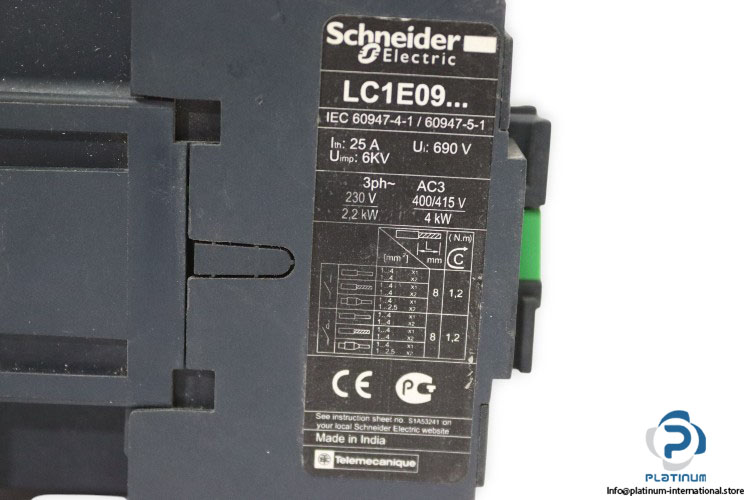

| [Ui] Rated Insulation Voltage | 690 V (IEC 60947‘4‘1) |
| Overvoltage Category | III |
| Pollution Degree | 3 |
| Auxiliary Contact Composition | 1 NC |
| Height | 74 mm |
| Width | 45 mm |
| Depth | 80 mm |
