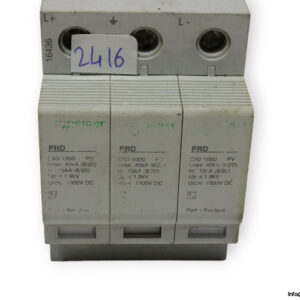

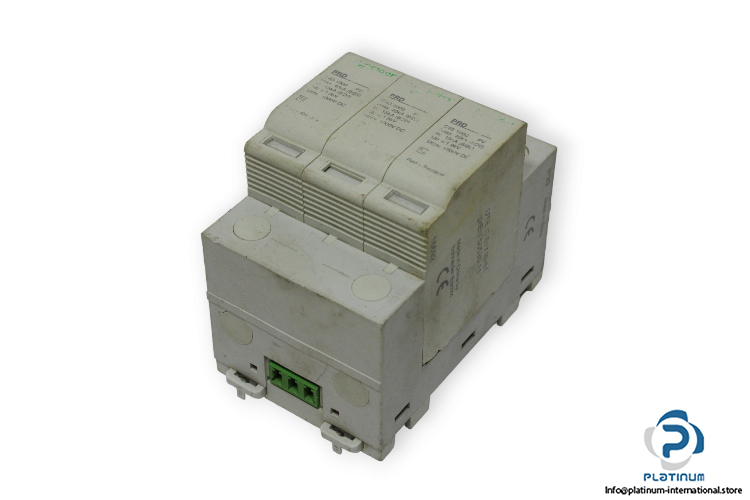

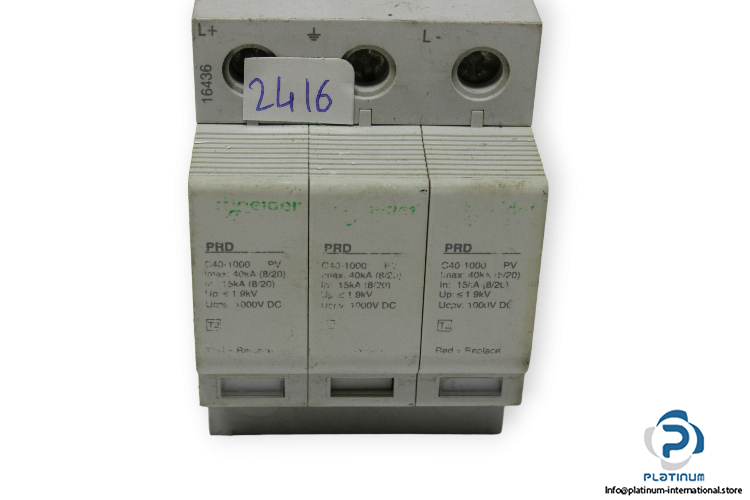

Schneider PRD Modular Surge Arrester

Manufacturer: Schneider

Type: Modular Surge Arrester

Model: PRD

Part No: 16436

Rated operational voltage Ue: 1000 V

Nominal discharge current In: 15 Ka

Maximum discharge current: 40 kA

Signal contacts composition: 1 Changeover contact (1 C/O)

Poles description: 2 poles

Operating Temperature: -25 … +60 °C

Degree of protection: IP40 on front face, IP20 on terminal

IK degree of protection: IK03

Dimensions: 81 x 54 x 69 mm
