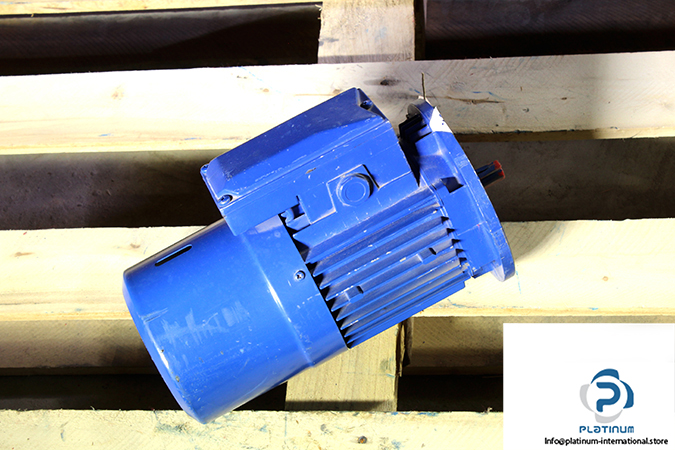

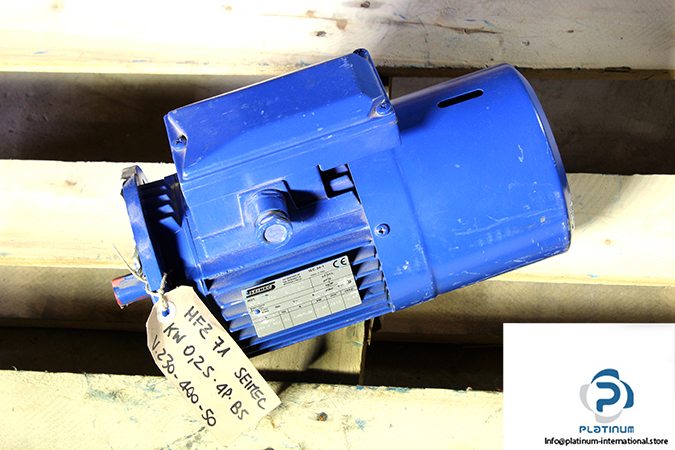

Seimec HFZ 71A 4 B5 Brake Motor

Manufacturer: Seimec
Type: Brake Motors
Model: HFZ71A4B5

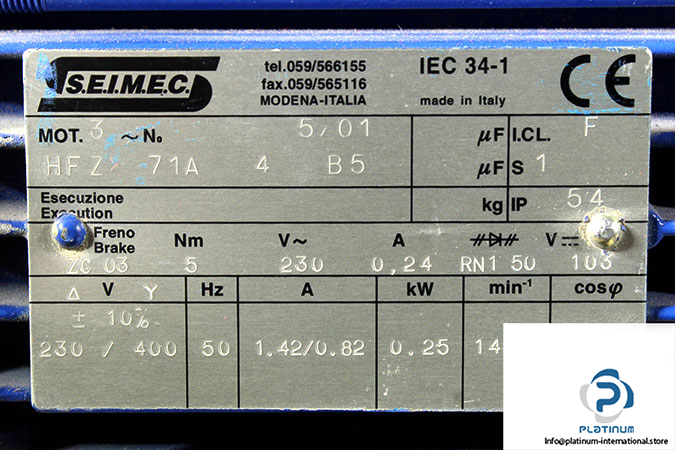

Motor Speed [r/min]: 1410
Motor Power [kW]: 0.25
Rated Voltage [V]: 230/400
Nominal Current [A]: 1.42/0.82
Motor Frequency [Hz]: 50
Cos Phi: 0.63
Thermal Class: F
Duty: S1
Protection Class [IP]: 54
Mounting Position [MI]: B5
Brake Model: ZC03
Brake Torque [Nm]: 5
Brake Voltage [V]: 230
Brake Current [A]: 0.24
Weight [kg]: 9,1
