Setec ID12-36-30-B-150-ERS-POT-IP65 Linear Actuator

Name: SETEC ID12-36-30-B-150-ERS-POT-IP65 LINEAR ACTUATOR
SKU: 1076086
Availability: LimitedAvailability

setec-ID12-36-30-B-150-ERS-POT-IP65-linear-actuator-used

setec-ID12-36-30-B-150-ERS-POT-IP65-linear-actuator-used-1

setec-ID12-36-30-B-150-ERS-POT-IP65-linear-actuator-used-2

Gebraucht

Auf Lager1 EinheitVersandbereit

Setec Linear Actuator

Setec ID12-36-30-B-150-ERS-POT-IP65 linear actuator offers 6000 N force, 150 mm stroke, and high protection with an IP65 rating. Operates on 36 V DC with 4500 RPM speed and potentiometer option.

Hersteller

SETEC

SKU

1076086

Kategorie

Pneumatic Actuators

Zustand

Gebraucht

6000 Actuator AOID10D31 high-force ID12-36-30-B-150-ERS-POT-IP65 Industrial Linear motor N Potentiometer Setec

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

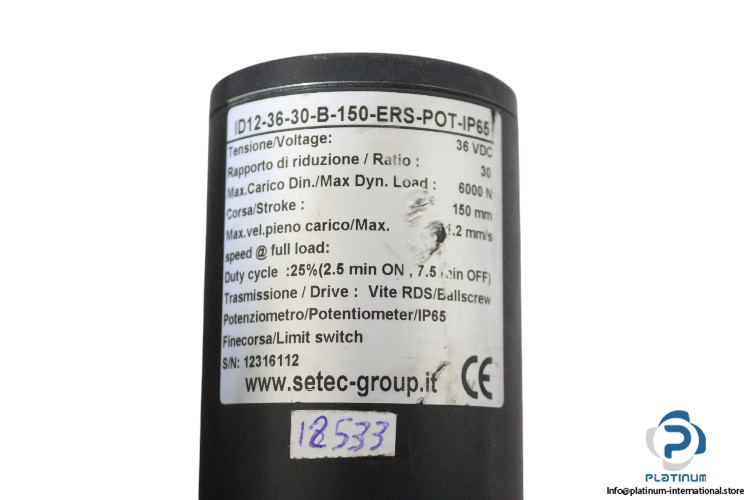

Setec Linear Actuator “ ID12-36-30-B-150-ERS-POT-IP65

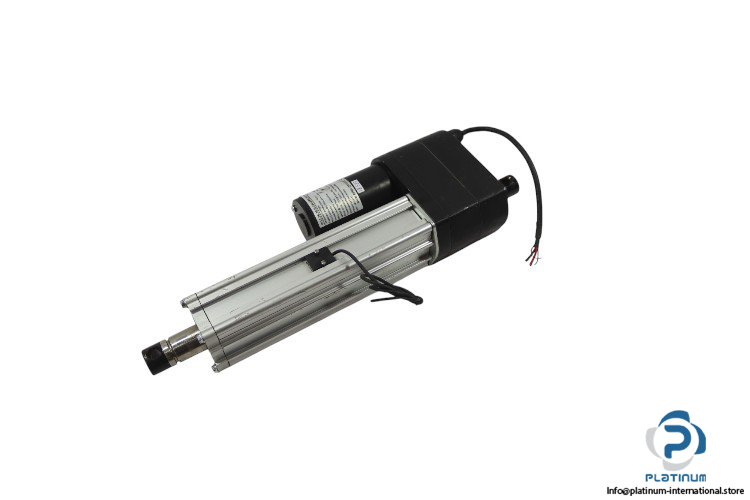

The Setec ID12-36-30-B-150-ERS-POT-IP65 linear actuator is designed for high-force, precise linear motion in demanding industrial environments. With a robust design and IP65 rating, it offers excellent protection against dust and water ingress.

Manufacturer: Setec

Type: Linear Actuator

Model: ID12-36-30-B-150-ERS-POT-IP65

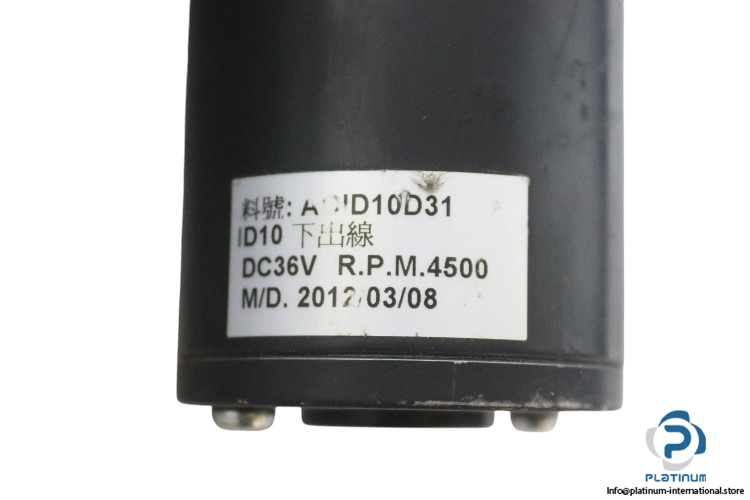

Setec Motor “ AOID10D31

Voltage	36 V DC
Duty Cycle	2.5 min ON, 7.5 min OFF
Force	6000 N
Gear Ratio	30
Power	150 W
Drive/Spindle Type	Vite RDS/ Ball Screw
Stroke	150 mm
IP Rating	IP 65
Options	Potentiometer
Speed	4500 RPM
Attachment with	SETEC AOID10D31 Motor
