Setec ID12-36-30-B-150-ERS-POT-IP65 Linear Actuator
Used
In stock1 unitReady to ship
Setec Linear Actuator
Setec ID12-36-30-B-150-ERS-POT-IP65 linear actuator offers 6000 N force, 150 mm stroke, and high protection with an IP65 rating. Operates on 36 V DC with 4500 RPM speed and potentiometer option.6000ActuatorAOID10D31high-forceID12-36-30-B-150-ERS-POT-IP65IndustrialLinearmotorNPotentiometerSetec
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

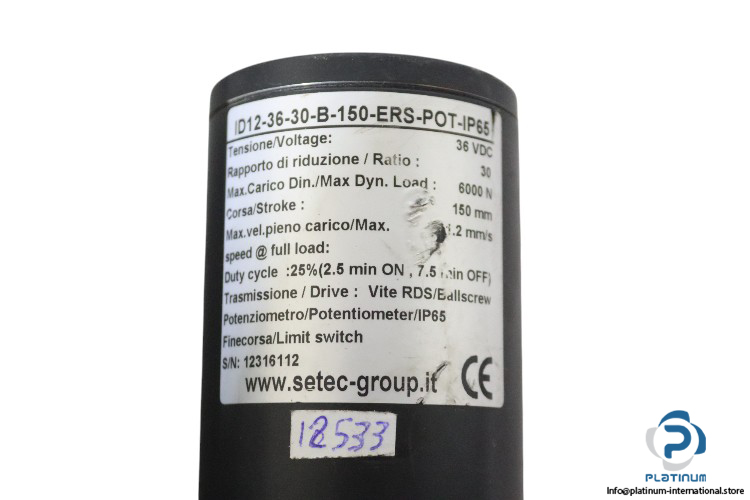

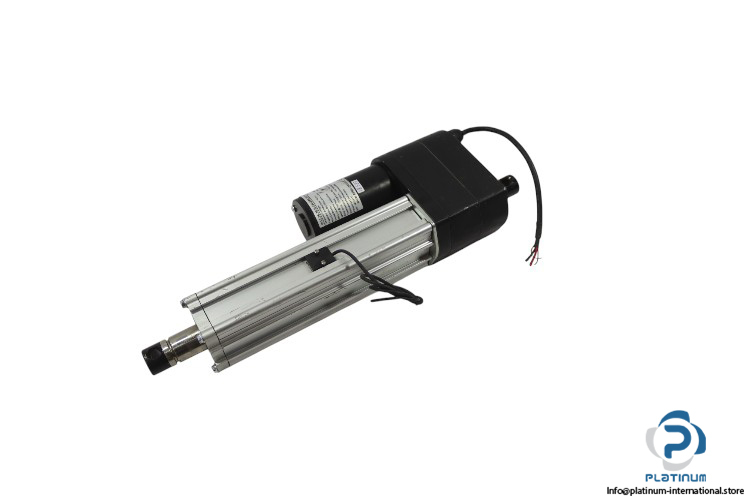

Setec Linear Actuator “ ID12-36-30-B-150-ERS-POT-IP65
The Setec ID12-36-30-B-150-ERS-POT-IP65 linear actuator is designed for high-force, precise linear motion in demanding industrial environments. With a robust design and IP65 rating, it offers excellent protection against dust and water ingress.
Manufacturer: Setec
Type: Linear Actuator
Model: ID12-36-30-B-150-ERS-POT-IP65

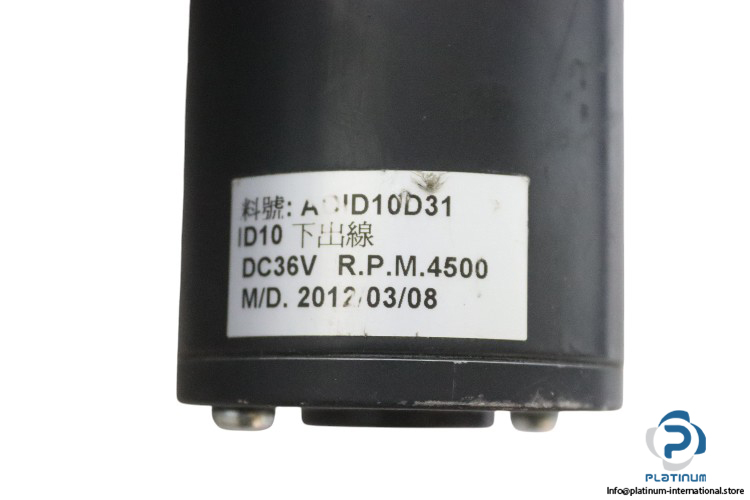

Setec Motor “ AOID10D31
| Voltage | 36 V DC |
| Duty Cycle | 2.5 min ON, 7.5 min OFF |
| Force | 6000 N |
| Gear Ratio | 30 |
| Power | 150 W |
| Drive/Spindle Type | Vite RDS/ Ball Screw |
| Stroke | 150 mm |
| IP Rating | IP 65 |
| Options | Potentiometer |
| Speed | 4500 RPM |
| Attachment with | SETEC AOID10D31 Motor |
