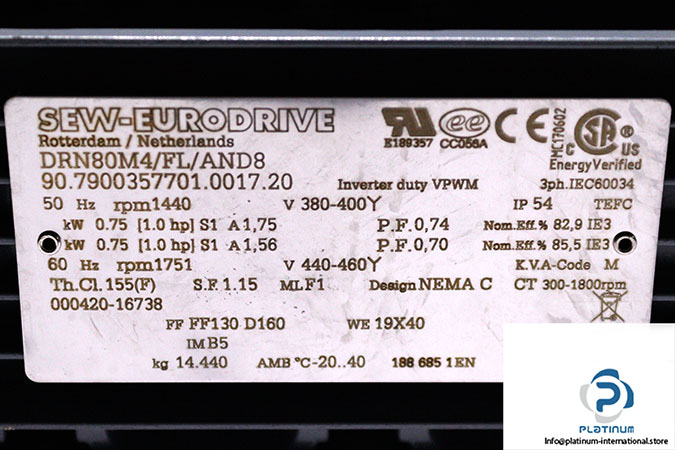

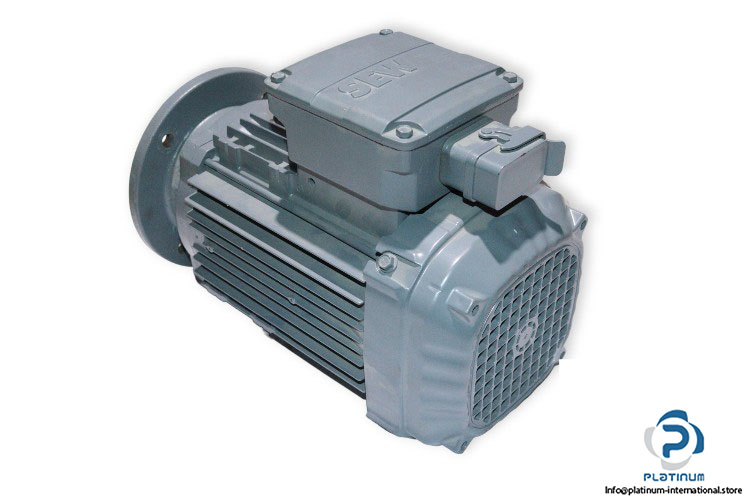

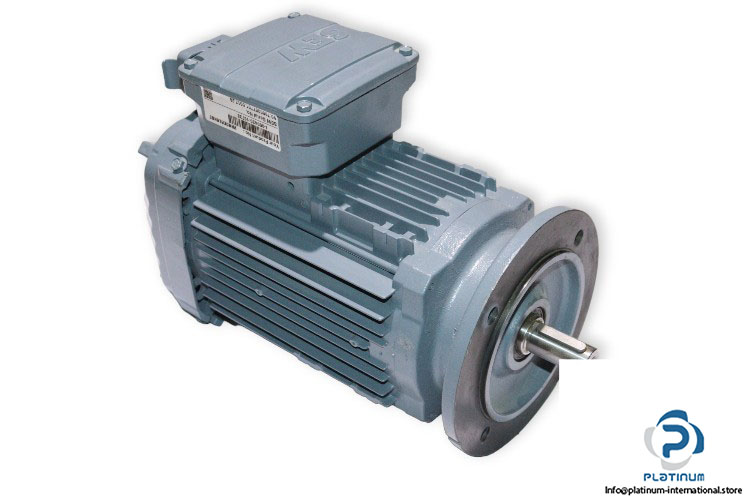

SEW DRN80M4/FL/AND8 AC Motor

Manufacturer: SEW
Type: AC Motors
Model: DRN80M4/FL/AND8
ID Nr.: 90.7900357701.0017.20

Motor Speed [r/min]: 1440
Input Speed B [r/min]: 1751
Mounting Position: B5
Motor Speed [r/min]: 1440/1751
Motor Power [kW]: 0.75/0.75
Motor Power [HP]: 1.0/1.0
Duty: S1
Multi Range-Voltage 50Hz [V]: 380-400 Star
Nominal Current [A]: 1,75
Range-Voltage 60Hz [V]: 440-460 Star
Nominal Current [A]: 1,56
Frequency [Hz]: 50/60
Cos Phi: 0,74/0,70
Thermal cl.[°C]/Enclosure [IP]: F/54
Service Factor Motor: 1.15
Efficiency 50/60 Hz: 82,9/85,5
Ambient Temperature Min. [°C]: -20
Ambient Temperature Max. [°C]: 40
