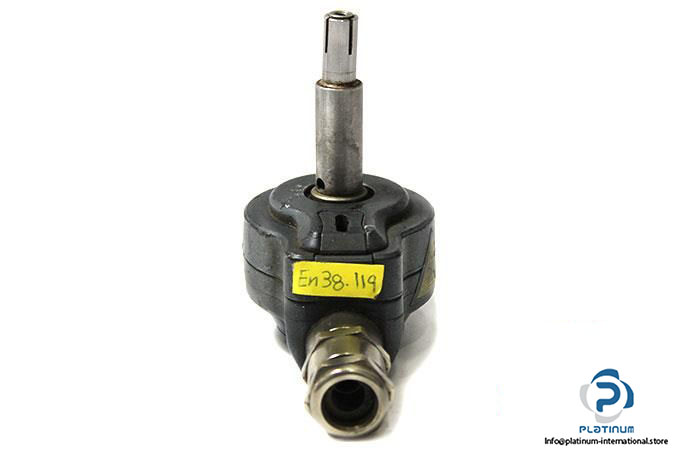

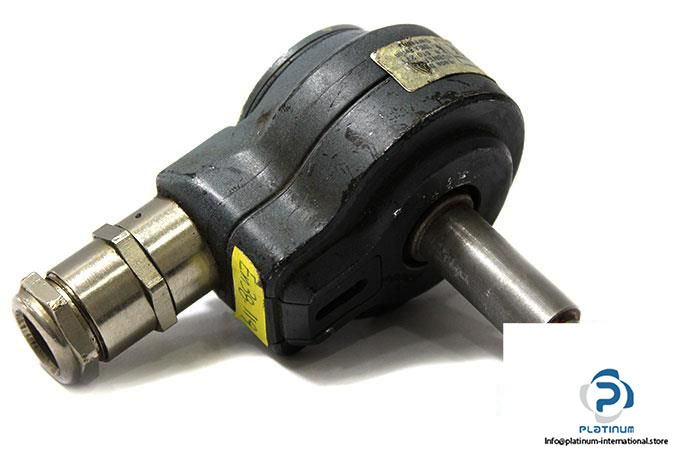

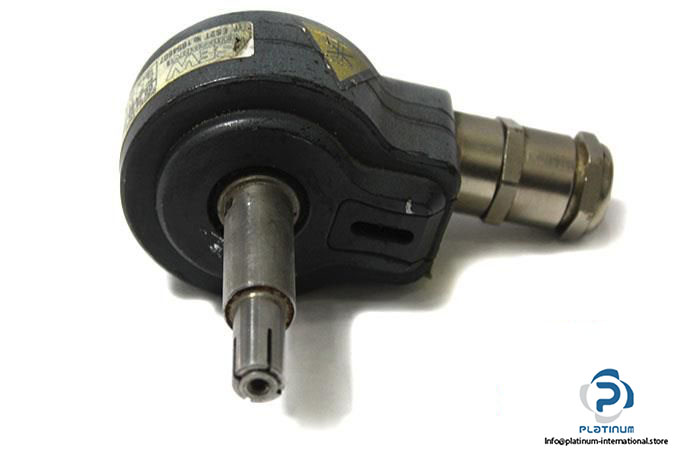

SEW ES2T Incremental Encoder
150,00$
INCREMENTAL ENCODER SEW OG 72 DN 1024 TTL Inkrementalgeber liefert hohe Geschwindigkeit, 1024 PPR Auflösung mit TTL Ausgang und IP56 Schutz, ideal für präzises Feedback in Motorsteuerungsanwendungen.
SEW OG 72 DN 1024 TTL INCREMENTAL ENCODER
The SEW OG 72 DN 1024 TTL is a high-precision incremental encoder built for demanding industrial applications. Designed with a spread shaft configuration, this unit offers reliable performance and accurate feedback for motion control systems. It is engineered to withstand challenging environments with a high protection class and robust electrical output.

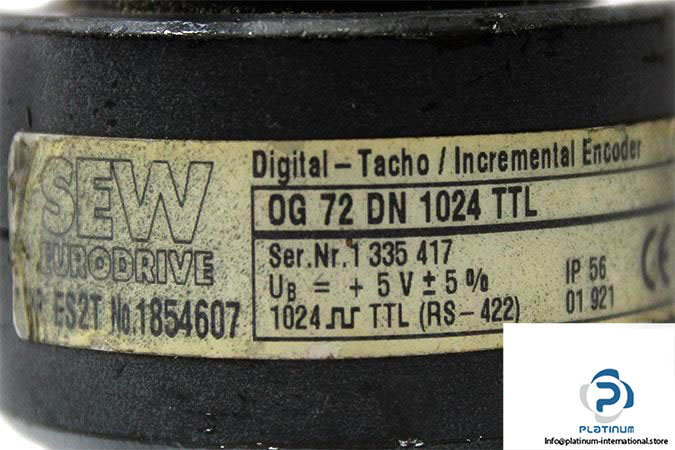

Manufacturer: SEW
Type: Incremental Encoder
Model: OG 72 DN 1024 TTL
SN: 1335417
Designation: ES2T
No.: 1854607
REF NO: 01 921
Installed to: DT71-DV225, CT71-200CV
| Shaft Design | Spread Shaft |
| Voltage Supply | 5 VDC |
| Resolution | 1024 Pulse per Revolution (PPR) |
| Max. Current Consumption | 180 mA |
| Signal Output | TTL (RS 422) |
| Max Speed | 10000 rpm |
| Max. Pulse Frequency | 120 kHz |
| Output Connection | Terminal Box |
| Protection Class | IP 56 |
