Motors & Drives Gear Motors

SEW MGFAT2-DSM-DBC-B/ECR/IV/DSP Movigear

Name: SEW MGFAT2-DSM-DBC-B/ECR/IV/DSP MOVIGEAR
SKU: 1015277
Availability: LimitedAvailability

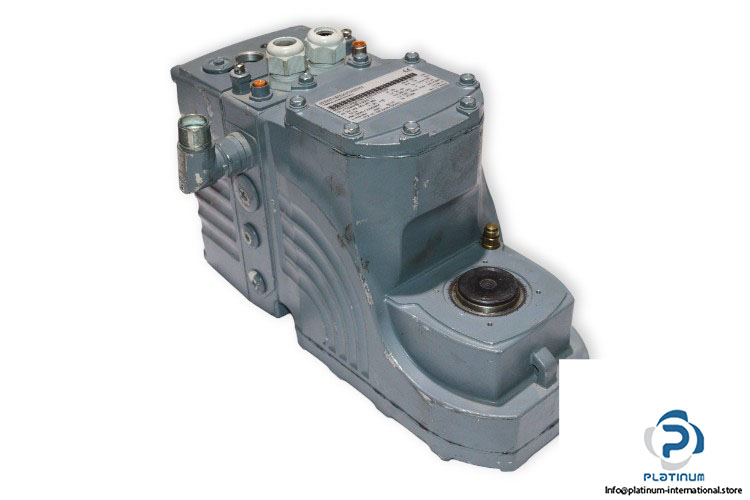

sew-MGFAT2-DSM-DBC-B_ECR_IV_DSP-movigear-used

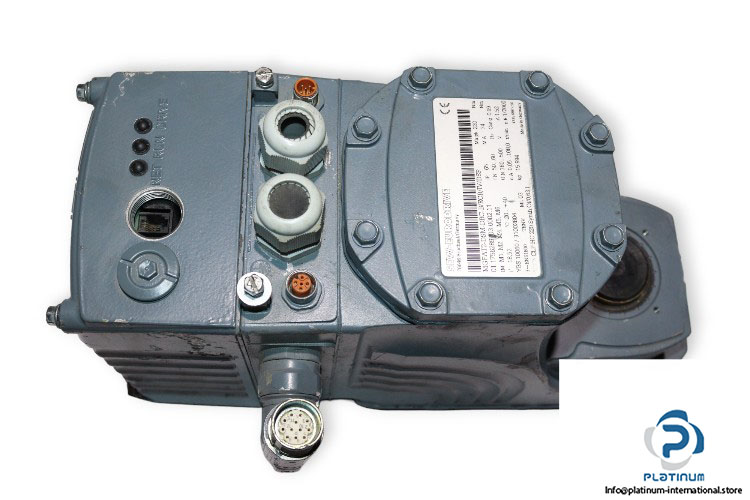

sew-MGFAT2-DSM-DBC-B_ECR_IV_DSP-movigear-used-1

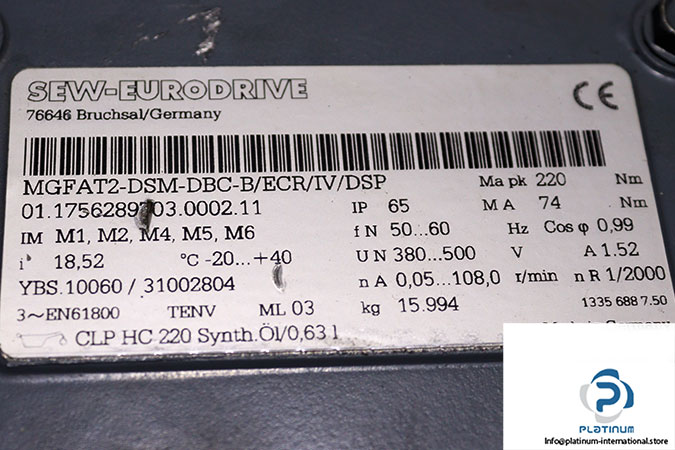

sew-MGFAT2-DSM-DBC-B_ECR_IV_DSP-movigear-used-2

Gebraucht

Auf Lager1 EinheitVersandbereit

Manufacturer: Sew Serial No.: 01.1756289703.0002.11

Type:

Movigear

Model:

MGFAT2-DSM-DBC-B/ECR/IV/DSP

Hersteller

SEW

SKU

1015277

Kategorie

Gear Motors

Zustand

Gebraucht

Electric Gear motor Movigear Parallel Sew

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

Manufacturer: Sew
Type: Movigear
Model: MGFAT2-DSM-DBC-B/ECR/IV/DSP
Serial No.: 01.1756289703.0002.11

Speed Ratio [i]: 1/2000
Output Speed [rpm]: 0.05-108.0
Output Torque [Nm]: 74
Peak Torque [Nm]: 220
Ratio [i]: 18,52
Mounting Position: M1, M2, M4, M5, M6
Rated Supply Frequency [Hz]: 50-60 +/- 5%
Supply Voltage [V]: 3×380-500 -5% / +10%
Rated Supply Current [A]: 1.52
Cos Phi: 0,99
Enclosure [IP]: 65
Ambient Temperature Min [°C]: -20
Ambient Temperature Max [°C]: +40
