SEW R37 DT80K4/MM05/BW1 Helical Gearmotor
with MOVIMOT MM07C-503-00 Inverter Drive “ 280-1400 r/min input speed, 9.7-49.0 r/min output speed, 108 Nm torque, 380-500V AC inverter for industrial automation.

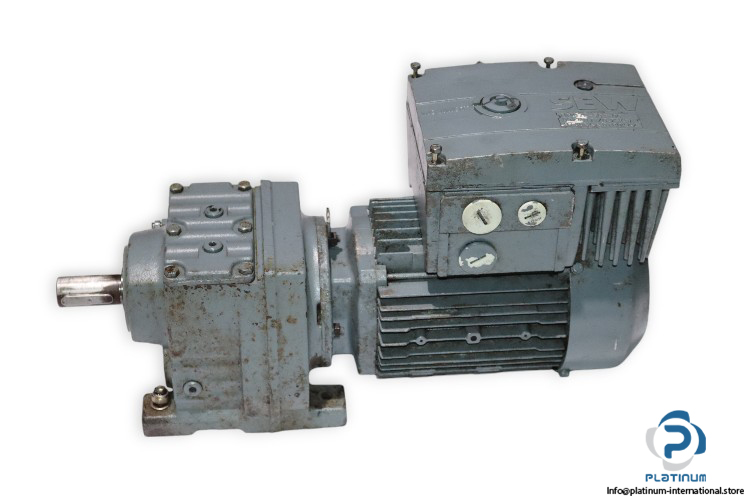

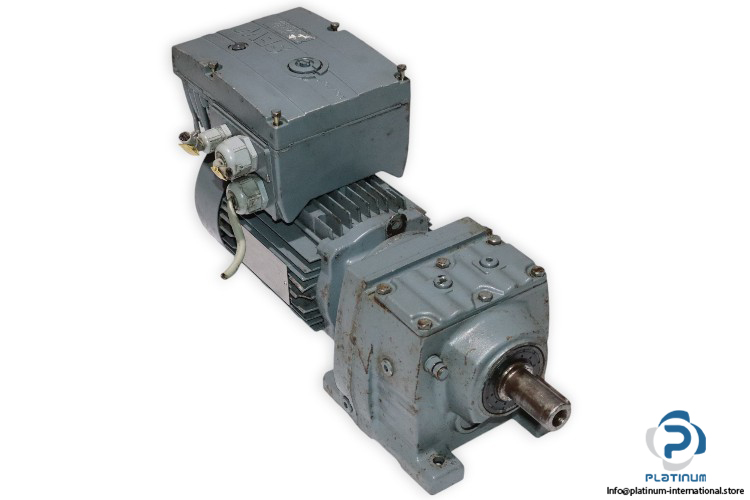

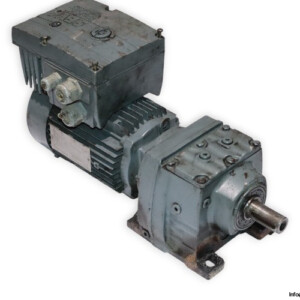

SEW Helical Gearmotor R37 DT80K4/MM05/BW1 with MOVIMOT Inverter Drive
The SEW Helical Gearmotor R37 DT80K4/MM05/BW1 is a high-performance gearmotor designed for industrial applications requiring efficiency, reliability, and precise speed control. Integrated with the SEW MM07C-503-00 MOVIMOT Inverter Drive, this system provides seamless speed variation and energy-efficient operation.

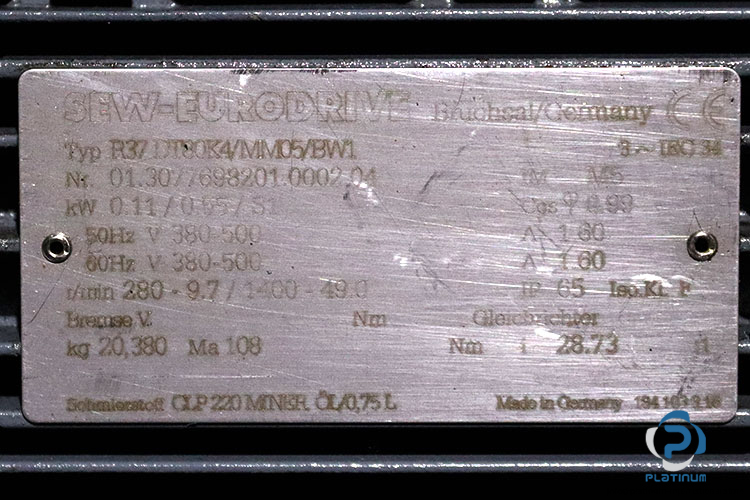

Gearmotor Specifications:
- Manufacturer: SEW
- Type: Helical Gearmotor
- Model: R37 DT80K4/MM05/BW1
- Part No.: 01.3077698201.0002.04
- Gear Unit: R37
- Input Speed: 280 – 1400 r/min
- Output Speed: 9.7 – 49.0 r/min
- Total Ratio: 28.73
- Output Torque: 108 Nm
- Service Factor SEW-FB: 1.85
- Mounting Position: M5
- Lubricant / Volume: CLP 220 / 0.75 L
- Output Shaft End: 25 x 50 mm lg.
- Motor Power: 0.11 / 0.55 kW
- Motor Frequency: 50 Hz
- Cyclic Duration Factor: S1
- Multi Range Voltage 50Hz: 380-500 V
- Multi Range Voltage 60Hz: 380-500 V
- MM Rated Main Current: 1.60 A
- MM Rated Output Current: 2.00 A
- Thermal Class / Enclosure: F / 65°C

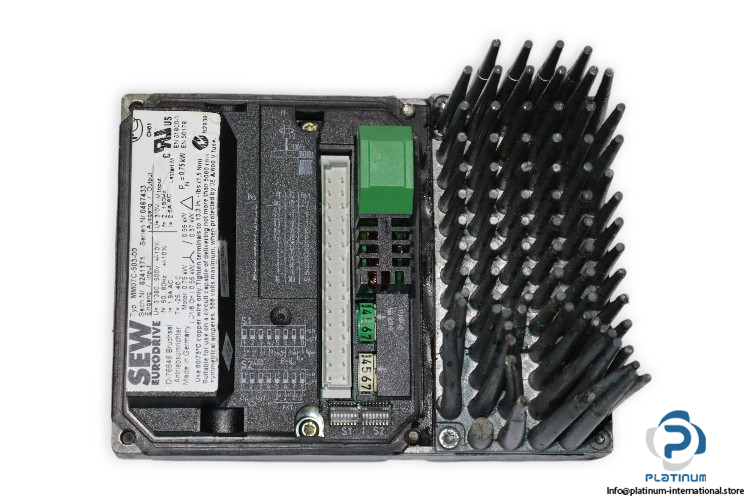

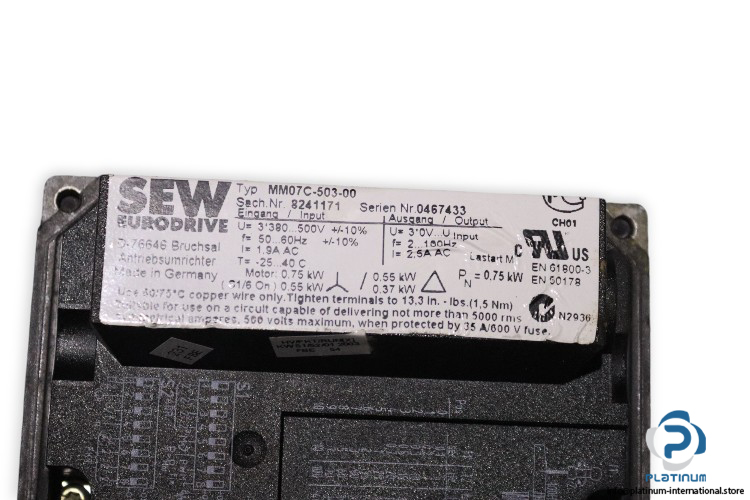

Attached: SEW MM07C-503-00 MOVIMOT Inverter Drive
Input:
- Supply Voltage: 3-Phase 380 to 500 V AC
- Rated Current: 1.9 A
- Frequency: 50 / 60 Hz
Output:
- Rated Voltage: 3-Phase 0 / 380 to 500 V AC
- Rated Current: 2.5 A
- Frequency: 2 to 100 Hz
The SEW R37 DT80K4/MM05/BW1 helical gearmotor with MOVIMOT MM07C-503-00 inverter drive offers seamless speed control and energy efficiency, making it an ideal solution for various industrial automation applications.
