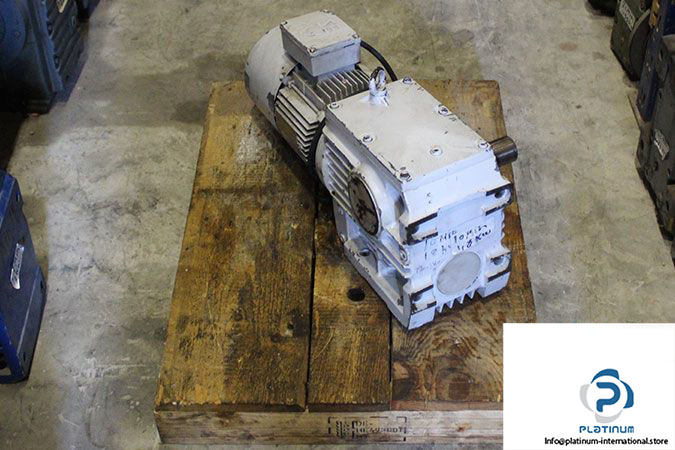

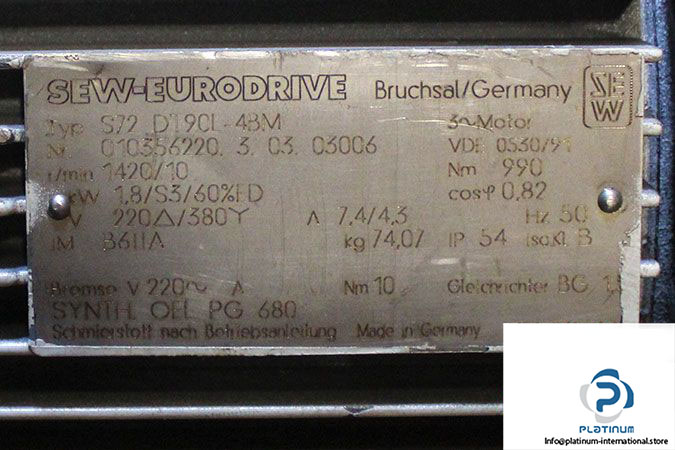

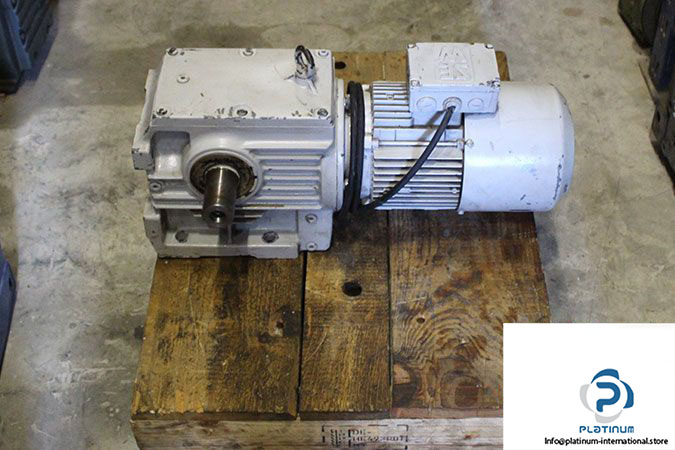

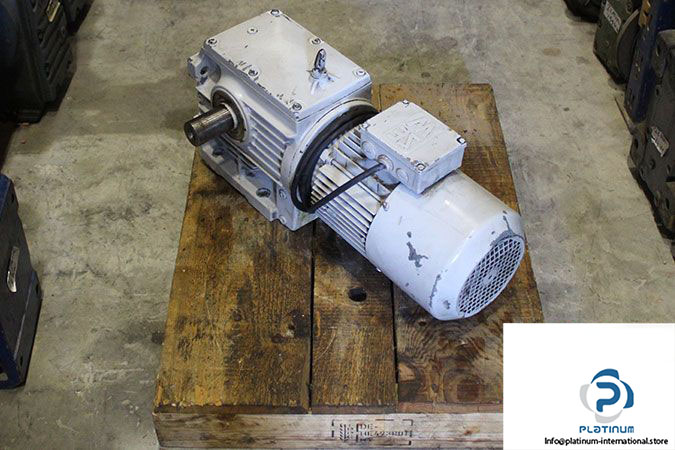

SEW S72 DT90L-4BM Helical-Worm Gearmotor

Manufacturer: Sew-Eurodrive

Type: Helical Bevel Gearmotor

Model: S72 DT90L-4BM

Sew S67 Gear

Gear Type (S): Helical-Worm Gear Unit, Foot-Mounted

Gear Box Size: 72

Ratio: 142

Output Speed: 10 r/min

Shaft Diameter: 45 mm

Lubrication: PG 680

Sew DT90L AC Motor

Series Motor (DT): Attached Motor for Variable Speed Gear Unit

Motor Size: 90

No. of Pole: 4

Nominal Voltage (Delta): 220 V

Nominal Voltage (Star): 380 V

Rated Current (Delta): 7.4 A

Rated Current (Star): 4.3 A

Rated Power: 1.8 Kw

Rated Torque: 990 Nm

Output Speed: 1420 r/min

Frequency: 50 Hz

Efficiency: 60 %

Power Factor: 0.82

Operating Mode: S3

Insulation Class: B

Mounting Position: B6IIA

Degree of Protection: IP54

Sew BM2/HR Motor Options

Braking Torque: 10 Nm

Max. Braking Torque: 20 Nm

Braking Power: 40 W

Rated Voltage: 220 V

Rectifier: BG1.5

Low-Noise Brake

Gross Weight: 74.5 kg
