Sick ATM60-P1H13X13 / BTF08-P1HM0341 Wire Draw Absolute Encoder

SICK BTF08-P1HM0341 WIRE DRAW ABSOLUTE ENCODER & ATM60-P1H13X13 ABSOLUTE ENCODER

The SICK BTF08-P1HM0341 wire draw absolute encoder and ATM60-P1H13X13 absolute encoder deliver high-precision position feedback for industrial automation systems. Designed for demanding environments, these encoders feature PROFIBUS DP communication, robust housing materials, and excellent environmental protection ratings. Ideal for applications requiring accurate linear and rotary measurements, these units ensure reliable performance under varying conditions.

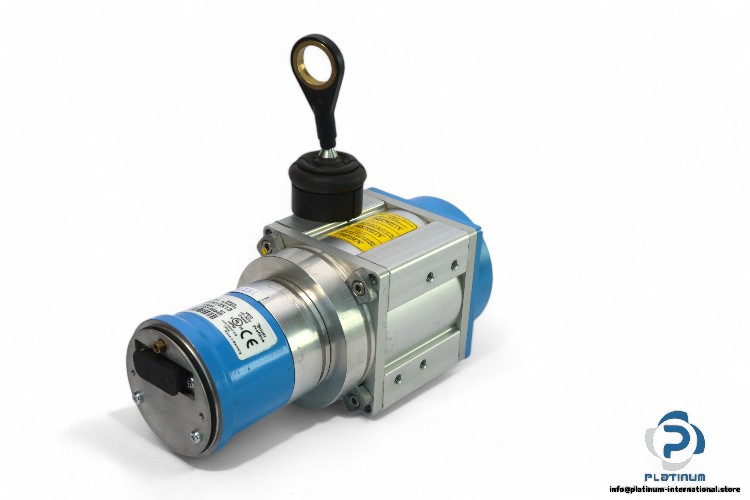

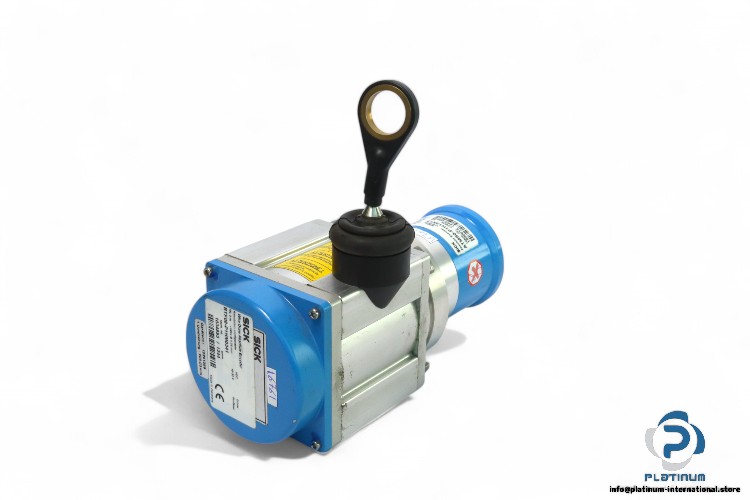

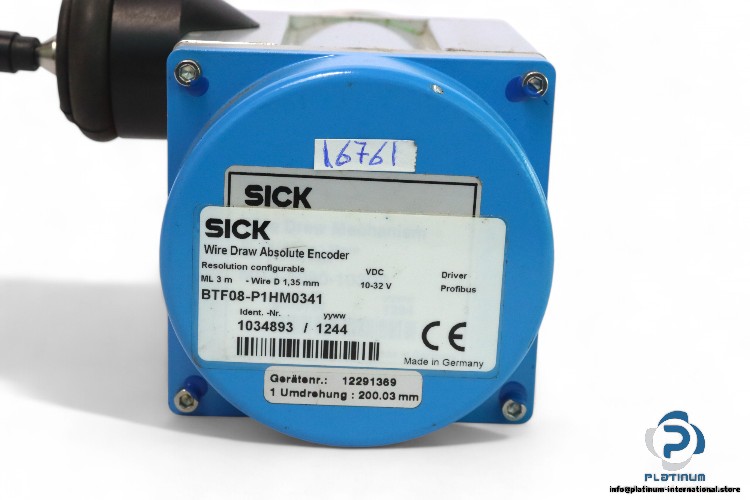

SICK BTF08-P1HM0341 Wire Draw Absolute Encoder

Manufacturer: SICK
Type: Wire Draw Absolute Encoder
Model: BTF08-P1HM0341
Part No.: 1034893 / 1244 / 12291369

• Measurement Range: 0 m to 3 m
• Communication Interface: PROFIBUS DP
• Connection Type: Bus Adapter for PROFIBUS
• Supply Voltage: 10 V to 32 V
• Power Consumption: 2 W
• Housing Material (Wire Draw Mechanism): Aluminum (anodized), Aluminum Die Cast (nickel-plated)
• Spring Return Force: 6 N to 14 N
• Enclosure Rating: IP64
• Operating Temperature Range: -20 °C to +70 °C

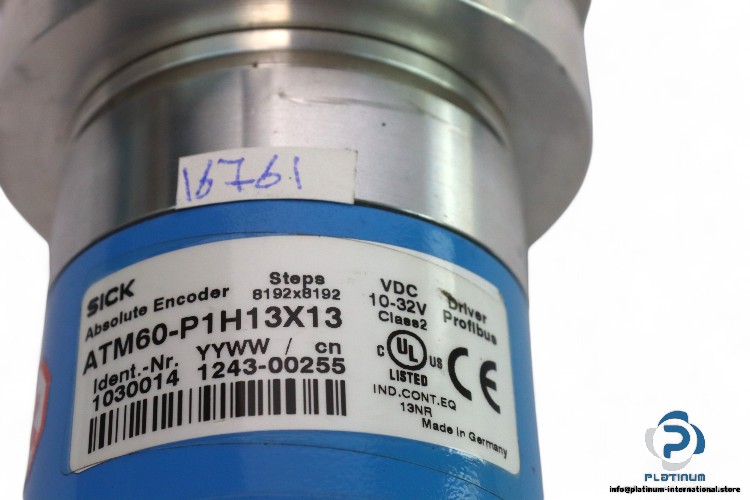

SICK ATM60-P1H13X13 Absolute Encoder

Manufacturer: SICK
Type: Absolute Encoder
Model: ATM60-P1H13X13
Part No.: 1030014 / 1243-00255

• Mechanical Design: Solid Shaft, Servo Flange
• Steps per Revolution: 8,192 (13-bit)
• Voltage: 10 V to 32 V DC
• Power Consumption: ‰¤ 2 W (without load)
• Shaft Diameter: 6 mm
• Shaft Length: 10 mm
• Connection Type: Bus Adapter for PROFIBUS 1
• Operating Speed: ‰¤ 6,000 min»¹
• Temperature Range: -20 °C to +85 °C
