Sick DFS60B-BHAM04096 Incremental Encoder
Neu
Auf Lager4 EinheitenVersandbereit
75,00$
INCREMENTAL ENCODER Sick DFS60BBHAM04096 hochpräziser Encoder mit 4.096 PPR, blinder Hohlwelle, IP67-Schutz und TTL/RS-422-Schnittstelle. Entwickelt für extreme industrielle Bedingungen.
4096AutomationDFS60BBHAM04096EncoderHighhollowIncrementalIndustrialIP67PPRResolutionRS-422shaftSickstainlessSteelTTL
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

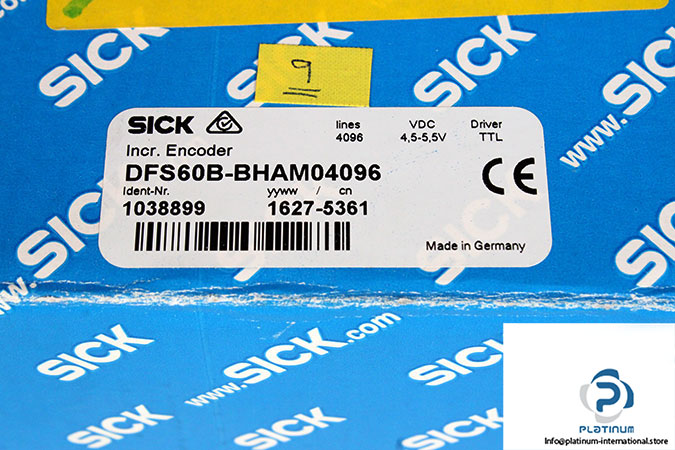

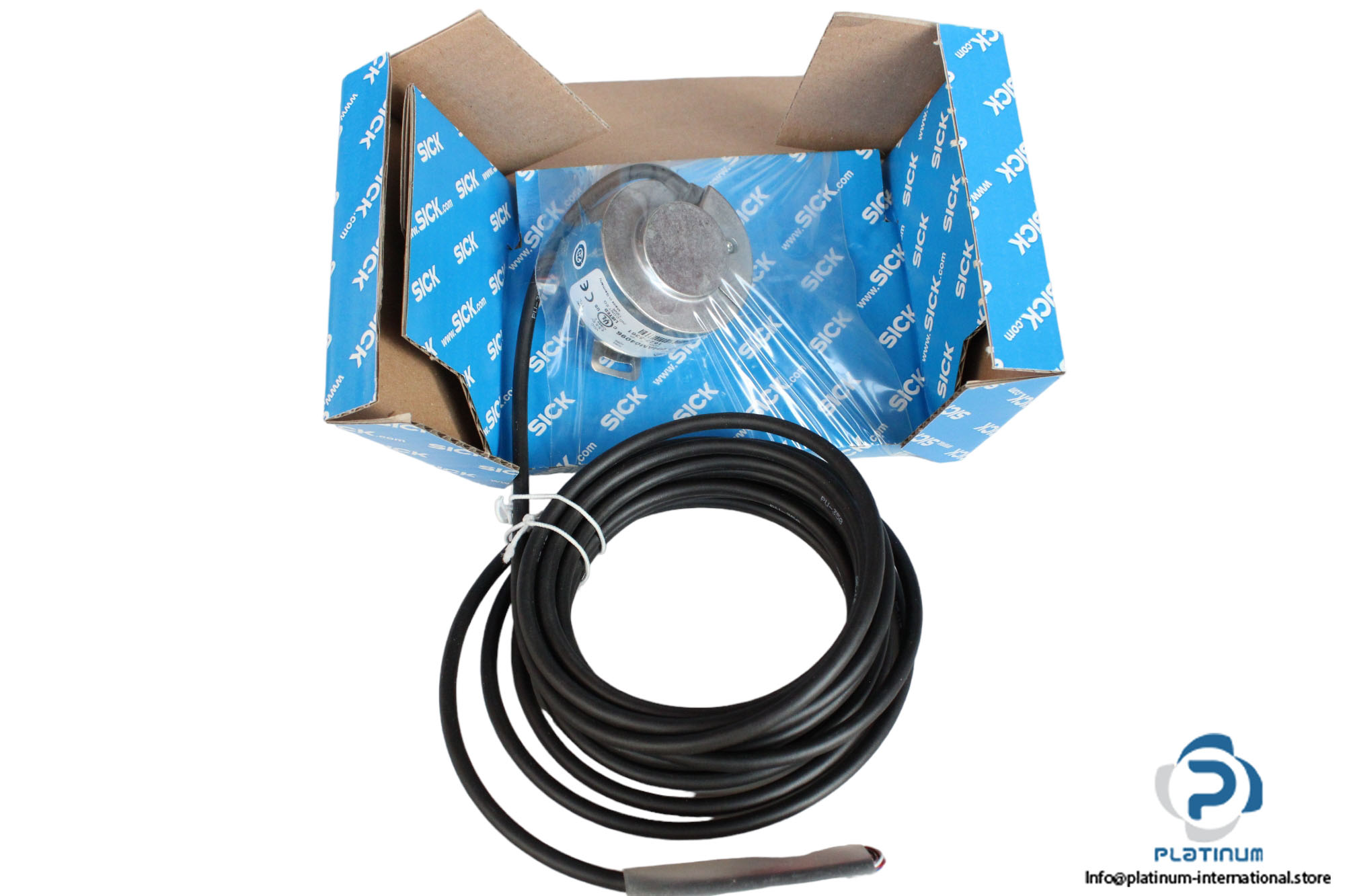

SICK DFS60BBHAM04096 INCREMENTAL ENCODER
The Sick DFS60BBHAM04096 is a high-resolution incremental encoder engineered for demanding industrial environments. Designed with robust materials and high signal accuracy, it is ideal for motion control and automation applications that require precise positioning and speed feedback.
Manufacturer: Sick
Type: Incremental Encoder
Model: DFS60BBHAM04096
Part No.: 1038899 1627-5361
| Supply Voltage | 4.5 “ 5.5 V |
| Operating Current | 40 mA |
| Pulses per Revolution | 4,096 |
| Connection Type | Cable, 8-wire, universal, 5 m |
| Interface | TTL / RS-422 |
| No. of Signal Channels | 6-channel |
| Output Frequency | ‰¤ 600 kHz |
| Mechanical Design | Blind hollow shaft |
| Shaft Diameter | 15 mm |
| Shaft Material | Stainless steel |
| Housing Material | Aluminum die cast |
| Operating Torque | 0.6 Ncm |
| Enclosure Rating | IP67 |
| Operating Temperature | -40 / +100 °C |
| Dimensions | 72 x 45.5 x 60 mm |
