Sick DSL-1205-G0M6C Connector Cable
Neu
Auf Lager1 EinheitVersandbereit
Connector Cable
A robust M12 connector cable engineered for industrial automation and sensor applications, providing secure connections, high environmental protection, and reliable electrical performance.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

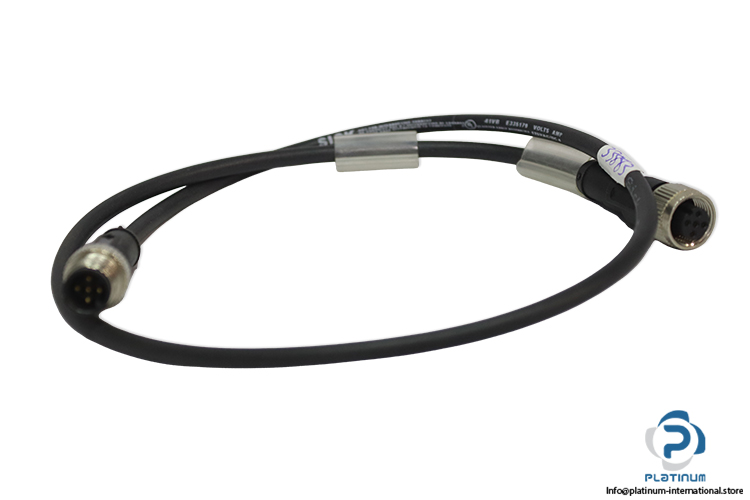

SICK DSL-1205-G0M6C Connector Cable
A high-quality industrial connector cable designed for reliable signal and power transmission in automation and sensor applications. Engineered for harsh environments, this SICK cable ensures secure connections, mechanical durability, and excellent resistance to motion and environmental stress. Manufacturer: SICK
Type: Connector Cable

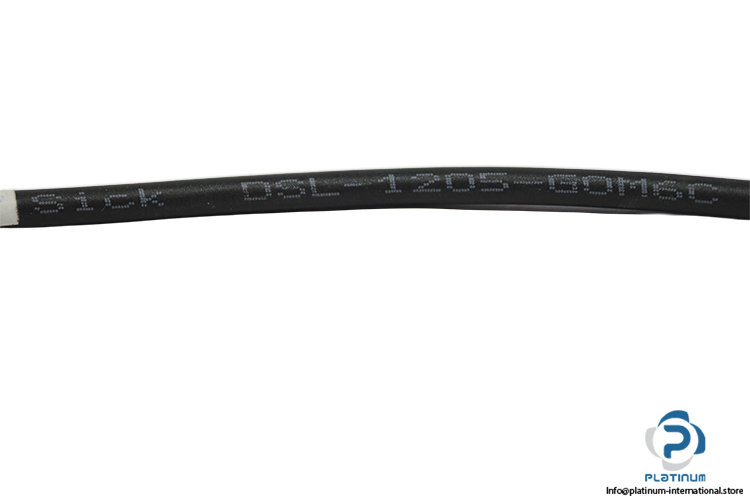

Model: DSL-1205-G0M6C
Part No.: 6025930

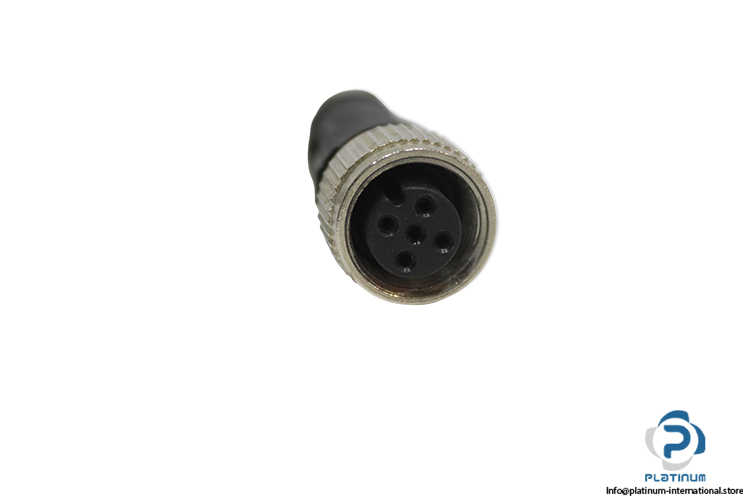

| Connection Type Head A | Female Connector, M12, 5-Pin, Straight |
| Connection Type Head B | Male Connector, M12, 5-Pin, Straight |
| Connector Material | TPU |
| Connector Color | Black |
| Locking Nut Material | Zinc Die-Cast, Nickel-Plated |
| Tightening Torque | 0.4 Nm |
| Cable Length | 0.6 m |
| Cable Type | 5-Wire, PUR, Halogen-Free |
| Jacket Material | PUR, Halogen-Free |
| Jacket Color | Black |
| Cable Diameter | 5 mm |
| Conductor Cross Section | 0.34 mm² |
| Shielding | Unshielded |
| Reference Voltage | 60 V |
| Current Loading | 4 A |
| Traversing Speed | 3 m/s |
| Travelling Distance | 10 m |
| Enclosure Rating | IP65 / IP67 / IP68 |
| Operating Temperature | Flexible Use ˆ’25 °C to +80 °C |
