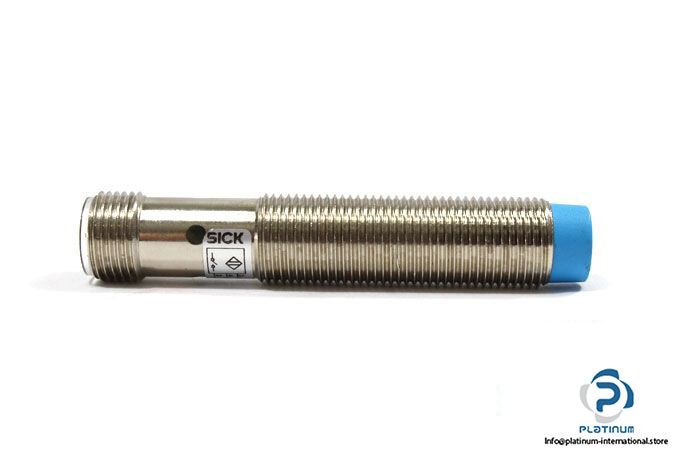

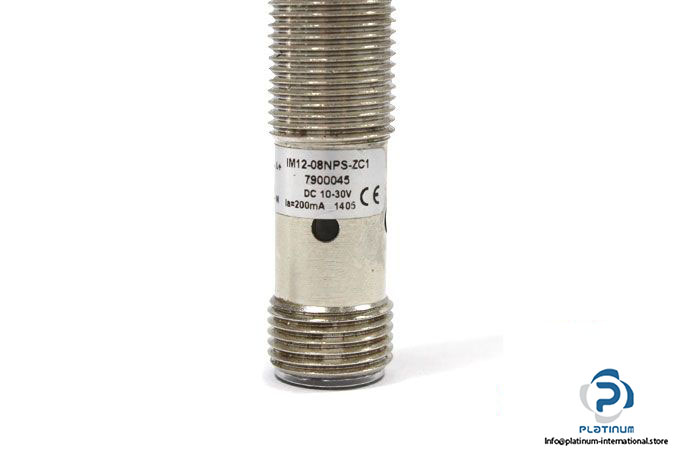

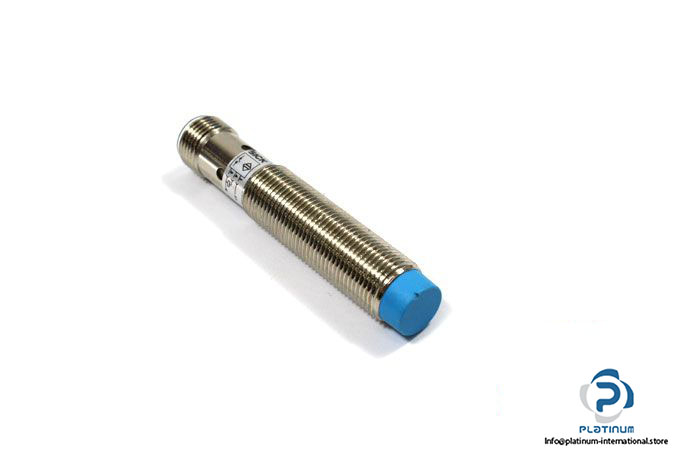

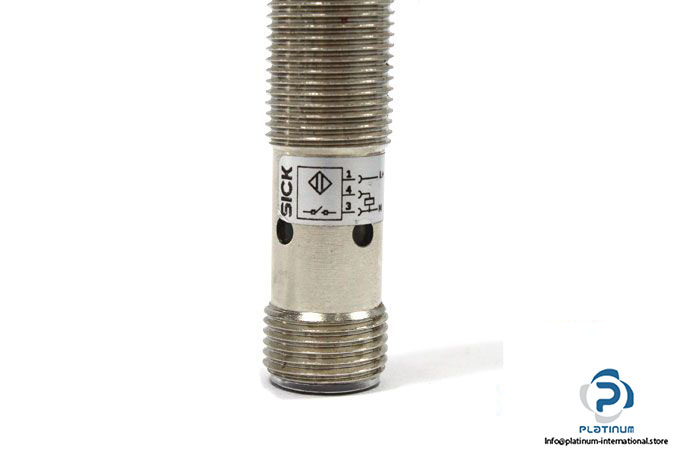

Sick IM12-08NPS-ZC1 Inductive Proximity Sensor

Manufacturer:  SICK

Type:  INDUCTIVE PROXIMITY SENSOR

Model : IM12-08NPS-ZC1

Part No.: 7900045

Assured Operating Distance: 8 mm

Operating Voltage: 10 … 30 V DC

Continuous Current: 200 mA

Current Consumption: 10 mA

Switching Frequency: 1000 Hz

Electrical Design: PNP

Switching Output: Normally Open

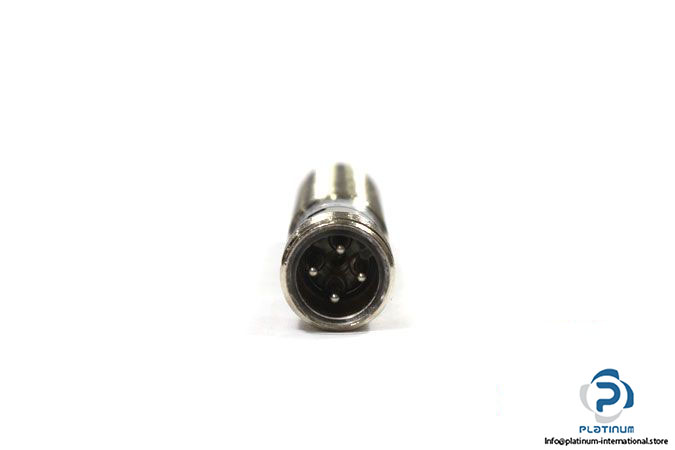

Connector Type: M12 Male Connector, 4-Pin

Enclosure Rating: IP67

Ambient Operating Temperature: -25 … 70°C

Housing Design: Cylindrical Thread

Diameter, Housing Length: 12 , 65 mm

Housing Material: Brass, Nickel Plated Brass

Sensing Face Material: Plastic

Mounting: Non-Flush Mountable
