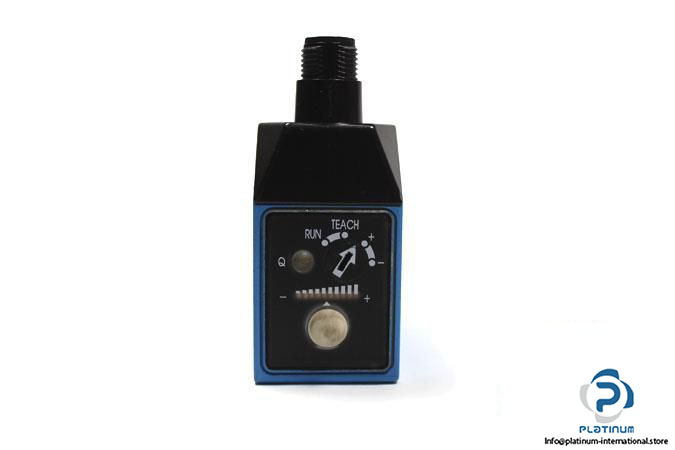

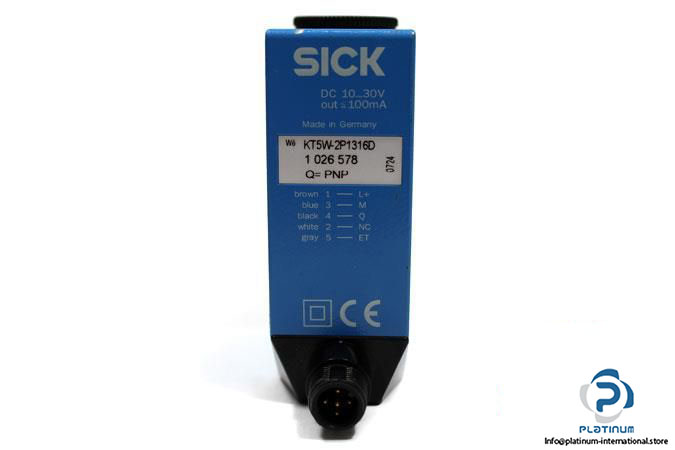

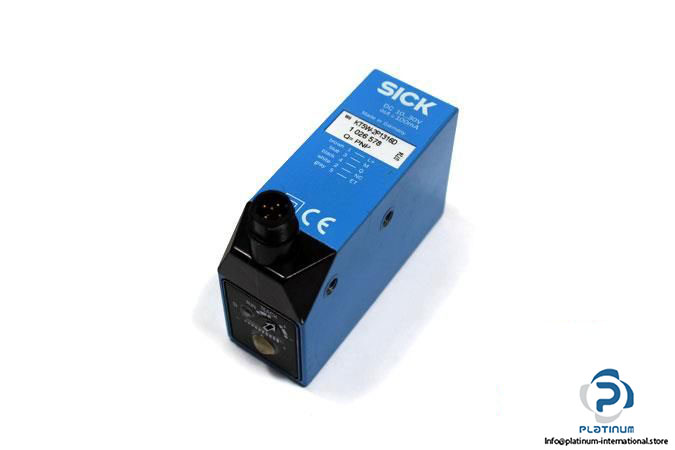

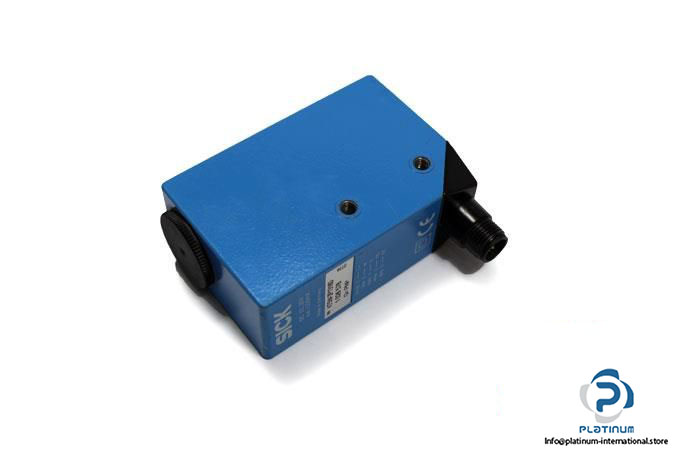

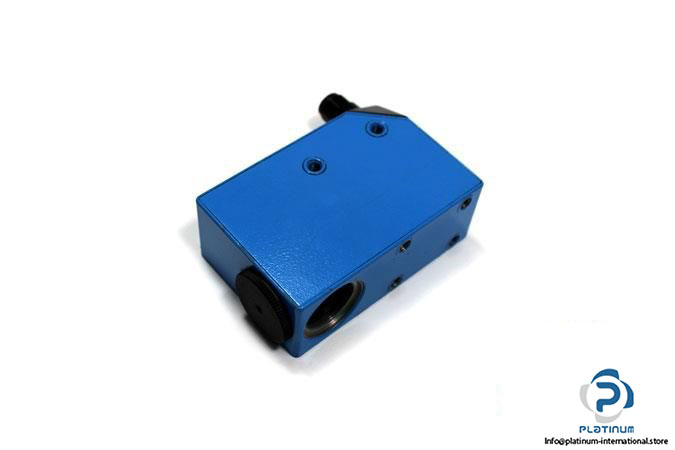

Sick KT5W-2P1316D Contrast Sensor
Manufacturer: SICK
Type: CONTRAST SENSOR
Model: KT5W-2P1316D
Part No.: 1026578
Sensing Distance: 40 mm
Sensing distance tolerance: ± 3 mm
Response time: 50 µs
Operating Voltage: 10 … 30 V DC
Ripple: ≤ 5 Vpp
Power consumption: ≤ 130 mA
Output current: 100 mA
Switching frequency: 10 kHz
Switching output: PNP
Retention time (ET): 25 ms, non-volatile memory
Wave length: 470 nm, 525 nm, 640 nm
Light spot size: 1.1 mm x 4.2 mm
Light spot direction: Vertical
Adjustment: Teach-in button
Connector type: Male connector M12, 5-pin
Protection class: II
Enclosure rating: IP67
Ambient Operating temperature: -10 … 55°C
Dimensions: 30.4 x 53 x 80 mm
Housing: Rectangular
Housing material: Metal, Zinc diecast
Weight: 400 g
Supplied items: mounting bracket
Condition: Used
