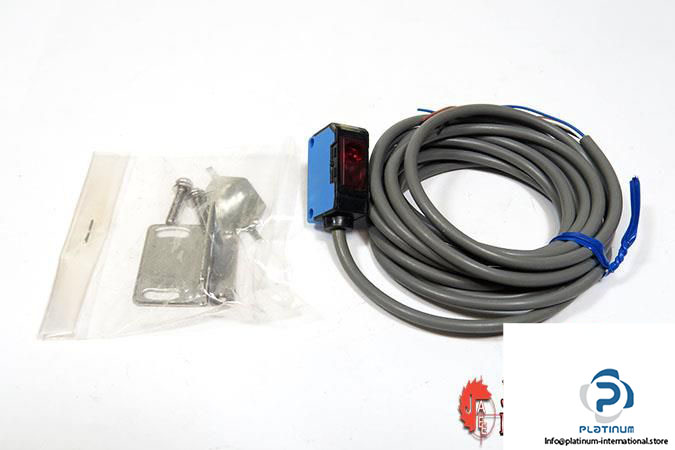

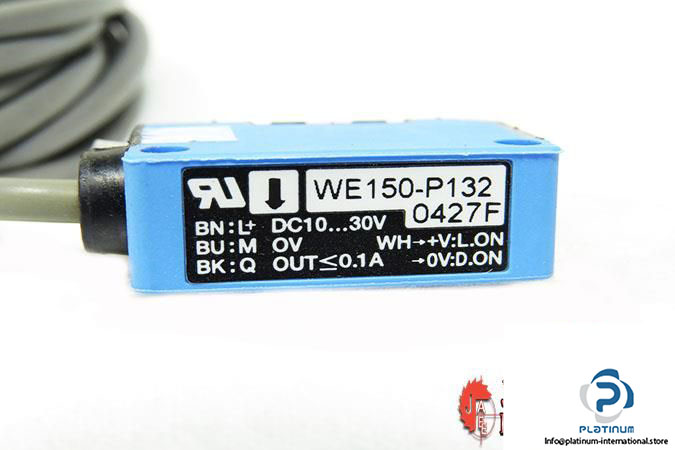

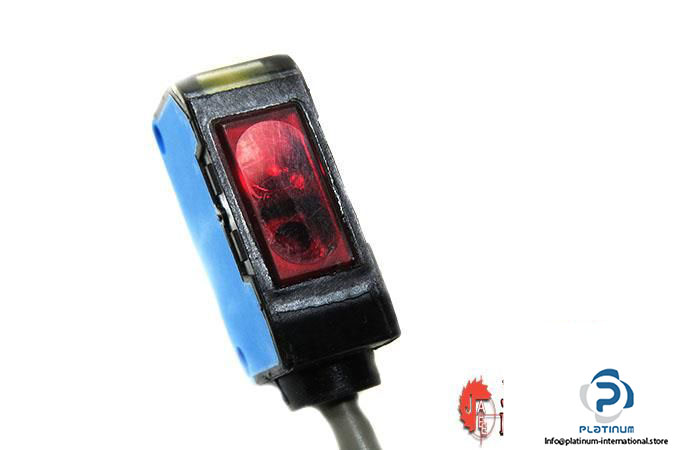

Sick WE150-P132 Through-Beam Photoelectric Sensor

Manufacturer: SICK

Type: THROUGH-BEAM PHOTOELECTRIC SENSOR

Model: WE150-P132

Set Part No.: 6011030

Configured with: WS150-D132

Sensing range max.: 0 m … 4.4 m

Supply Voltage: 10 … 30 V DC

Output Current: max 100 mA

Ripple: ± 10 %

Type of light: Visible red light

Light source: LED

Angle of dispersion: 6°

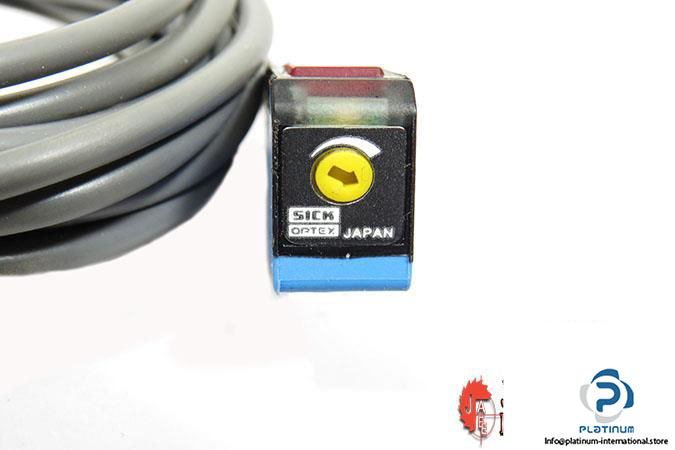

Adjustment: Potentiometer, 270

Power consumption: 20 mA

Switching output: PNP

Switching mode: Light/dark switching

Response time: ≤ 0.5 ms

Switching frequency: 1,000 H

Angle of reception: 15°

Connection Type: Cable, 4-wire, 2m

Conductor cross-section: 0.18 mm²

Dimensions (W x H x D): 10 mm x 28 mm x 17.5 mm

Weight: 44 g

Enclosure rating: IP67

Ambient storage temperature: –40 °C … +75 °C

Condition: New
