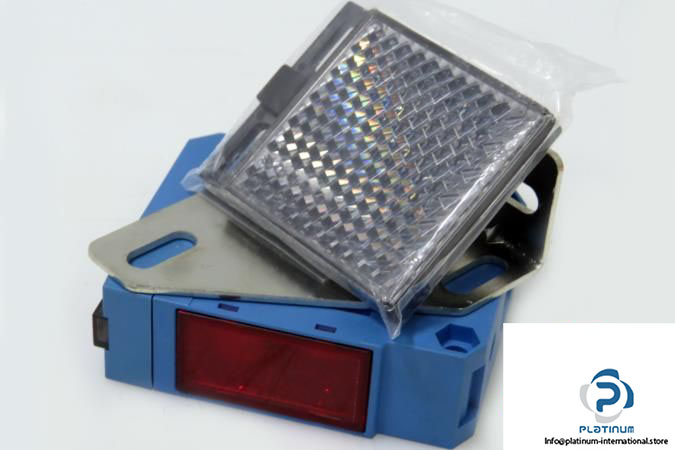

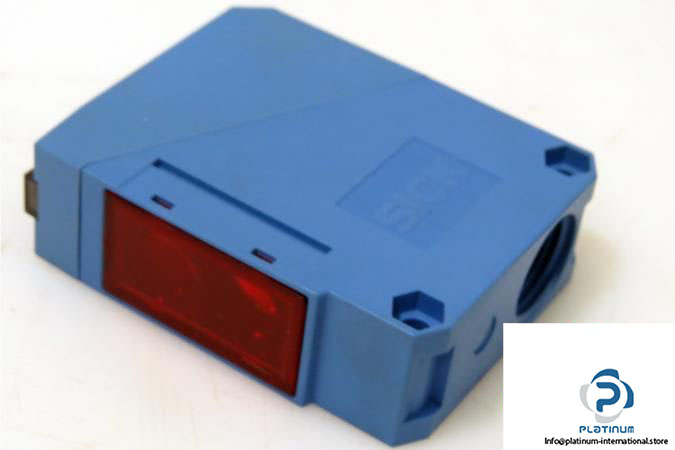

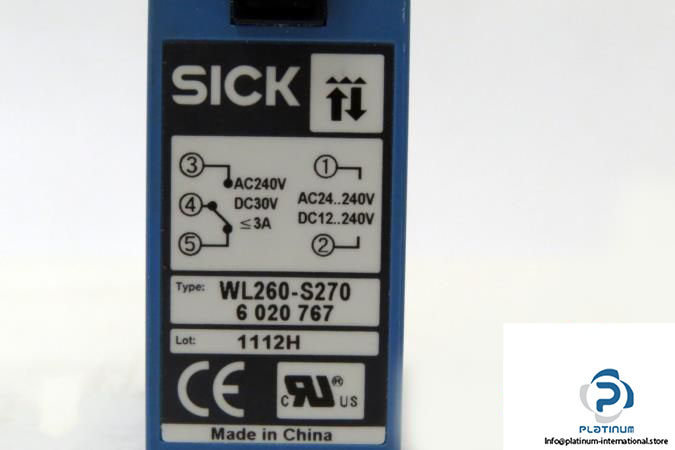

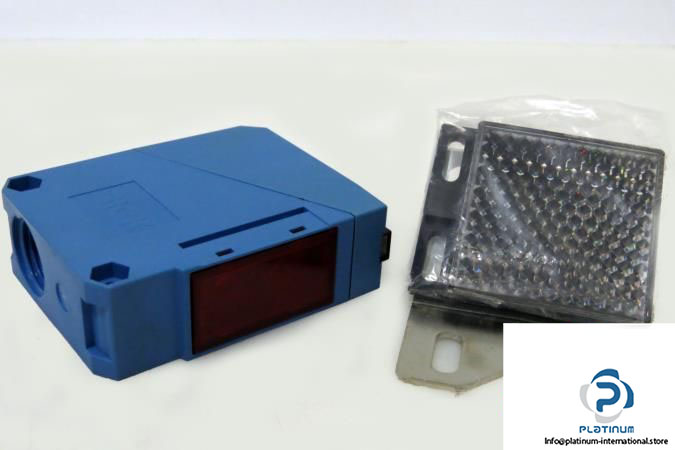

Sick WL260-S270 Photoelectric Retro-Reflective Sensor Dual Lens

Manufacturer : SICK

Type : Photoelectric retro-reflective sensor, Dual lens

Model : WL260-S270

Sensing range max. : 0.01 m … 15 m

Type of light : Visible red light

Light source : LED

Light spot size (distance) : Ø 300 mm

Angle of dispersion : Approx. 1.7°

Supply voltage : 12 V DC … 240 V DC

24 V AC … 240 V AC

Power consumption : ≤ 5 VA

Output type : Relay, electrically isolated

Output function    : Change-over contacts

Switching mode : Light switching

Switching current : 3A

Response time : ≤ 20 ms

Switching frequency : 25 Hz

Ambient operating temperature : –25 … +55 °C

Enclosure rating : IP67

Condition: New
