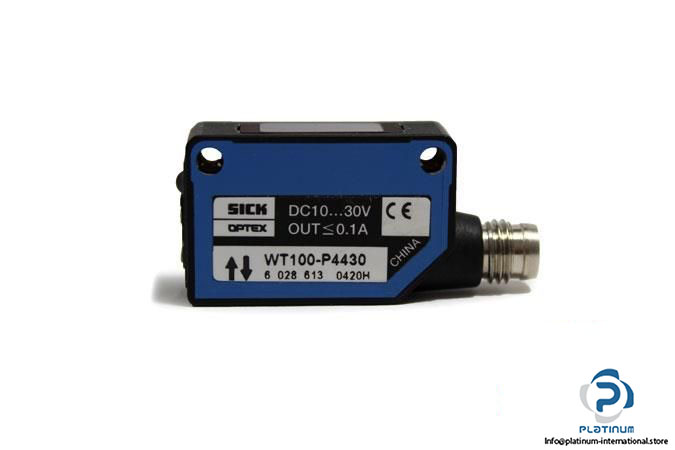

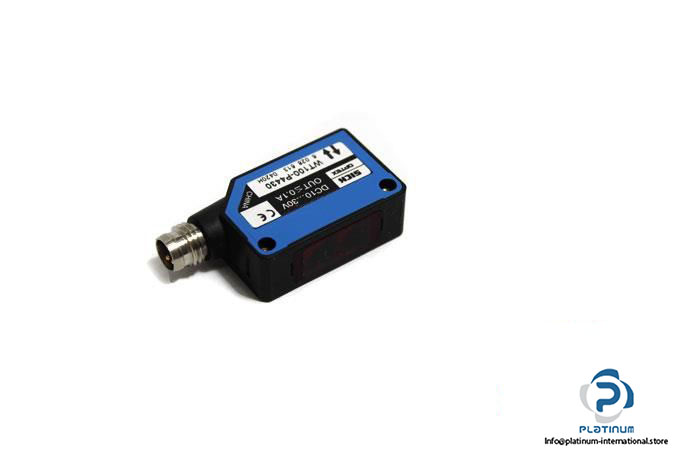

Sick WT100-P4430 Photoelectric Proximity Sensor, Energetic

Manufacturer: SICK
Type: PHOTOELECTRIC PROXIMITY SENSOR, ENERGETIC
Model: WT100-P4430
Part No.: 6028613

Sensing range max.: 0 … 900 mm
Sensing range: 0 … 700 mm
Response time: ≤ 0.5 ms
Operating Voltage: 10 … 30 V DC
Power consumption (without load): 30 mA
Output current: 100 mA
Switching frequency: 1000 Hz
Switching output: PNP
Switching mode: Light/dark switching
Wave length: 680 nm
Angle of dispersion: Approx. 6.8°
Light spot size, diameter: 55, 400 mm
Adjustment: Potentiometer, 270°

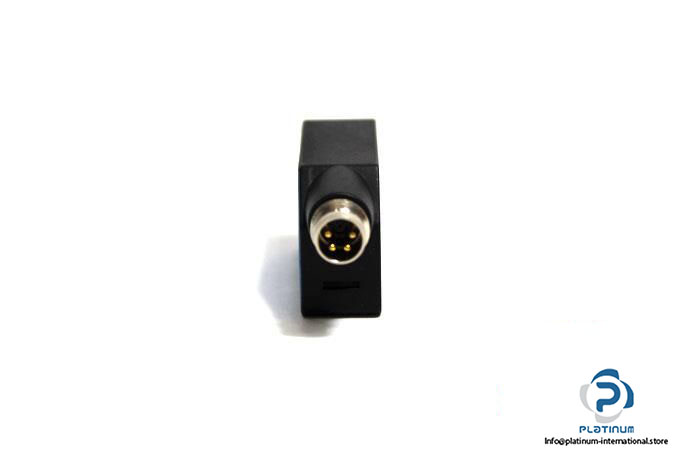

Connector type: Male connector M8, 4-pin
Enclosure rating: IP65
Ambient Operating temperature: -25 … 55°C
Dimensions: 11 X 31 X 20 mm
Housing: Rectangular
Housing material: Plastic, ABS/PC/POM
Sensing face material: Plastic, PMMA
Weight: 9 g

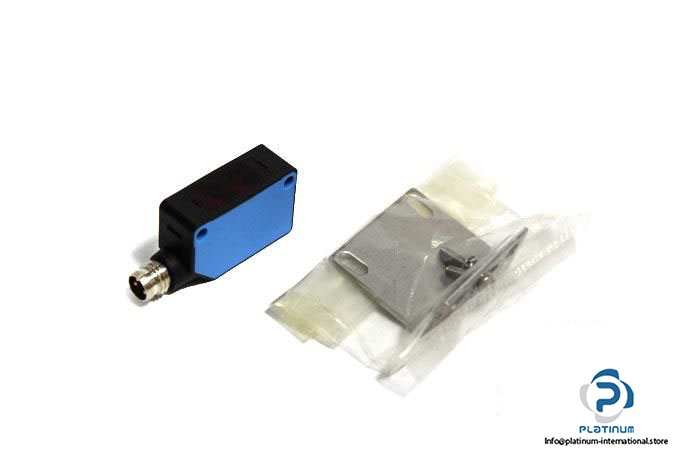

Supplied items: BEF-W100-A Stainless steel mounting bracket
Condition: New
