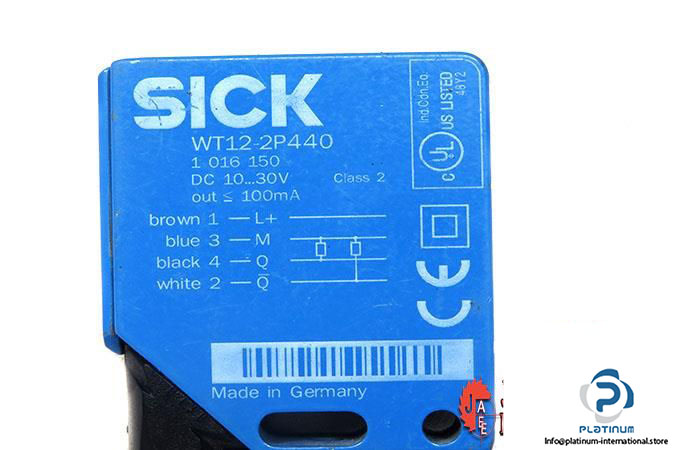

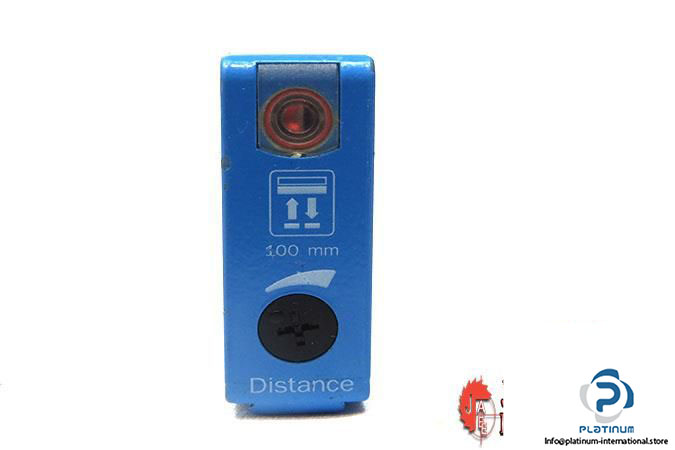

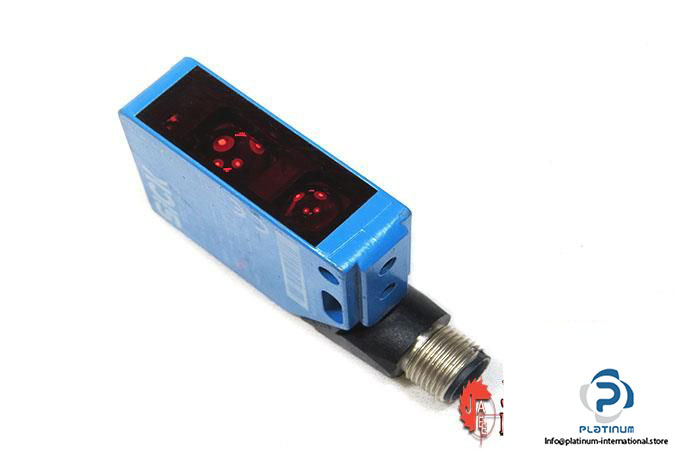

Sick WT12-2P440 Photoelectric Proximity Sensor

Manufacturer: SICK

Type: PHOTOELECTRIC PROXIMITY SENSOR

Model: WT12-2P440

Part No: 1016150

Detection Principle: Foreground suppression

Sensing range: 35 mm … 100 mm

Supply Voltage: 10 … 30 V DC

Output Current: max 100 mA

Type of light: Visible red light

Light source: LED

Adjustment: Potentiometer

Switching Output: PNP

Switching mode: Light/dark switching

Response time: ≤ 330 µs

Ripple: ≤ 5 Vpp

Power consumption: ≤ 30 mA

Enclosure rating: IP69K

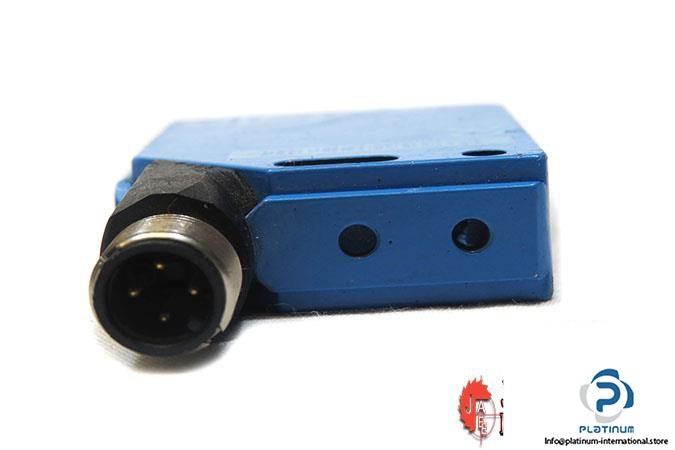

Connection type: Male connector M12, 4-pin

Dimensions (W x H x D): 15 mm x 49 mm x 41.5 mm

Ambient operating temperature: -40 °C … +60 °C

Weight: 75 g
