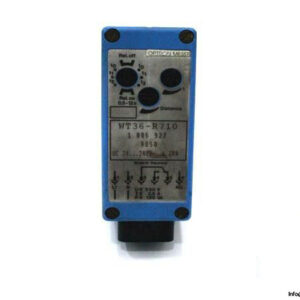

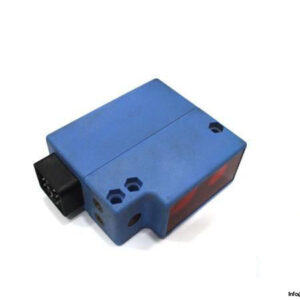

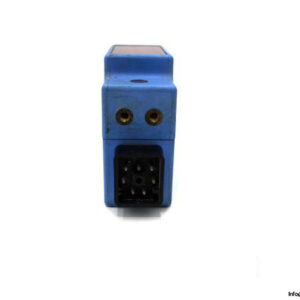

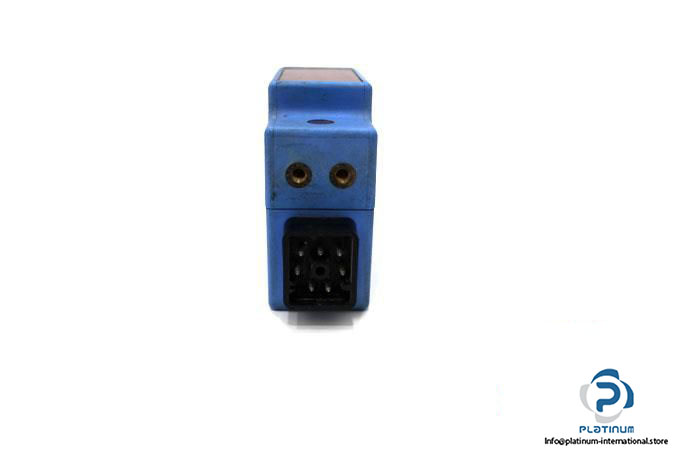

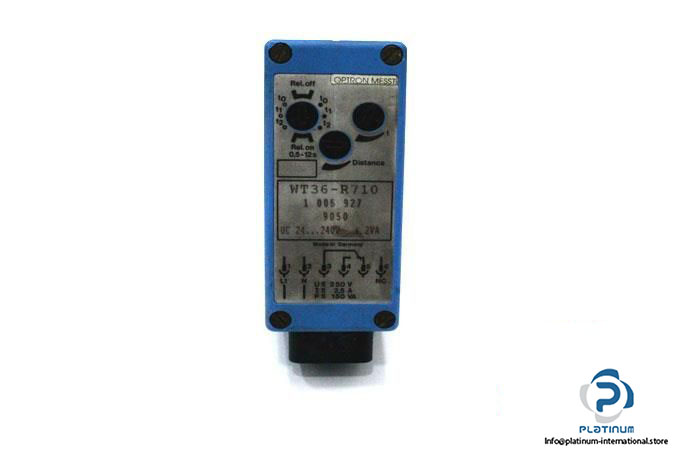

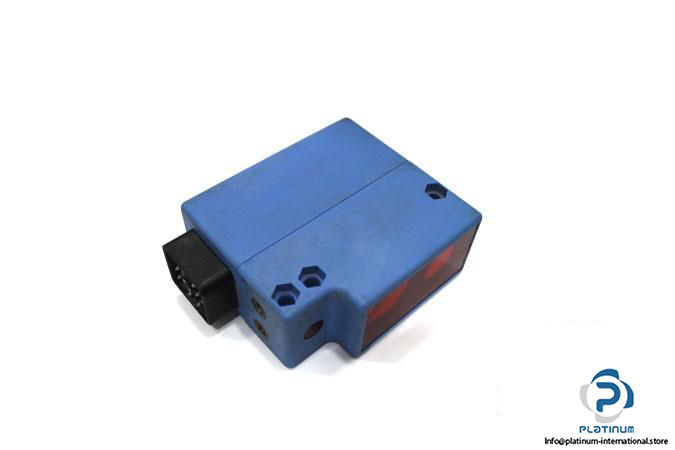

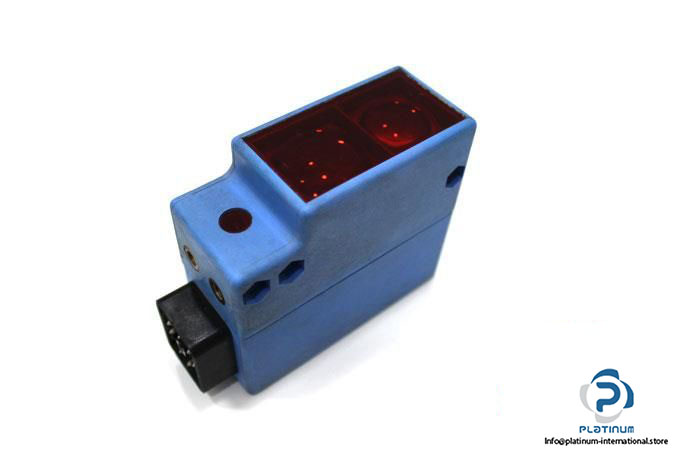

Sick WT36-R710 Photoelectric Proximity Switch

Manufacturer: SICK
Type: PHOTOELECTRIC PROXIMITY SWITCH
Model: WT36-R710
Part No.: 1005927

Sender in lower lens, receiver in upper lens
Sensing Range: 200 … 800 mm
Response time: 6 ms
Delay time: Adjustable via Time delay selector switch
Operating Voltage: 24… 240 V AC/DC
Ripple: ≤ 5 V_SS
Switching frequency: 10/s
Continuous current: 4 A / 240 V AC or 24 V DC
Switching output: Provide suitable spark suppression for
inductive or capacitive loads
Light source: LED, Infrared light
Connector type: Q7, 7-pin, AC/UC
Protection class: II
Enclosure rating: IP65
Ambient Operating temperature: -25 … 55°C
Dimensions: 36 x 77 x 85 mm
Weight: 200 g
Housing: Rectangular
Housing material: Glass-fiber reinforced plastic
Sensing face material: Plastic
Condition: Used
