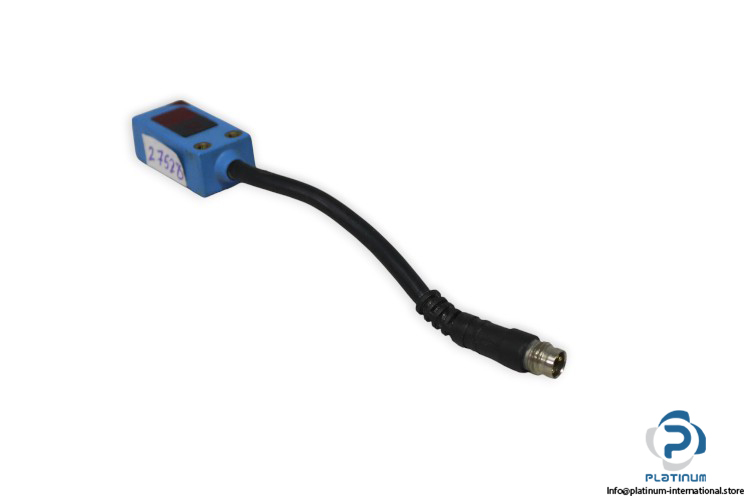

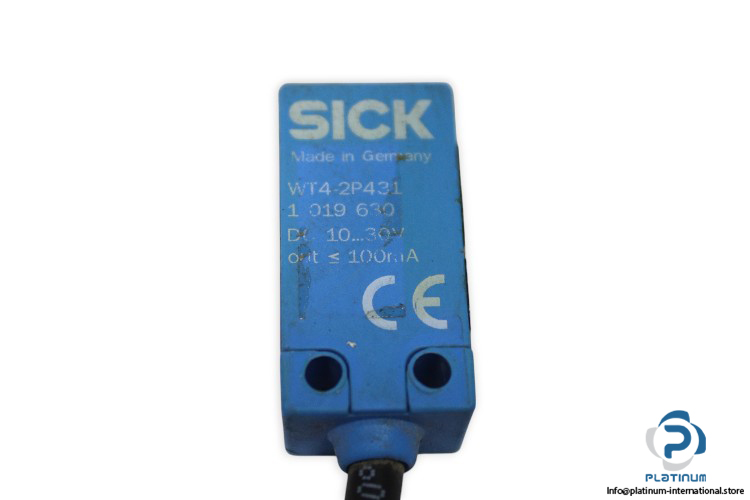

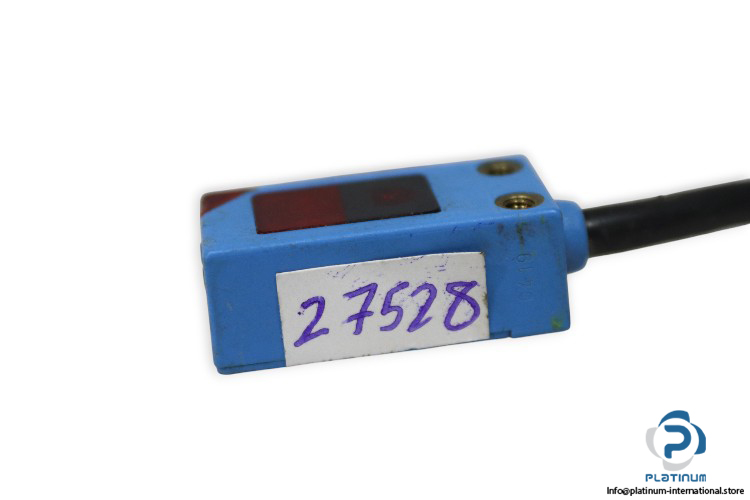

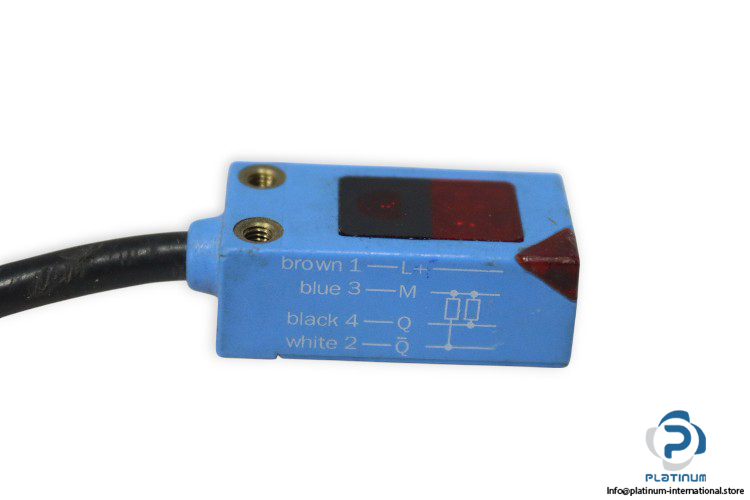

Sick WT4-2P431 Photoelectric Proximity Sensor

Manufacturer: SICK

Type: Photoelectric Proximity Sensor

Model: WT4-2P431

Part No.: 1019630

The SICK WT4-2P431 is a compact and reliable photoelectric proximity sensor designed for high-performance object detection in industrial automation systems. With a rugged rectangular housing and precise light/dark switching mode, it ensures optimal detection even in challenging environments. The sensor features a user-friendly single teach-in button and cable adjustment for easy installation and configuration.

• Supply Voltage: 10 V DC … 30 V DC
• Current Consumption: 20 mA
• Switching Mode: Light/Dark Switching
• Housing Design (Light Emission): Rectangular
• Light Source: LED
• Adjustment: Cable, Single Teach-In Button
• Housing Material: Plastic, ABS
• Optics Material: Plastic, PMMA
• Enclosure Rating: IP67
• Ambient Operating Temperature: -40 °C to 60 °C
• Dimensions (W x H x D): 16 mm x 32 mm x 12 mm
