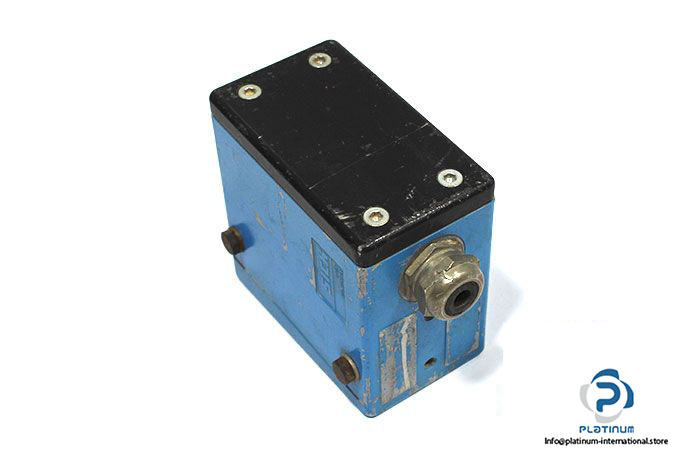

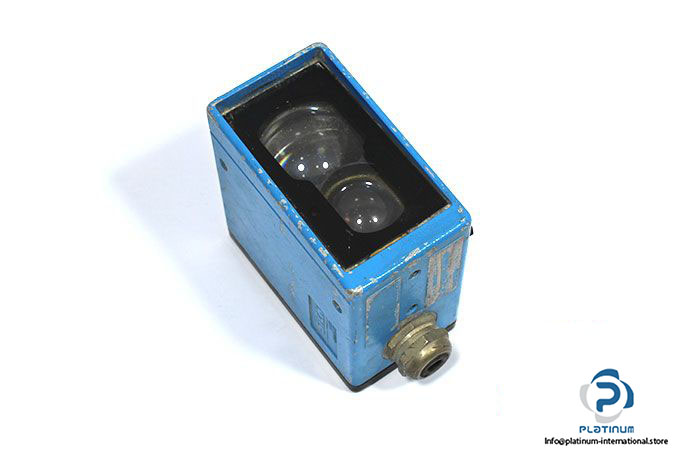

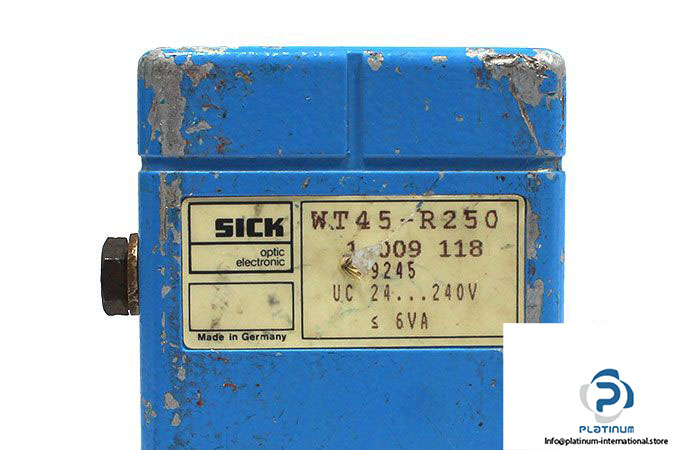

Sick WT45-R250 Photoelectric Sensor

Manufacturer: SICK

Type: Photoelectric Proximity Sensor, Background Suppression

Model: WT45-R250

Part No.: 1009118



Sensing Range Sn: 200 … 2000 mm

Supply Voltage: 20 … 250 V AC/DC

Power Consumption: ≤ 6 VA

Switching Frequency: 10 Hz

Switching Output: Relay, Electrically Isolated

Switching Mode: Light / Dark Switching

Output Function: Change-Over Contacts

Time Functions: On delay / Off delay / ON and OFF delay

Housing Design: Rectangular

Connection Type: Terminal Connection with PG13,5, 6-Pin

Ambient Operating Temperature: -25 … 55 °C

Enclosure Rating: IP67

Dimensions (W x H x D): 60 x 105 x 105 mm

Adjustment: Potentiometer

Housing Material: Metal
