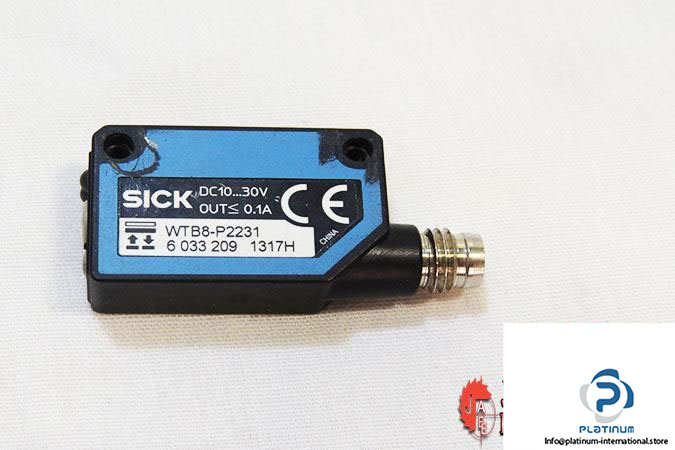

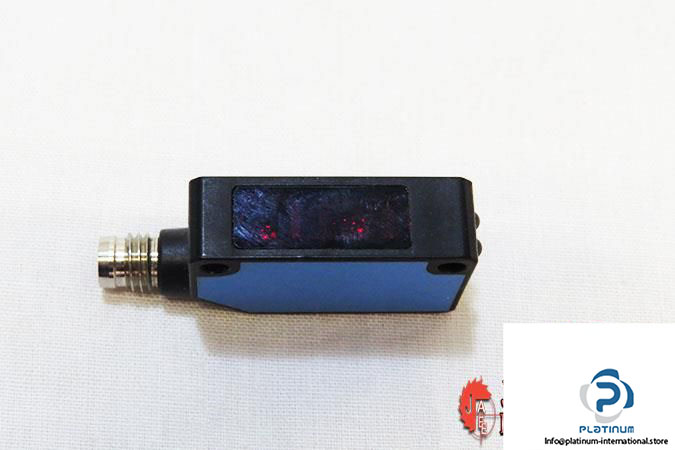

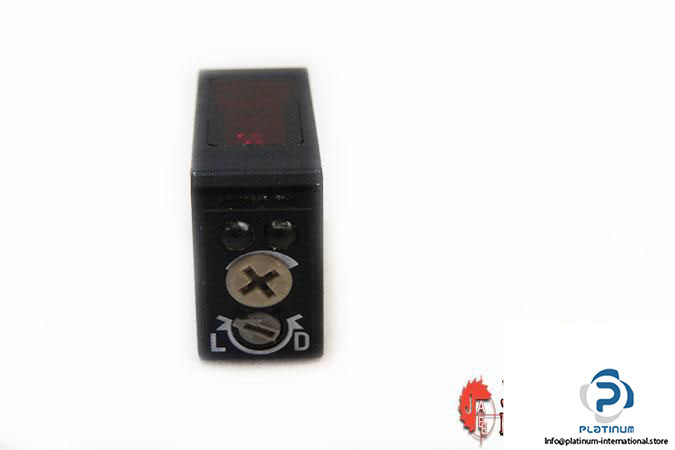

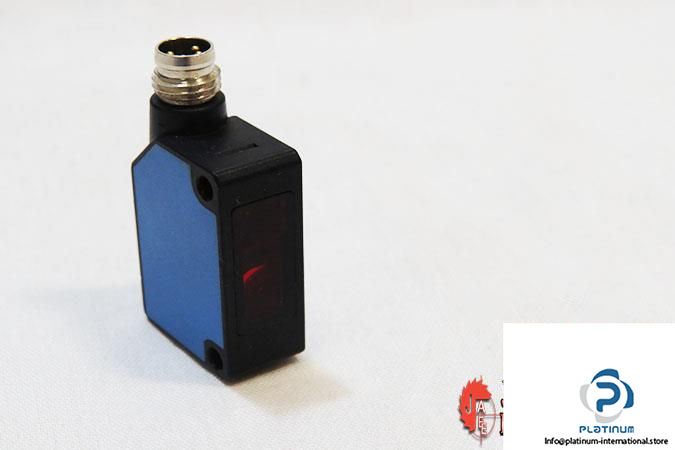

Sick WTB8-P2231 Photoelectric Proximity Sensor
25,00$
Fotoelektrischer Sensor SICK WTB8-P2231 fotoelektrischer Näherungssensor mit Hintergrundunterdrückung, 30“300 mm Erfassungsbereich, PNP-Ausgang und schneller 0,5 ms Reaktionszeit für präzise industrielle Detektion.
SICK WTB8-P2231 Photoelectric Proximity Sensor
The SICK WTB8-P2231 photoelectric proximity sensor with background suppression is designed for precise and reliable object detection in industrial automation applications. Utilizing visible red light and advanced sensing technology, this sensor ensures accurate detection regardless of background variations, making it ideal for high-speed and precision environments.
Manufacturer: SICK
Type: Photoelectric Proximity Sensor, Background Suppression
Model: WTB8-P2231
Part No.: 6033209
| Sensing Range Max. | 30 mm / 300 mm |
| Sensing Range | 40 mm / 300 mm |
| Type Of Light | Visible Red Light |
| Light Source | LED |
| Light Spot Size (Distance) | Ø 20 mm (300 mm) |
| Wave Length | 650 nm |
| Ripple | ± 10 % |
| Supply Voltage | DC 10 / 30 V |
| Output Current | ‰¤ 100 mA |
| Power Consumption | ‰¤ 30 mA |
| Switching Output | PNP |
| Response Time | ‰¤ 0.5 ms |
| Switching Frequency | 1,000 Hz |

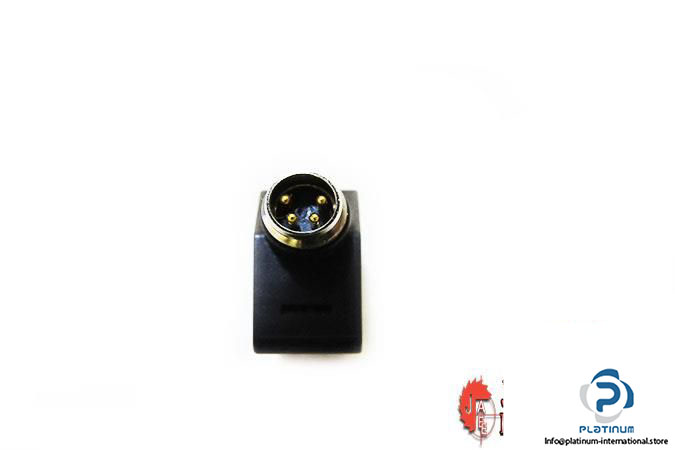

| Connection Type | Connector M8, 4-Pin |
| Enclosure Rating | IP67 |
| Ambient Operating Temperature | “25 °C / +55 °C |
