Siemens 1FT5074-0AF71-2 Synchronous Servo Motor
Gebraucht
Auf Lager4 EinheitenVersandbereit
1 400,00$
SYNCHRONOUS SERVO MOTOR
Siemens 1FT5074-0AF71-2 synchronous servo motor offers 14 Nm rated torque and 3000 rpm speed at 366 V. Built for S1 continuous duty, it ensures accurate performance in IP64-protected environments.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

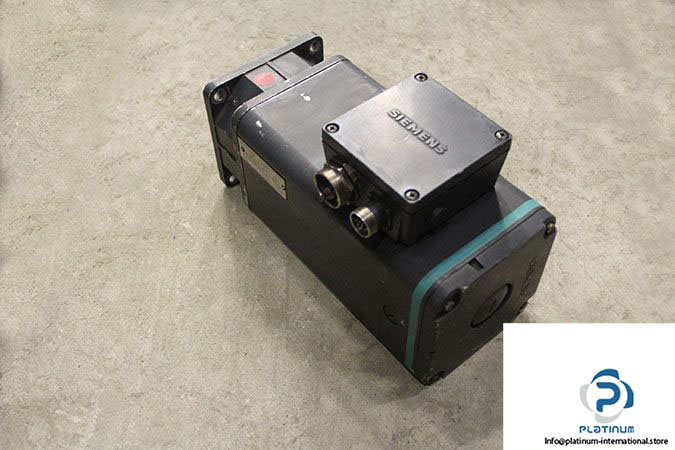

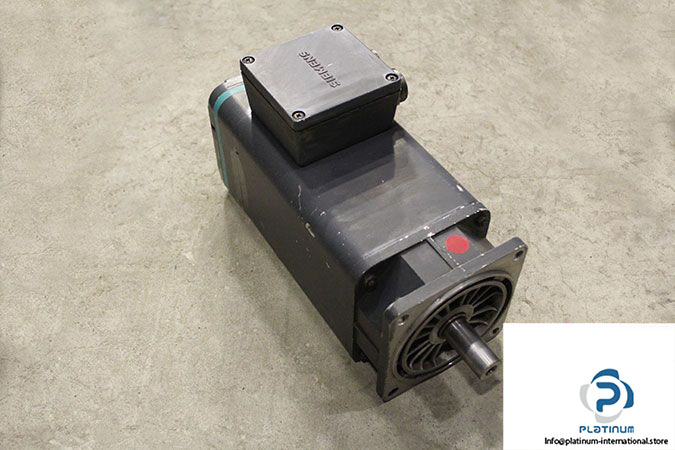

SIEMENS 1FT5074-0AF71-2 SYNCHRONOUS SERVO MOTOR
The Siemens 1FT5074-0AF71-2 is a high-precision synchronous servo motor engineered for continuous-duty industrial operations. It delivers strong torque performance with high reliability and is ideal for demanding automation environments.

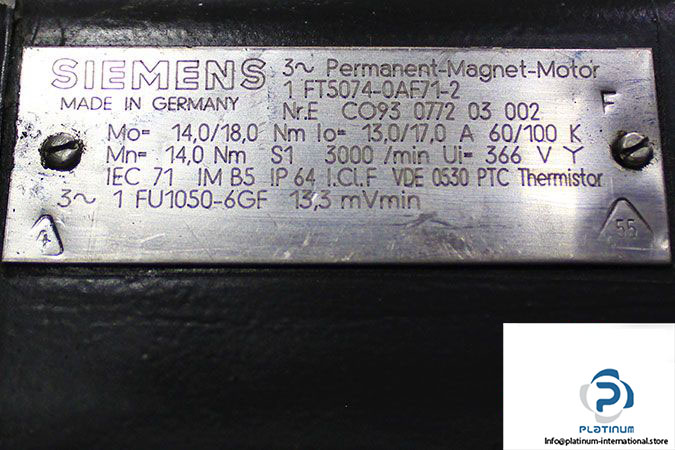

Manufacturer: Siemens
Type: Synchronous Servo Motors
Model: 1FT5074-0AF71-2
Part No.: CO93 0772 03 002
Series: 5
| Frame Size | 07 |
| Length | 4 |
| Rated Voltage | 366 V |
| Rated Torque | 14 Nm |
| Rated Speed | 3000 rpm |
| Standstill Current | 13 / 17 A |
| Standstill Torque | 14 / 18 Nm |
| Constant Voltage | 13.3 mVmin |
| Duty | S1 Continuous |
| Mounting Position | IM B5 |
| Protection Class | IP64 |
| Thermal Class | F |
| Tacho Generator | 1FU1050-6GF |
