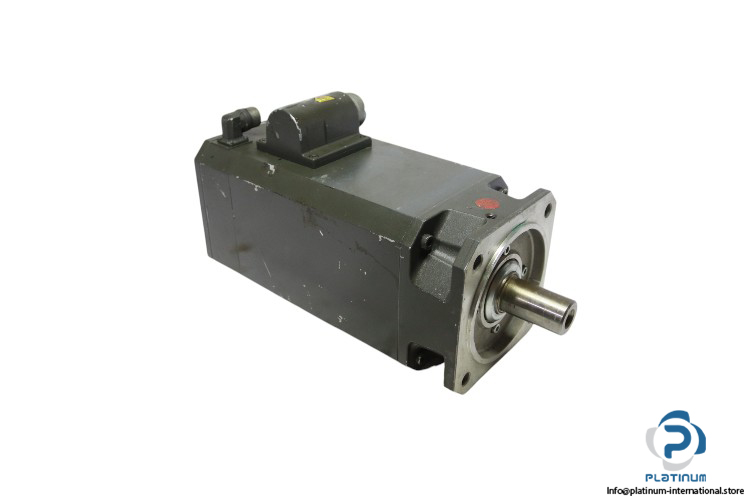

Siemens 1FT6084-1AF71-3AH1 Servomotor
Gebraucht
Auf Lager1 EinheitVersandbereit
SERVOMOTOR
High-performance Siemens servomotor with 14.7 Nm rated torque, 3000 RPM speed, natural cooling, and integrated brake system”ideal for precise industrial automation applications.1FT6084-1AF71-3AH1291V3000AutomationConstructionCoolingDriveEncoderHighIC2048SIMB5IndustrialmotorNaturalrpmServoServomotorSiemensTorque
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
SIEMENS 1FT6084-1AF71-3AH1 SERVOMOTOR
This Siemens servomotor is engineered for high-precision motion control in demanding industrial applications. With a compact frame size, natural cooling, and powerful braking capability, it provides reliable torque and speed performance for automation systems.
Manufacturer: Siemens
Type: Servomotor
Model: 1FT6084-1AF71-3AH1
Part No. YF.: J8637 2499 01 001
Code: RN 004
| Frame Size | 8 |
| Length | 4 |
| No of Poles | 1 |
| Cooling Method | A, Natural cooling |
| Type of Construction | IMB5 |
| Rated Current [A] | 11 |
| Stall Current [A] | 13.2 |
| Rated Torque [Nm] | 14.7 |
| Stall Torque [Nm] | 20.0 |
| Rated Voltage [V] | 291 |
| Rated Speed [min»¹] | 3000 |
| Max. Speed [min»¹] | 7900 |
| Protection Class [IP] | 65 |
| Thermal Class | F |
| Encoder | IC2048S/R B35 |
| Brake Voltage [Vdc] | 24 |
| Brake Power [W] | 22 |
| Brake Torque [Nm] | 28 |
