Siemens 1LA6 253-8AB70Z 250M 3 Phase Electric Motor
Neu
Auf Lager1 EinheitVersandbereit
Electric Motor
Siemens 1LA6 253-8AB70Z 250M Electric Motor offers 29 kW rated power at 50Hz and 34.5 kW at 60Hz. With a frame size of 250M, it operates at 730 min-1 at 50Hz and 878 min-1 at 60Hz, delivering high efficiency and performance.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

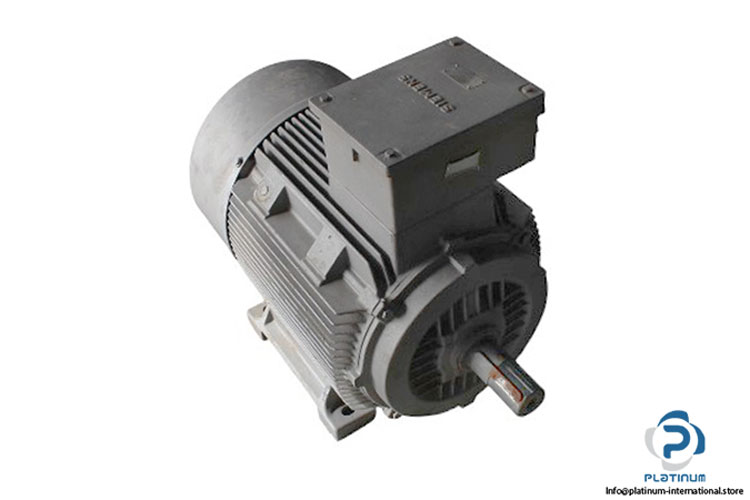

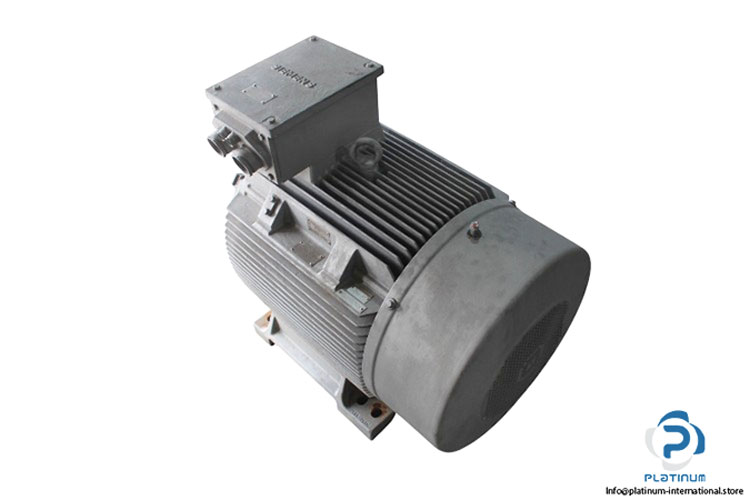

Siemens 1LA6 253-8AB70Z 250M Electric Motor
The Siemens 1LA6 253-8AB70Z 250M Electric Motor is a robust and efficient motor designed for high performance in various industrial applications. With a rated power of 29 kW at 50Hz and 34.5 kW at 60Hz, it provides reliable operation and power efficiency.
Manufacturer: Siemens
Type: Electric Motor
Model: 1LA6 253-8AB70Z 250M
Siemens Anti-Condensation Heating 311762-1991

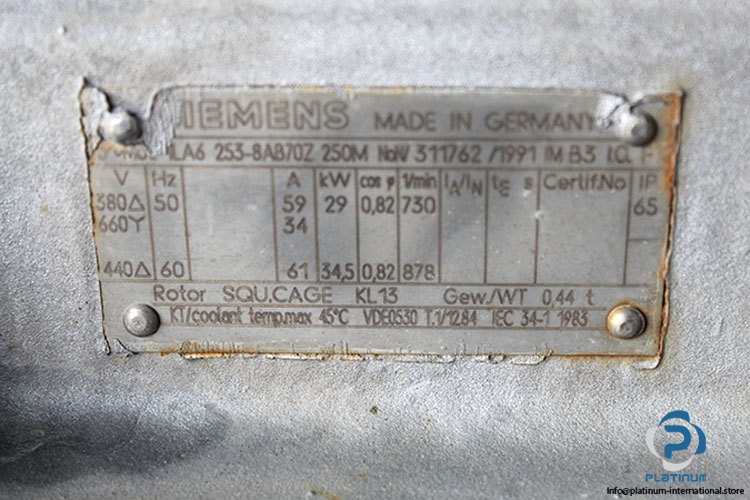

| Frame Size | 250 M |
| Rated Voltage at 50Hz | 380/660 Delta/Star |
| Rated Current | 59 A (380 V) / 34 A (660 V) |
| Rated Power | 29 kW |
| Rated Speed | 730 min-1 |
| Power Factor | 0.82 |
| Mounting Position | B3 |
| Protection Class | IP 65 |
| Insulation Class | F |
| Rated Voltage at 60Hz | 440 V Delta |
| Rated Current at 60Hz | 61 A |
| Rated Power at 60Hz | 34.5 kW |
| Rated Speed at 60Hz | 878 min-1 |
| Max. Temperature | 45°C |

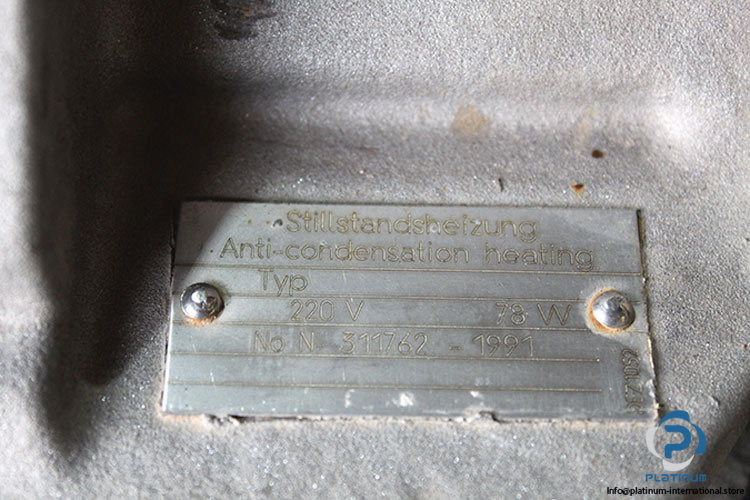

| Attachment | SIEMENS 311762-1991 Anti-Condensation Heating |
| Part No. | 311762-1991 |
| Voltage | 220 V |
| Power | 78 W |
