Protection & Control Fuses & Fuse Holders

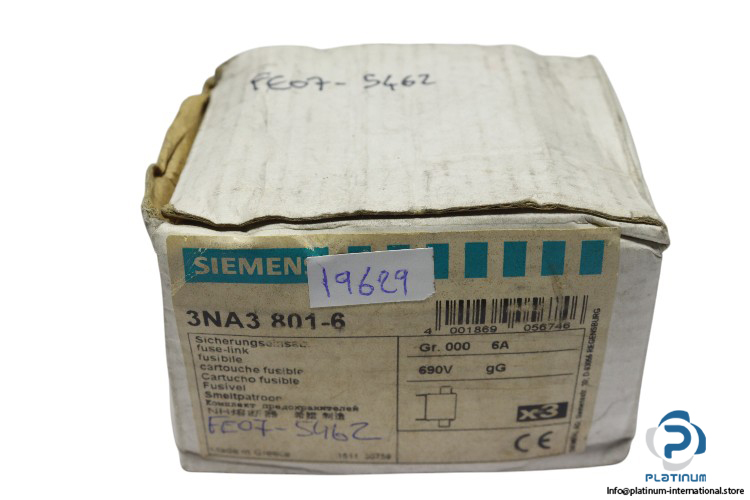

Siemens 3NA3 801-6 Fuse Link

Name: SIEMENS 3NA3 801-6 FUSE LINK
SKU: 1075224
Availability: LimitedAvailability

Neu

Auf Lager1 EinheitVersandbereit

Sicherungselement Das Siemens 3NA3 801-6 SENTRON Sicherungselement verfügt über die Größe NH00, einen Nennstrom von 6A und Schutzart IP20 und gewährleistet einen zuverlässigen Schutz von Stromkreisen für industrielle Anwendungen.

Hersteller

SIEMENS

SKU

1075224

Kategorie

Fuses & Fuse Holders

Zustand

Neu

250V 3NA3 690V 6A 801-6 AC Breaking Capacity Circuit dc Fuse High HRC Industrial IP20 Link LV NH00 Protection Sentron Siemens

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

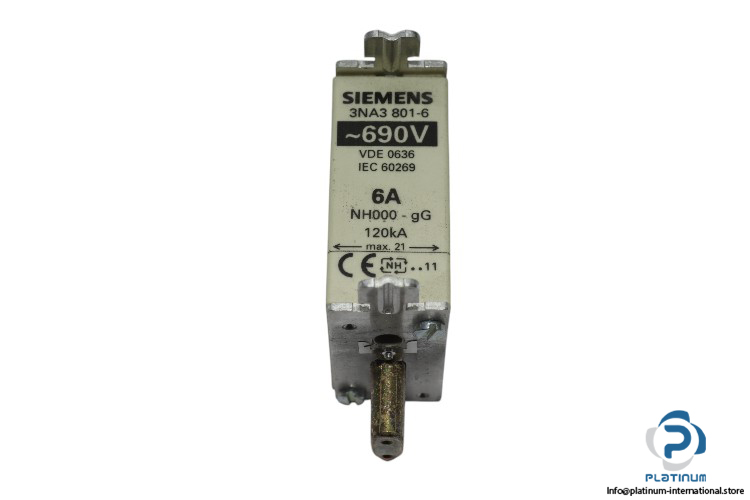

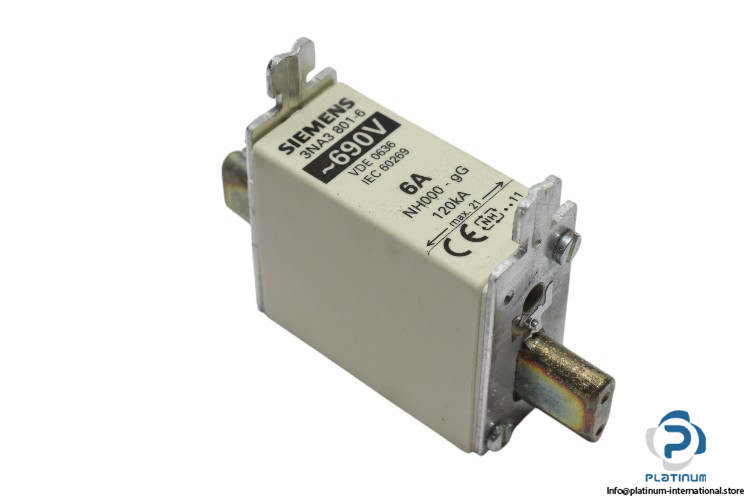

Siemens 3NA3 801-6 SENTRON Fuse Link

The Siemens 3NA3 801-6 SENTRON Fuse Link is a high-performance LV HRC fuse designed for effective circuit protection in industrial and electrical applications. With a rated current of 6A, a breaking capacity of 120 kA at AC, and front identification indicators, this fuse ensures reliable safety and operation.

Manufacturer: Siemens

Type: Fuse Link

Part No.: 3NA3 801-6

Brand Name: SENTRON

Size: NH00

Designation: LV HRC Fuse Link

Rated Current	6 A
Supply Voltage	690 V AC / 250 V DC
Breaking Capacity @ AC	120 kA
Breaking Capacity @ DC	25 kA
Power Loss	1.36 W
Operating Class	gG
Mounting Type	Non-Insulated Grip Lugs
Mounting Position	Any, Preferably Vertical
Identification Indicator	Front Indicators
Protection Proof	IP20
Width	21 mm
Ambient Temperature	-5 to 40Â°C
