Siemens 3NE3 227 250A-1000V Fuse-Link
Gebraucht
Auf Lager2 EinheitenVersandbereit
Fuse-Link
Siemens SENTRON 3NE3227 fuse-link with NH1 size, SITOR LV HRC design, 1000 Vac, 250 A, aR operating class, and 100 kA switching capacity for secure industrial protection.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

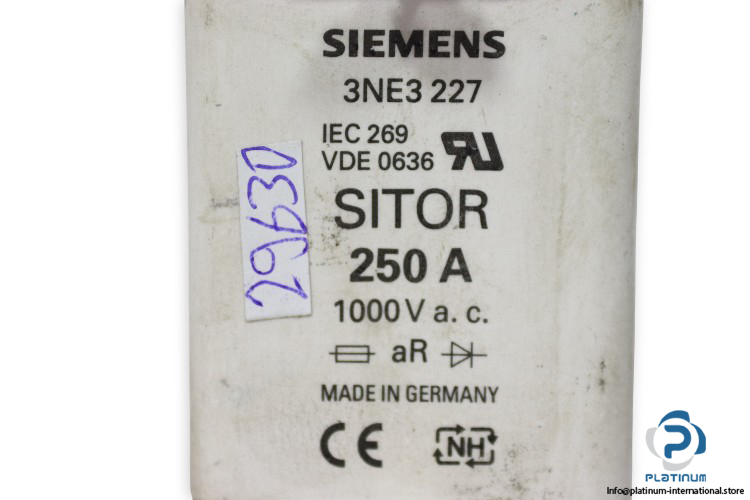

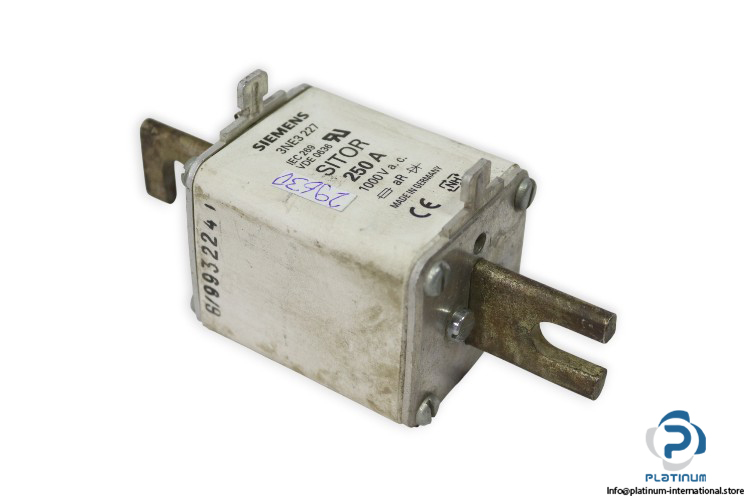

Siemens SENTRON 3NE3227 Fuse-Link
The Siemens SENTRON 3NE3227 is a high-performance fuse-link designed for reliable circuit protection in industrial applications. Built with SITOR LV HRC design, it provides secure operation with excellent switching capacity and durability.
Manufacturer: Siemens
Type: Fuse-Link
Product Brand Name: SENTRON
MRN: 3NE3227
| Design of an Identification Indicator | Front Indicator |
| Design of the Fuse Link | SITOR, LV HRC Design |
| Size of Fuse System / acc. to DIN EN 60269-1 | NH1 |
| Operating Class of the Fuse Link | aR |
| Circuit-Breaker / Design | 3NE |
| Operating Voltage | 1000 Vac |
| Rated Operating Current | 250 A |
| Varying Load Factor (WL) | 0.95 |
| Switching Capacity Current acc. to IEC 60947-2 / Rated Value | 100 kA |
| Active Power Loss for Rated Current / with AC / in Hot Operating State / per Pole | 50 W |
| Temperature Range | -20 / 50 °C |
| Standard | IEC 269, VDE 0636 |
