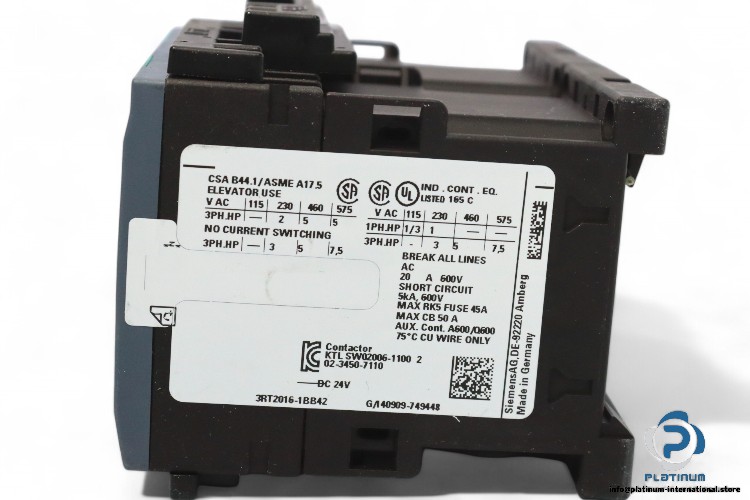

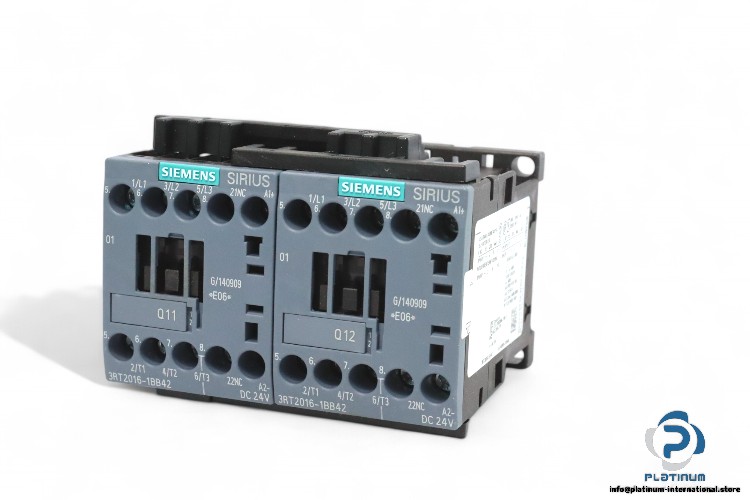

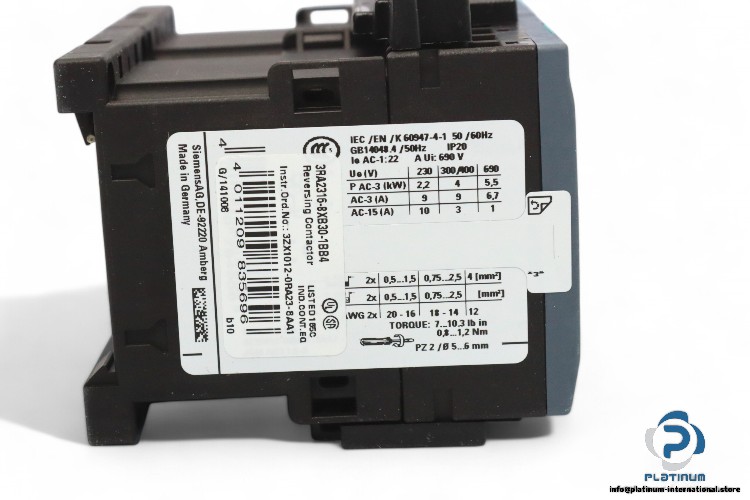

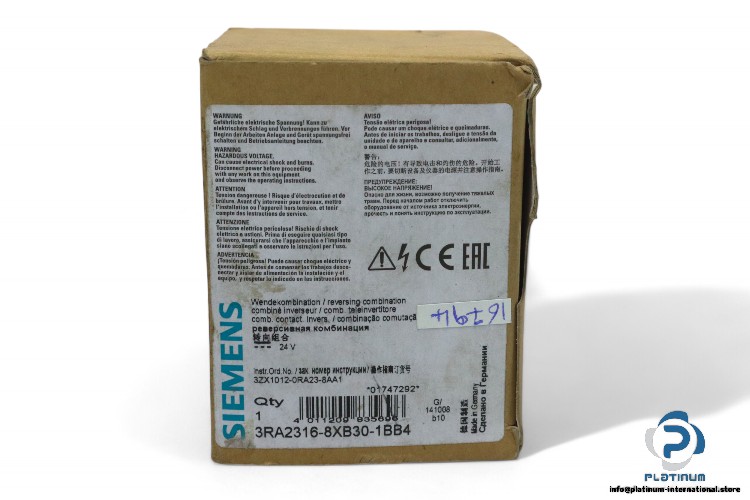

Siemens 3RA2316-8XB30-1BB4 Reversing Contactor Assembly
Neu
Auf Lager1 EinheitVersandbereit
Siemens Umschalt-Schütz Baugruppe 3RA23168XB301BB4 mit einer Steuerspannung von 24 V DC, Betriebsstrom von 9 A und einem Schutzgrad IP20. Entwickelt für zuverlässige Motorsteuerung in industriellen Umgebungen.
24assemblyconnectionContactorControldcElectricalIndustrialIP20motorReversingScrew-typeSiemensTerminalsVvoltage
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
Siemens Reversing Contactor Assembly 3RA23168XB301BB4
Siemens Reversing Contactor Assembly 3RA23168XB301BB4 is a reliable and efficient solution for controlling motor circuits in industrial environments. Below are the key technical specifications:
- Manufacturer: Siemens
- Type: Reversing Contactor Assembly
- MNR: 3RA23168XB301BB4
Technical Data:
- Size: S00
- Control Voltage: 24 V DC
- Operational Current at AC-3: 9 A
- Operating Voltage AC-3, AC-3e: 690 V
- Operating Power at 400 V: 4 KW
- Electrical Connection: Screw-type terminals
- Auxiliary Contacts: 2 NC
- Number of Poles for Main Current Circuit: 3
- Operating Temperature: -25 to +60 degree Celsius
- Degree of Protection: IP20
- Dimensions: 68 x 90 x 73 mm
