Siemens 3RG4602-7AG01 Proximity Switch

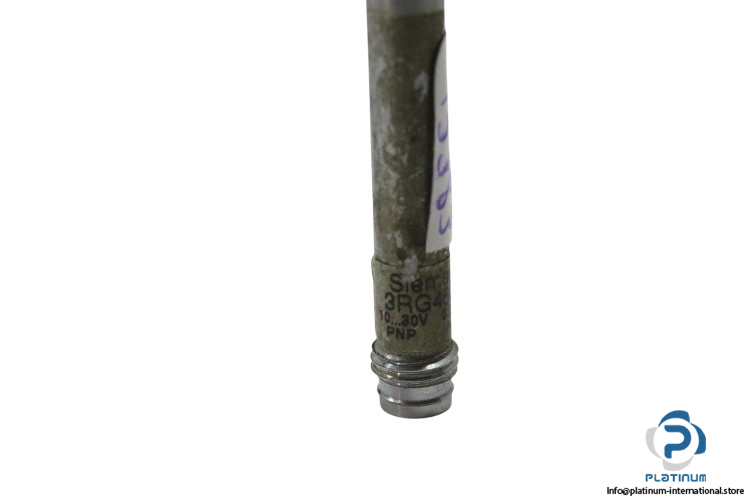

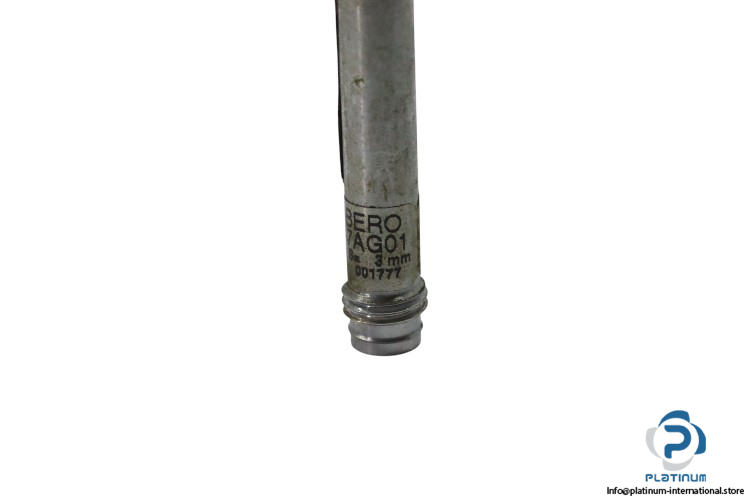

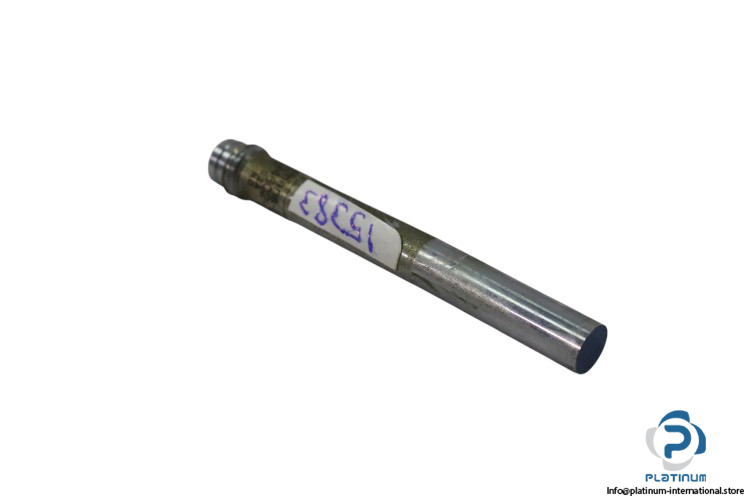

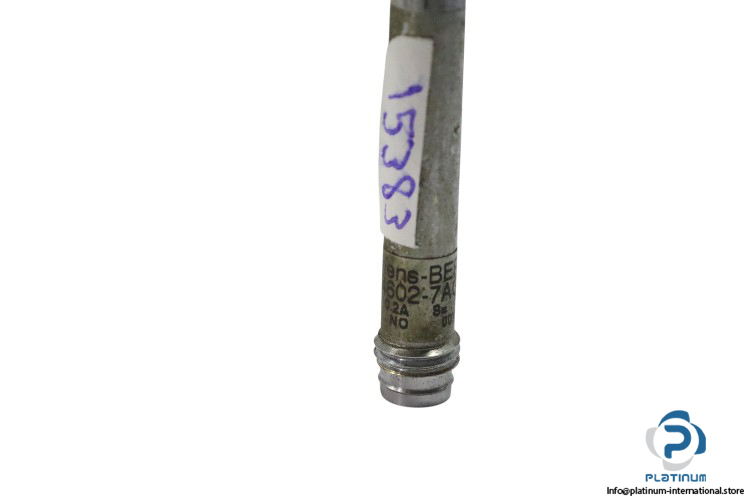

SIEMENS 3RG4602-7AG01 Proximity Switch

The SIEMENS 3RG4602-7AG01 is a durable and precise proximity switch ideal for automation and industrial sensing applications. Featuring a PNP electrical design and NO output configuration, it offers dependable object detection in demanding environments with IP67 protection.

Manufacturer: SIEMENS

Type: Proximity Switch

MRN: 3RG4602-7AG01

Technical Data:

• Operating Voltage Range: 10 / 30 V DC
• Rated Operational Current: 0.2 A
• Electrical Design: PNP
• Sensing Distance: 3 mm
• Output Configuration: Normally Open (NO)
• Connector Type: Cable, 3-wires
• Housing: Cylindrical
• Housing Material: Nickel-Plated Brass
• Protection Degree: IP67
• Mounting: Quasi Flush
