Siemens 3RQ3118-2AM00 Output Coupler With Plug-IN Relay
Ausgangskoppler mit Relais Siemens SIRIUS Ausgangskoppler mit Steckrelais, 24 V DC Versorgung, Nennstrom 6 A, IP20 Schutz, und federbelastete Klemmen für sichere Verbindungen in Automatisierungssystemen.

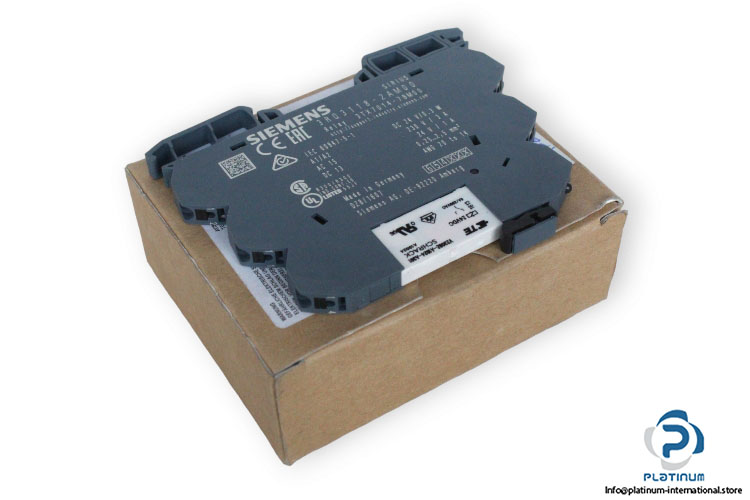

SIEMENS SIRIUS 3RQ31182AM00 OUTPUT COUPLER WITH PLUG-IN RELAY
The Siemens SIRIUS 3RQ31182AM00 output coupler with plug-in relay ensures reliable signal interfacing in control systems. Designed with robust components and a compact form, it provides efficient operation, fast switching times, and secure electrical connections for industrial automation applications.
Manufacturer: Siemens
Brand Name: SIRIUS
Type: Output Coupler with Plug-In Relay
Model: 3RQ31182AM00
Relay: 3TX7014-7BM00
| Control Supply Voltage | 24 V DC |
| Rated Thermal Current | 6 A |
| Frequency | 50 / 60 Hz |
| ON-OFF Time Delay | 12-13 ms |
| Contact | 1 Changeover (CO) |
| Operational Voltage of Auxiliary Contacts | AC-15: 230 V, DC-13: 24 V |
| Operational Current of Auxiliary Contacts | AC-15: 3 A, DC-13: 1 A |
| Electrical Connection Type | Spring-Loaded Terminals (Push-In) |
| Protection Class | IP20 |
| Temperature Range | -25 / 60 °C |
| Dimensions | 93 x 6.2 x 76 mm |
