Siemens 3RT1015-1AB02 Power Contactor
Neu
Auf Lager1 EinheitVersandbereit
Power Contactor
SIEMENS SIRIUS power contactor, size S00, with 24 V AC coil and 7 A AC-3 current rating, designed for reliable motor and load switching in industrial control systems.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

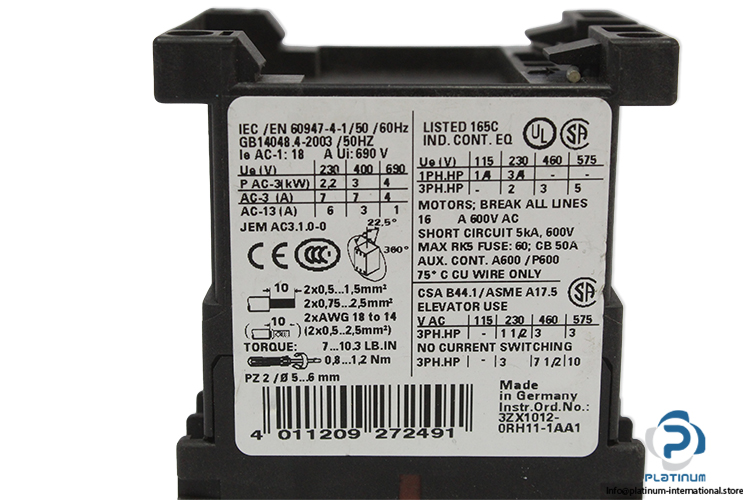

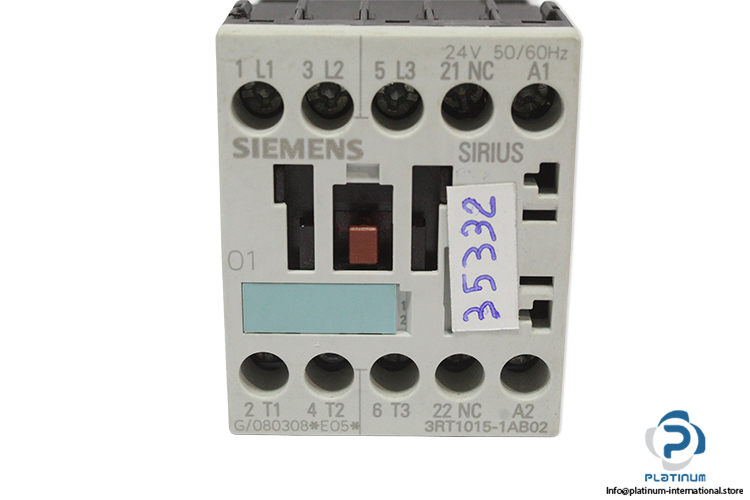

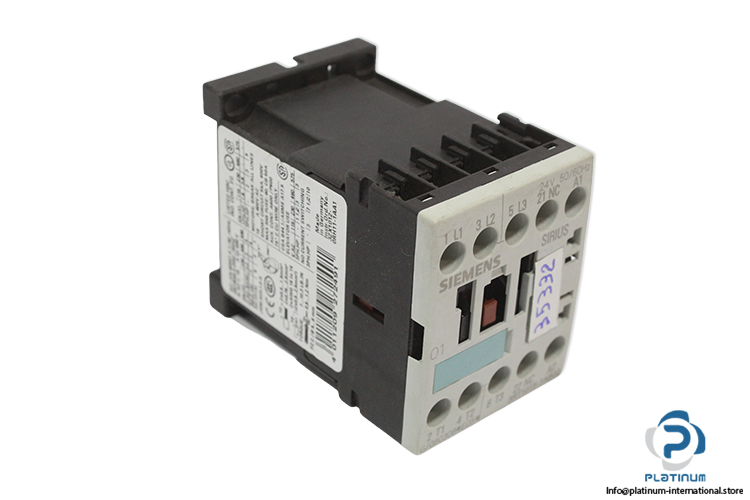

SIEMENS 3RT1015-1AB02 Power Contactor
The SIEMENS 3RT10151AB02 power contactor from the SIRIUS range is designed for reliable switching and control of electric motors and power circuits. Its compact S00 size, efficient coil design, and robust construction make it suitable for a wide range of industrial control applications.
Manufacturer: SIEMENS
Type: Power Contactor
Model: 3RT1015-1AB02
| Size | S00 |
| Range | SIRIUS |
| Series | 3RT10 |
| Coil Voltage | 24 V AC |
| Rated Operational Voltage | 600 V AC |
| Rated Operational Current (AC-3) | 7 A |
| Frequency | 50 / 60 Hz |
| Power Loss | 0.7 W |
| Power Rating (AC-3) at 230 V AC | 2.2 kW |
| Power Rating (AC-3) at 400 V AC | 3 kW |
| Power Rating (AC-3) at 690 V AC | 4 kW |
| Number of Poles | 3-Pole |
| Main Contacts | 3 Normally Open (NO) |
| Auxiliary Contact | 1 Normally Closed (NC) |
| Protection Class | IP20 |
| Operating Temperature | -25 / 60 °C |
| Dimensions (W x H x D) | 57.5 x 45 x 72 mm |
