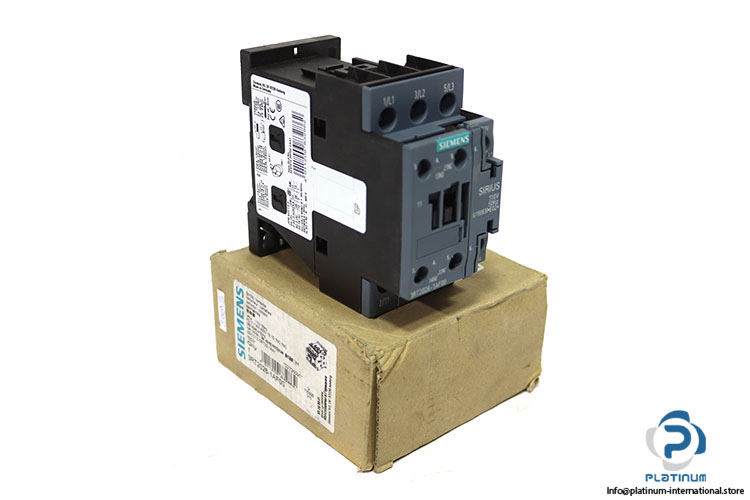

Siemens 3RT2026-1AF00 Power Contactor
Neu
Auf Lager1 EinheitVersandbereit
POWER CONTACTOR
The Siemens 3RT2026-1AF00 (SIRIUS 3RT2, size S0) is a 3‘pole power contactor for motor control up to 11 kW at 400 V, featuring 110 V AC coil (50 Hz), 1 NO + 1 NC auxiliaries, and IP20 front protection.11:11“1033RT23RT2026-1AF0040050660690ACATAuxiliarycoilContactorControlENHzIndustrialInsulationIP20kVkWmotorNCNOPolePowerProtectionResistanceS0SiemensSiriusSizeSurgeVvoltage
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
SIEMENS 3RT2026-1AF00 POWER CONTACTOR
The Siemens 3RT2026-1AF00 is a compact SIRIUS series power contactor (size S0) engineered for reliable motor switching and control up to 11 kW at 400 V, with robust insulation and surge resistance for industrial environments.
Manufacturer: SIEMENS
Type: Power Contactor
MRN: 3RT2026-1AF00
Order No.: 3ZX1012-0RT22-1AA1
Ref No.: 0272609C
Product Brand Name: SIRIUS
Designation: 3RT2
Size of Contactor: S0
| Insulation Voltage (Main Circuit, Pollution Degree 3) | 690 V |
| Surge Voltage Resistance (Main Circuit) | 6 kV |
| Max. Permissible Voltage For Protective Separation (Coil †” Main Contacts, EN 60947-1) | 400 V |
| Ambient Temperature (Operation) | -25 / +60 °C |
| Main Current Circuit Poles | 3 |
| Operating Voltage (AC-3) | up to 690 V |
| Operating Voltage (AC-3e) | up to 690 V |
| Operating Power at 400 V | 11 kW |
| Control Supply Voltage (AC 50 Hz) | 110 V |
| Auxiliary Contacts | 1 NO + 1 NC |
| Protection Class (Front, IEC 60529) | IP20 |
| Dimensions (H × W × D) | 85 mm × 45 mm × 97 mm |
