Protection & Control Circuit Breakers

Siemens 3RV2011-1DA10 Circuit Breaker

Name: SIEMENS 3RV2011-1DA10 CIRCUIT BREAKER
SKU: 1060653
Availability: LimitedAvailability

siemens-3RV2011-1DA10-circuit-breaker-(used)

siemens-3RV2011-1DA10-circuit-breaker-(used)-1

siemens-3RV2011-1DA10-circuit-breaker-(used)-2

siemens-3RV2011-1DA10-circuit-breaker-(used)-3

siemens-3RV2011-1DA10-circuit-breaker-(used)-4

Gebraucht

Auf Lager5 EinheitenVersandbereit

Circuit Breaker

The Siemens 3RV2011-1DA10 SIRIUS circuit breaker features a compact S00 size, 3-pole design, 690V insulation voltage, and supports up to 3.2 A for industrial use.

Hersteller

SIEMENS

SKU

1060653

Kategorie

Circuit Breakers

Zustand

Gebraucht

3-Pole 3RV2 3RV2011 3RV2011-1DA10 690V Breaker Circuit Device motor Protection S00 Series Siemens Sirius Size

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

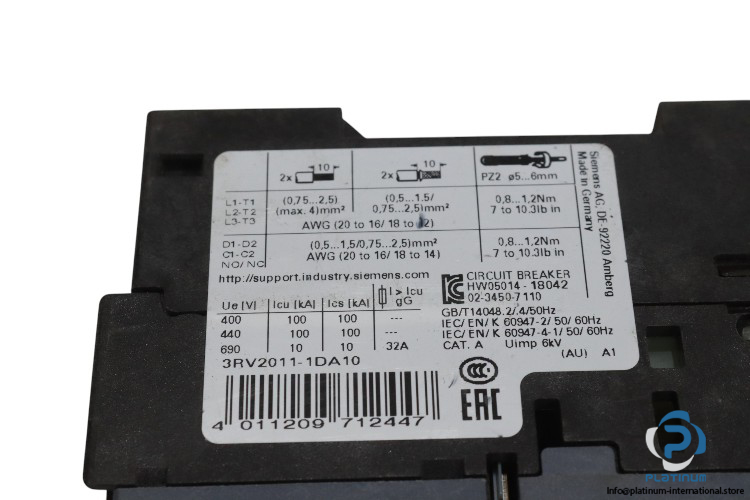

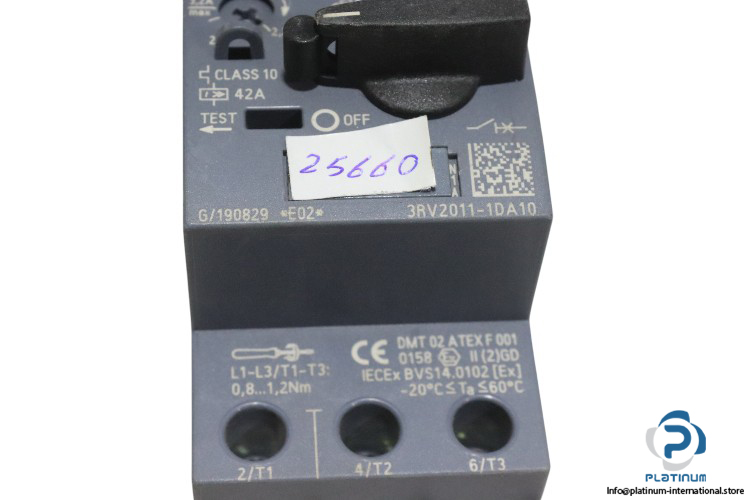

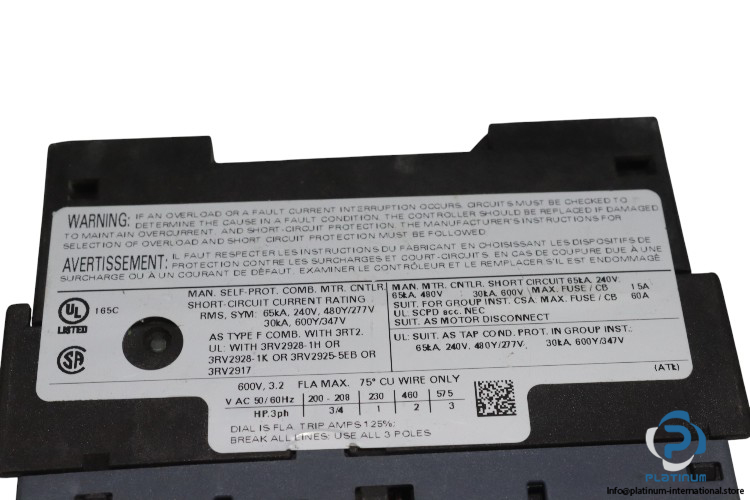

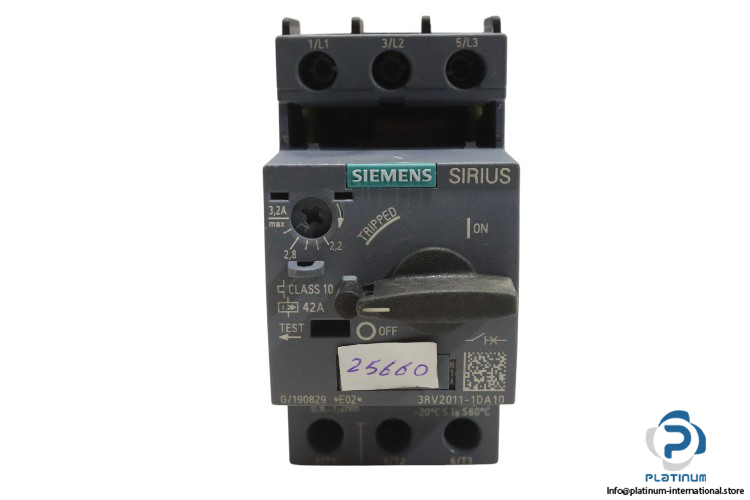

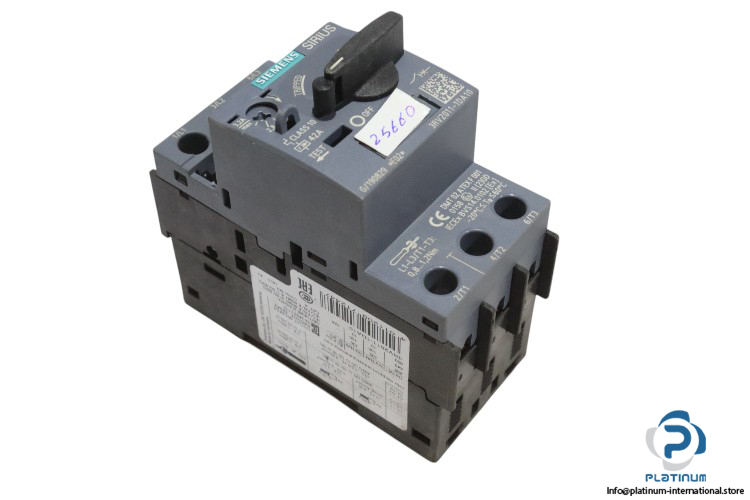

Siemens 3RV2011-1DA10 Circuit Breaker

The Siemens 3RV2011-1DA10 is a compact 3-pole circuit breaker from the SIRIUS series, designed for effective motor protection and circuit isolation in industrial applications. With high insulation voltage, wide operating temperature range, and S00 frame size, it delivers efficient performance in demanding environments.

Manufacturer: Siemens

Type: Circuit Breaker

Model: 3RV2011-1DA10

Product Brand Name	SIRIUS
Product Type Designation	3RV2
Size of the Circuit-Breaker	S00
Power Loss at AC in Hot Operating State	7.25 W
Insulation Voltage	690 V
Ambient Temperature	-20 ... 60 °C
Number of Poles	3
Operating Voltage	20 ... 690 V
Operational Current	3.2 A
Dimensions (H x W x D)	97 x 45 x 96.9 mm
