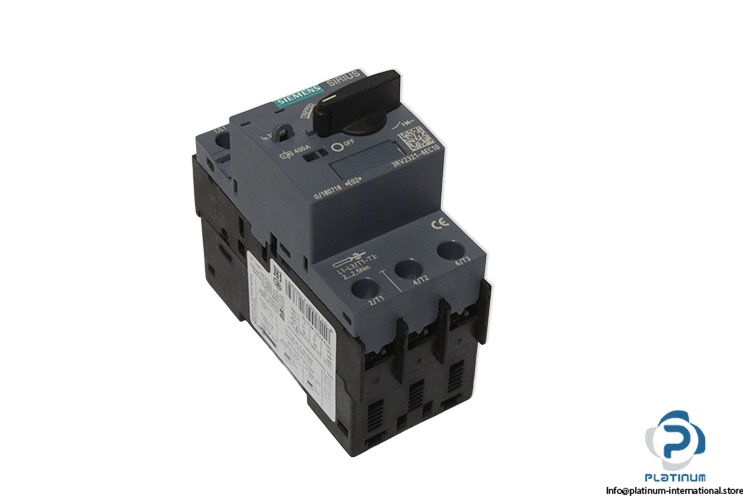

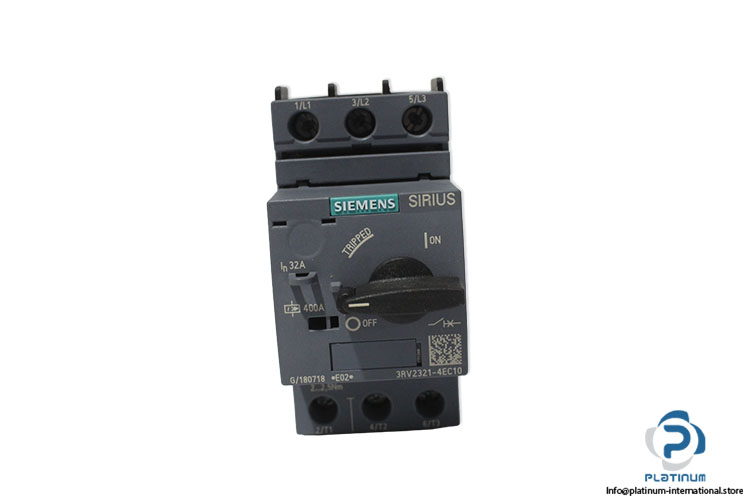

Siemens 3RV2321-4EC10 Circuit Breaker
Neu
Auf Lager1 EinheitVersandbereit
44,44$
Circuit Breaker SIEMENS SIRIUS 3RV2 circuit breaker rated at 32 A and 690 V AC, designed for reliable industrial electrical and motor protection applications.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
| Brand Name | SIRIUS |
| Designation | 3RV2 |
| Size | S0 |
| Operating Voltage | 690 V AC |
| Operational Current | 32 A |
| Frequency | 50 … 60 Hz |
| Power Loss | 13.25 / 4.4 W |
| Power AC-3 (400V) | 15 kW |
| Power (460/480V) | 20 HP |
| Insulation Voltage | 690 V AC |
| Rated Impulse Voltage Uimp | 6 kV |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 25 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | 25 kA |
| Protection Class | IP20 |
| Operation Temperature | -20 … 60 °C |
| Dimensions | 97 x 45 x 97 mm |
| Stock Key | CON003 |
| Condition | New |
| SKU | 1103930 |
| Weight | 0,37 |
