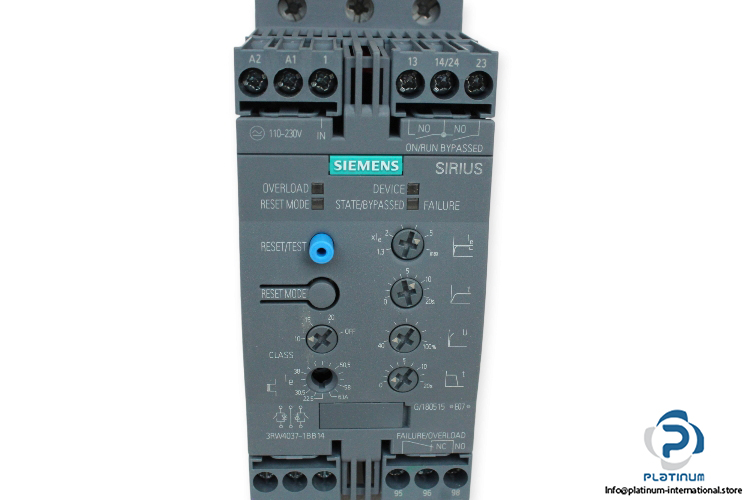

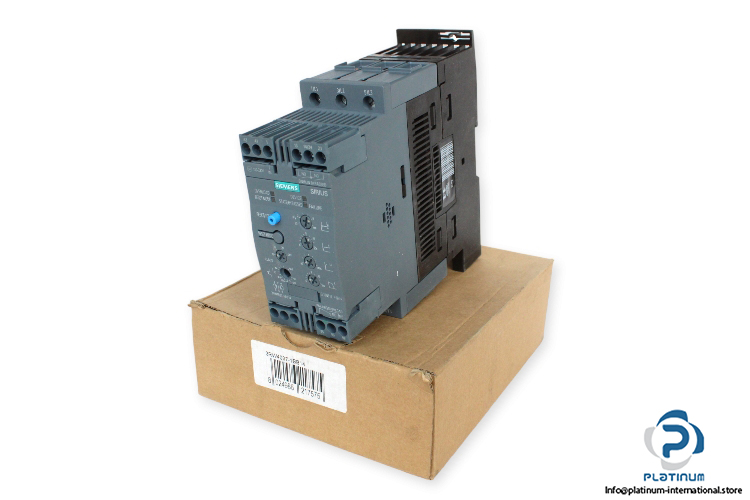

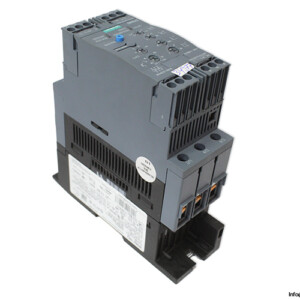

Siemens 3RW4037-1BB14 Soft Starter
Sanftstarter Siemens AC Halbleiter-Sanftstarter, entwickelt für sanften Motorstart und -stopp, reduziert mechanische Belastungen und elektrische Spitzenlasten in Industriemotoren. Empfehlung: Ideale Wahl zum Schutz von Motoren in Pumpen, Kompressoren und Fördersystemen bei gleichzeitiger Verlängerung der Lebensdauer der Ausrüstung.
Siemens 3RW40 37-1BB14 Soft Starter
The Siemens 3RW40 37-1BB14 Soft Starter is a high-performance AC semiconductor motor starter designed to ensure smooth motor starting and stopping while reducing mechanical stress and electrical peak loads. This soft starter is suitable for industrial motors used in pumps, compressors, conveyors, and automation systems where controlled acceleration and protection of equipment are required.
Manufacturer: Siemens
Type: Soft Starter / AC Semiconductor Motor Starter
MNR: 3RW40 37-1BB14
EAN No.: 4 011209 692077

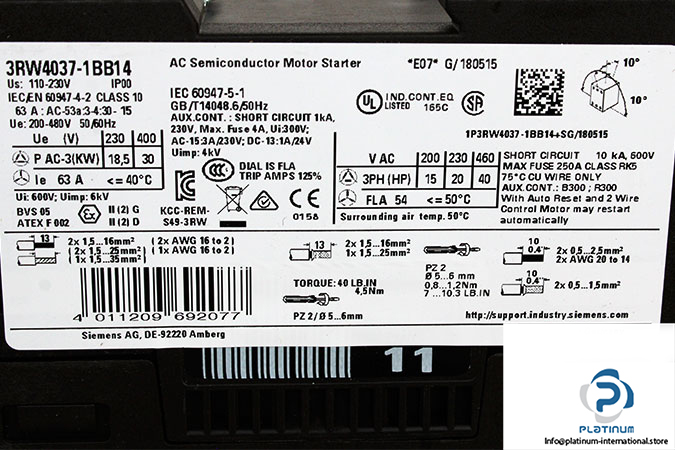

| Supply Voltage (Us) | 110-230 V AC |
| Rated Voltage (Ue) | 200-480 V AC |
| Insulation Voltage Rated Value | 600 V |
| Rated Impulse Voltage | 6 kV |
| Frequency | 50/60 Hz |
| Operational Current at 40°C (Rated Value) | 63 A |
| Operational Current at 50°C (Rated Value) | 58 A |
| Operational Current at 60°C (Rated Value) | 53 A |
| AUX. Contact Rating | Short Circuit 1kA, 230V, Max. Fuse 4A, Ui:300V; AC-15:3A/230V; DC-13:1A/24V; Uimp: 4kV |
| Power at 230 V | 18.5 kW |
| Power at 400 V | 30 kW |
| Ambient Temperature During Operation | -25 / 60 °C |
| Dimensions | 55 x 160 x 170 mm |
| Protection Class | IP00/20 |
| Standard | IEC 60947-5-1 / IEC EN 60947-4-2 |
| Class | 10 |
