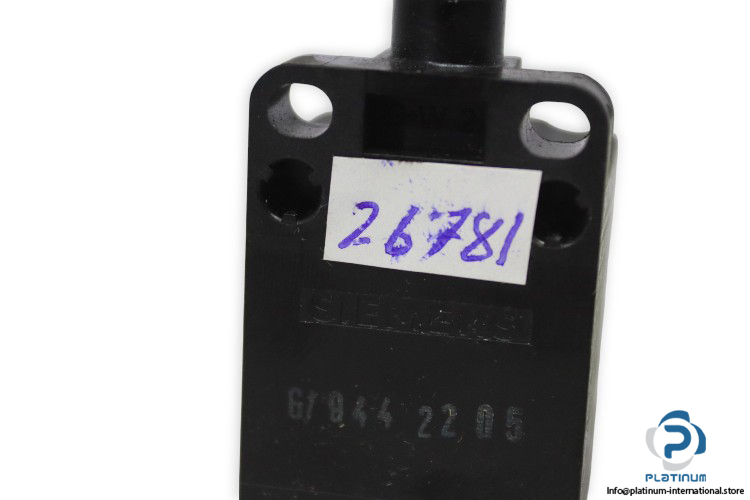

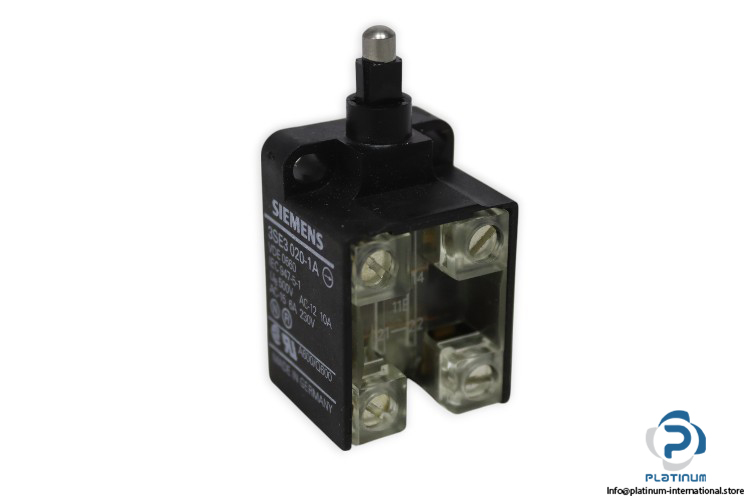

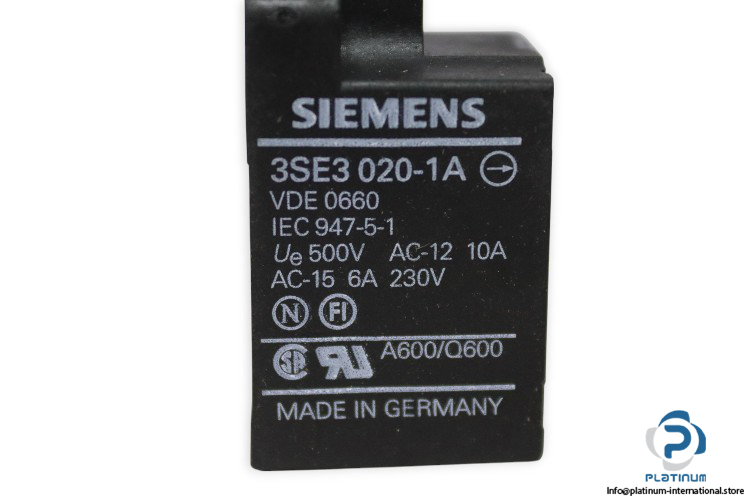

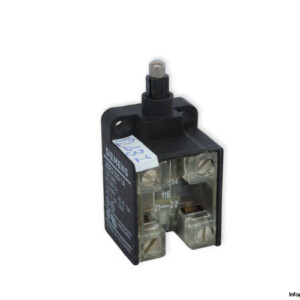

Siemens 3SE3 020-1A Position Switch
Neu
Auf Lager2 EinheitenVersandbereit
SIEMENS POSITION SWITCH
Reliable and compact Siemens position switch with 500 V AC rating, IP20 protection, and rounded plunger actuator.020-1A1NC1NO3SE3500VACAutomationControlHousingIndustrialIP20LimitMoldedPlasticPlungerPositionProtectionRoundedSiemensSwitch
Gebraucht
Auf Lager
Dieses Produkt ist auch als gebraucht erhältlich
Gebrauchte Version anzeigen →
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
SIEMENS 3SE3 020-1A POSITION SWITCH
The Siemens 3SE3 020-1A is a high-quality position switch engineered for industrial automation and mechanical applications. Designed for reliability, durability, and efficient performance in harsh environments.
Manufacturer: Siemens
Type: Position Switch
Model: 3SE3 020-1A
Rated Operational Current:
| Rated Operational Voltage | 500 V AC |
| AC-12 | 10 A |
| AC-15 | 230 V, 6 A |
| Rated Insulation Voltage | 500 V AC |
| Contact | 2 Poles (1 NO + 1 NC) |
| Material | Moulded Plastic |
| Actuating Element Design | Rounded Plunger |
| Protection Class | IP20 |
| Temperature Range | -30 / 65 °C |
| Switch Head Outer Diameter | 5 mm |
| Dimensions | 59.5 x 30 mm |
